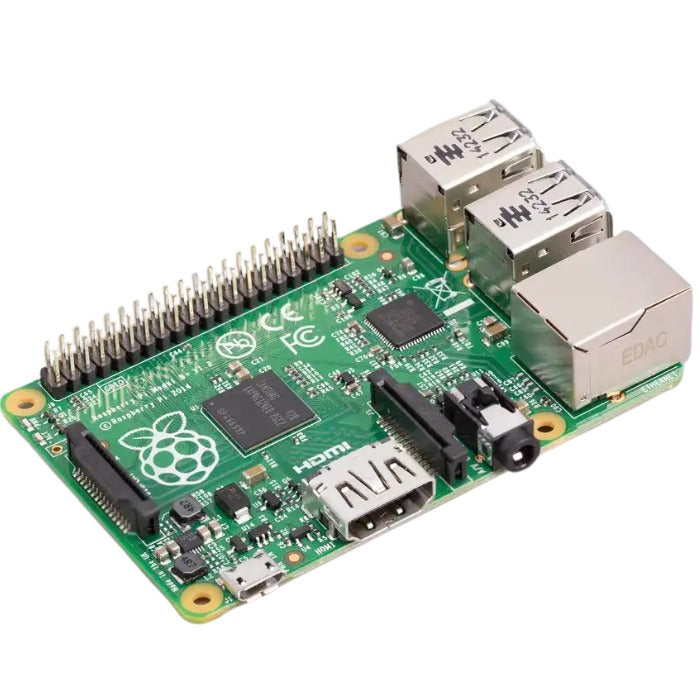

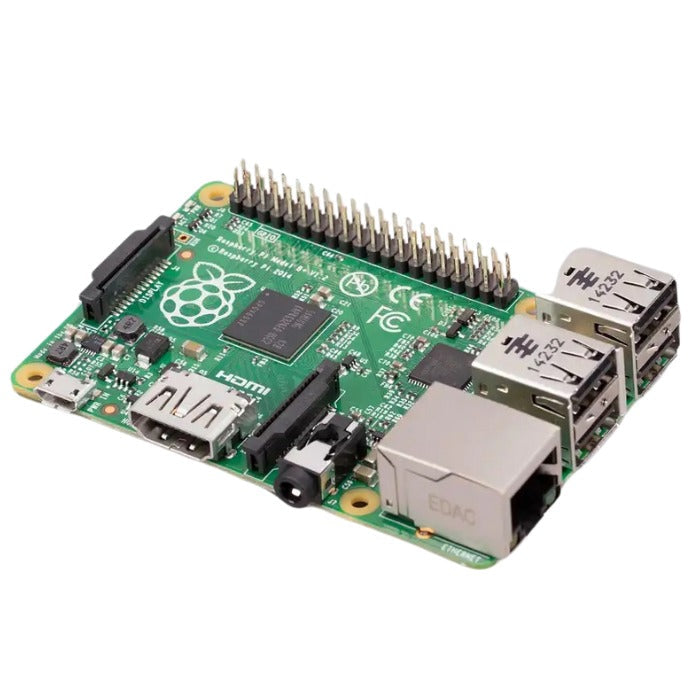

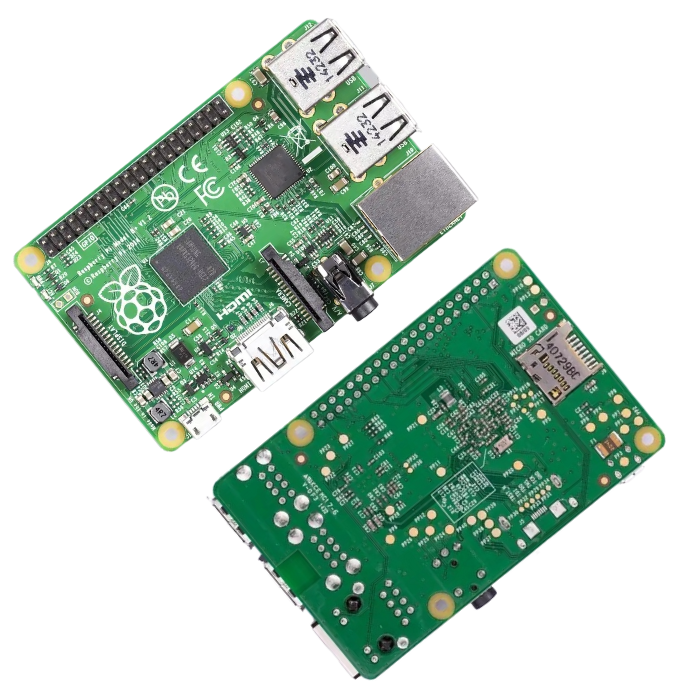

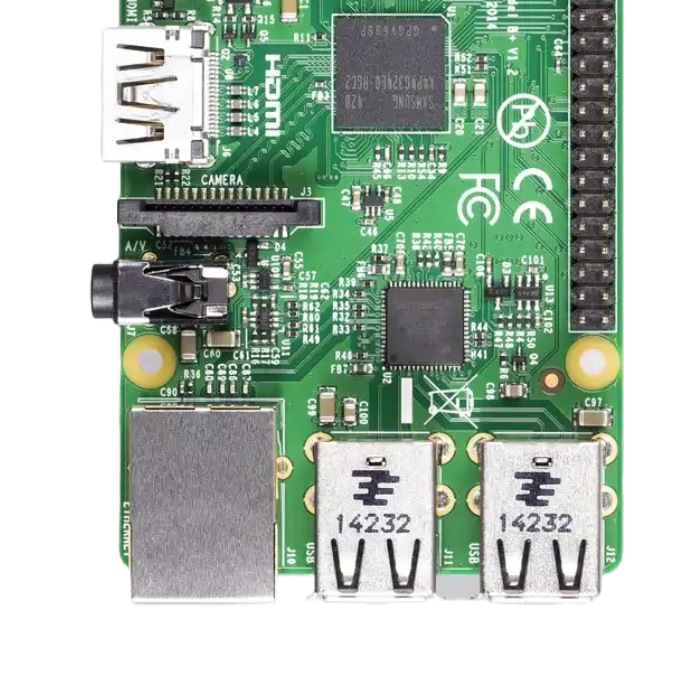

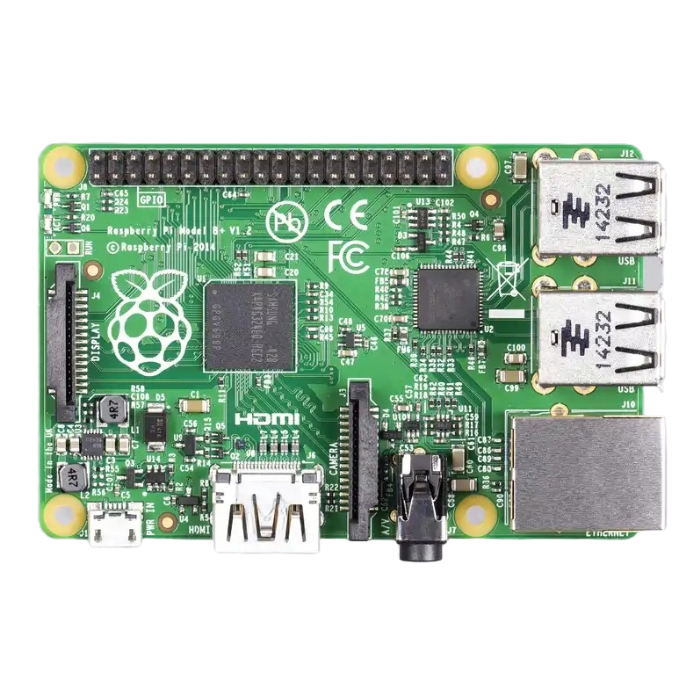

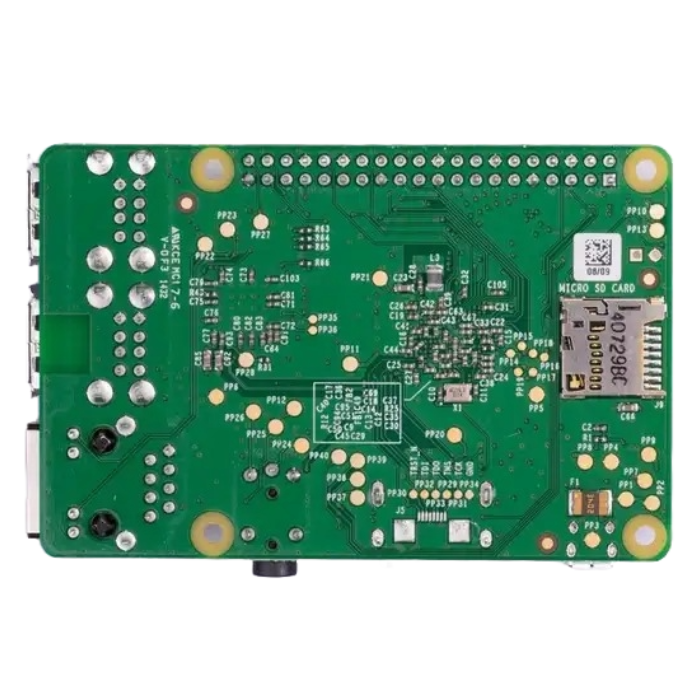

Official Raspberry Pi Model 1 B+

Official Raspberry Pi Model 1 B+

The Raspberry Pi Model 1 B+ is a more powerful version of the original Raspberry Pi, it's perfect for projects that require a bit more power and flexibility. It features a 700 MHz CPU and 512 MB of memory. Has four USB ports, an HDMI connector for connecting to a TV or monitor, and a unique 40-pin header for attaching sensors and other components. Also, It has a jack for audio and video output, as well as interfaces for connecting a camera or display screen.

This version of the Raspberry Pi is designed to be easier to use and more efficient. The USB ports are aligned with the edge of the board for a cleaner look, and it has a micro SD slot that’s simpler to handle than the older models.

It is ideal for long-term applications as It consumes less power. The sound quality has also increased, and the board's square mounting holes make installation simple. The Raspberry Pi Model B+ is an excellent choice for all of your projects and educational requirements.

Buy Raspberry Pi Model 1 B+ at the best price ever online from Robocraze, an authorized seller of Raspberry Pi in India.

Differences between Raspberry Pi Model B+ and Model B:

• GPIO Pins: Model B+ features 40 pins compared to Model B's 26 pins.

• USB Ports: The Model B+ has four USB ports, while only two ports on the Model B.

• SD Card Slot: The Model B+ has a push-push micro SD slot, which replaces the Model B's friction-fit SD slot.

• Ethernet: Both versions have 100 Base Ethernet, which ensures constant network performance.

• Power Consumption: Model B+ consumes 0.5 to 1W less power than Model B.

• Audio Quality: Unlike Model B, Model B+ includes a dedicated low-noise audio power supply.

• Form Factor: Model B+ includes aligned USB ports, composite video in the 3.5mm jack, and square mounting holes.

What is a Raspberry Pi?

Key Features:

• Delivers consistent performance for a wide range of computer tasks.

• Supports seamless multitasking and effective application management.

• Allows for the connection of various peripherals.

• Provides expanded connectivity for sensors, motors, and other electronic components.

• Allows for simple connection to HD screens for quality video output.

• Offers stable wired network connectivity for internet and LAN access.

• Supports both audio output and composite video output.

• Includes CSI for camera modules and DSI for connecting compatible display screens.

• Reduces power use by 0.5W to 1W with efficient switching regulators.

• Maintains compatibility with the first 26 pins of the previous Raspberry Pi models.

Package Includes:

1 x Raspberry Pi Model 1 B+

Raspberry Pi Model B+ Specifications
