Raspberry Pi Global Shutter Camera
Raspberry Pi Global Shutter Camera
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Compact size: 38 × 38 × 19.8mm (41g with adapter).
- Sony IMX296LQR-C sensor, 1.58MP resolution.
- 6.3mm sensor diagonal, 3.45μm × 3.45μm pixel size.
- RAW10 output for high-quality images.
- Adjustable back focus (12.5–22.4mm).
- Compatible with CS/C-Mount lenses (adapter included).
- Integrated IR cut filter.
- Includes 150mm ribbon cable, mount adapter, and screwdriver.
- 1/4”-20 tripod mount.
- Compliant with FCC, EMC, and RoHS.
- Production lasts until at least January 2032.

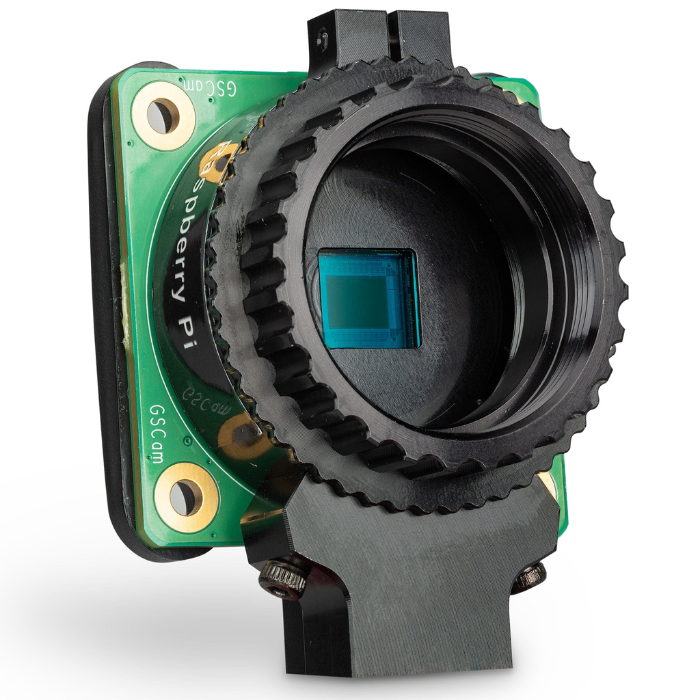

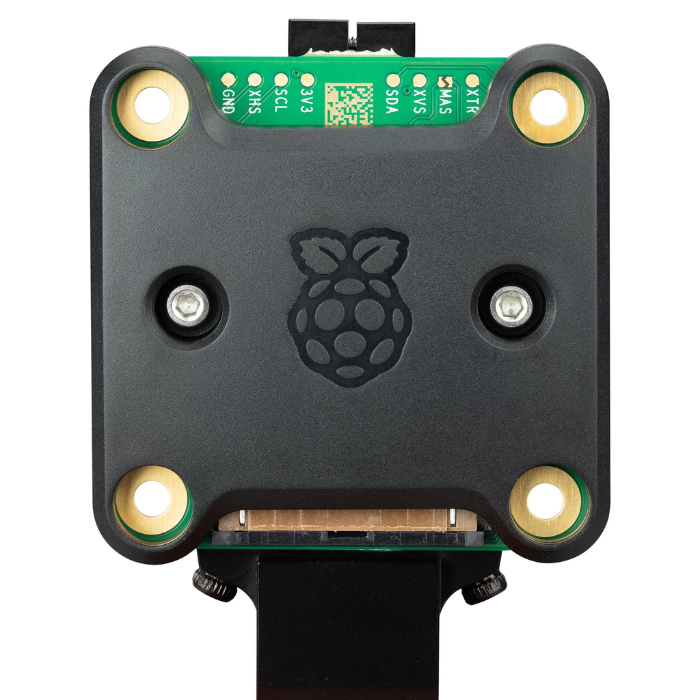

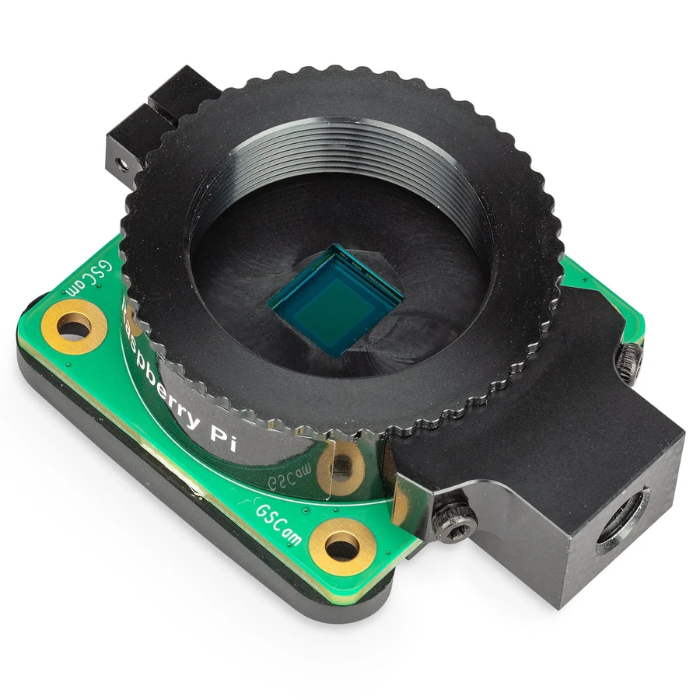

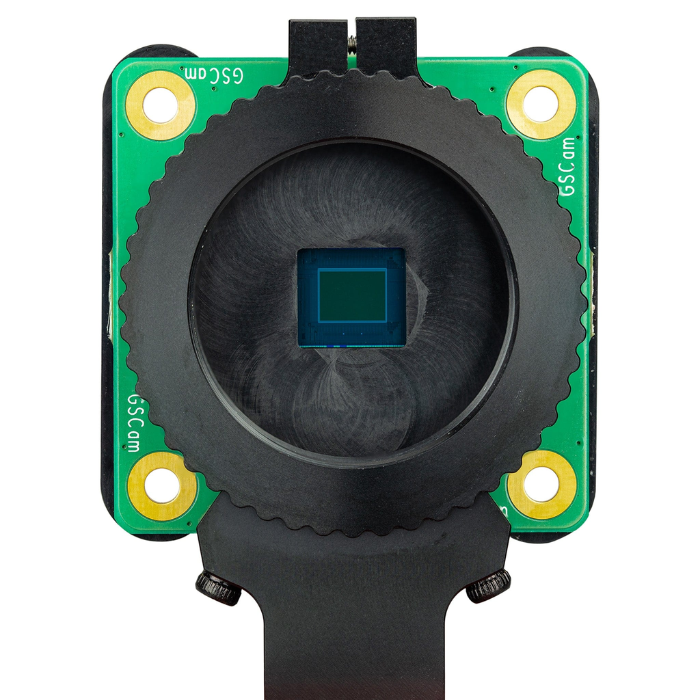

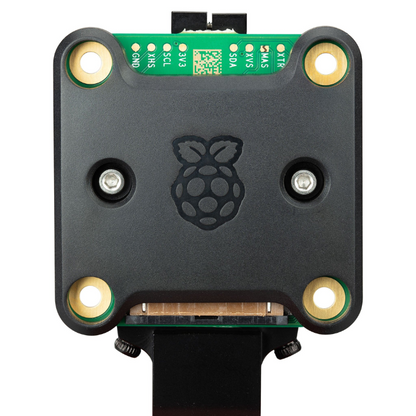

Raspberry Pi Global Shutter Camera
The Raspberry Pi Global Shutter Camera is a 1.6MP camera designed for fast motion capture without distortion. Ideal for high-speed photography and machine vision, it features a Sony IMX296 sensor with high light sensitivity and short exposure times (as low as 30μs).
It uses a C/CS-mount lens assembly, compatible with a wide range of lenses. With a lower resolution optimized for machine vision, it enables real-time image processing.
The camera includes a C- to CS-mount adapter, screwdriver, ribbon cable, and protective back cover. Compatible with any Raspberry Pi with a CSI connector.
Key Features
- 1.6MP camera with global shutter for fast motion capture.
- High light sensitivity with 3.45μm × 3.45μm pixels.
- Short exposure times (down to 30μs).
- Sony IMX296 sensor for high-speed photography.
- Compatible with C/CS-mount lenses.
- Includes adapter, screwdriver, ribbon cable, and back cover.
- Works with Raspberry Pi computers with a CSI connector.
Package Includes
- 1 x Official Raspberry Pi Global Shutter Camera
- 1 x C- to CS-mount adapter
- 1 x Screwdriver
Specifications
| Specification | Details |
|---|---|
| Form Factor | 38 × 38 × 19.8mm (29.5mm with adapter and dust cap) |
| Weight | 34g (41g with adapter and dust cap) |
| Sensor | Sony IMX296LQR-C |
| Resolution | 1.58 megapixels (colour) |
| Sensor Size | 6.3mm sensor diagonal |
| Pixel Size | 3.45μm × 3.45μm |
| Output | RAW10 |
| Back Focus Length | Adjustable (12.5–22.4mm) |
| Lens Standards | CS-Mount, C-Mount (C-CS adapter included) |
| IR Cut Filter | Integrated |
| Ribbon Cable Length | 150mm |
| Included Accessories | C-CS mount adapter, Screwdriver |
| Tripod Mount | 1/4”-20 |
| Compliance | FCC 47 CFR Part 15, Subpart B, Class B Digital Device, EMC 2014/30/EU, RoHS 2011/65/EU |
| Production Lifetime | Until at least January 2032 |
