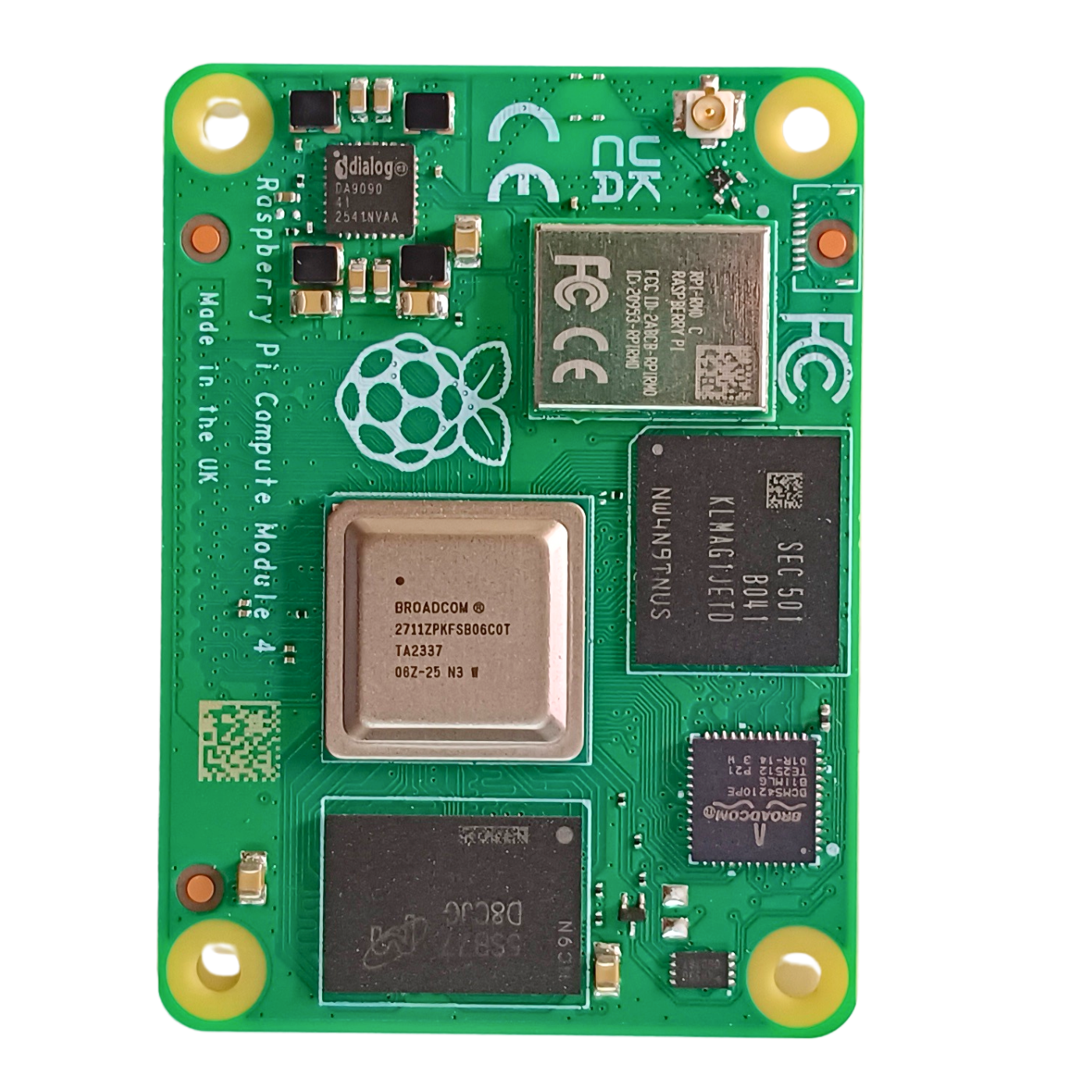

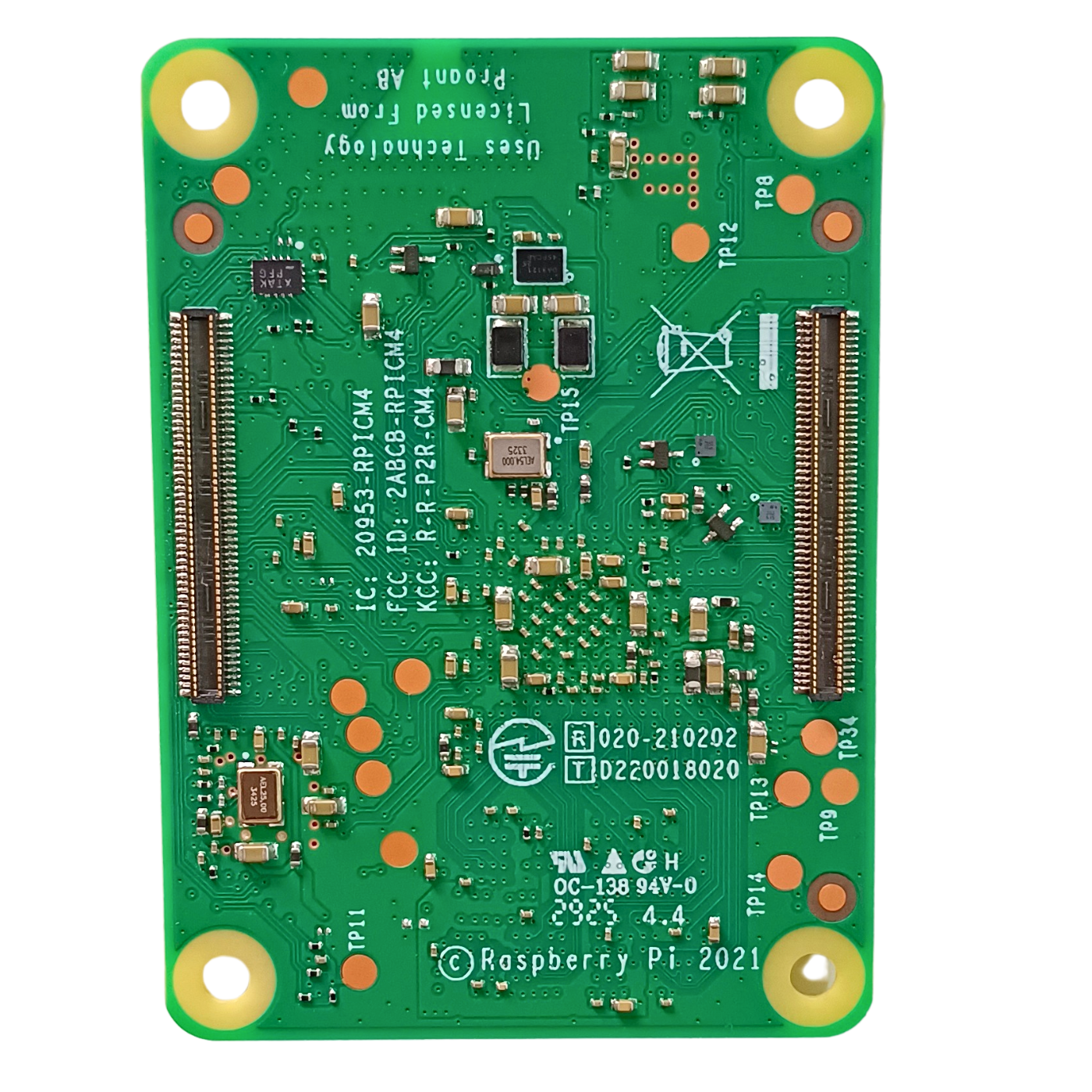

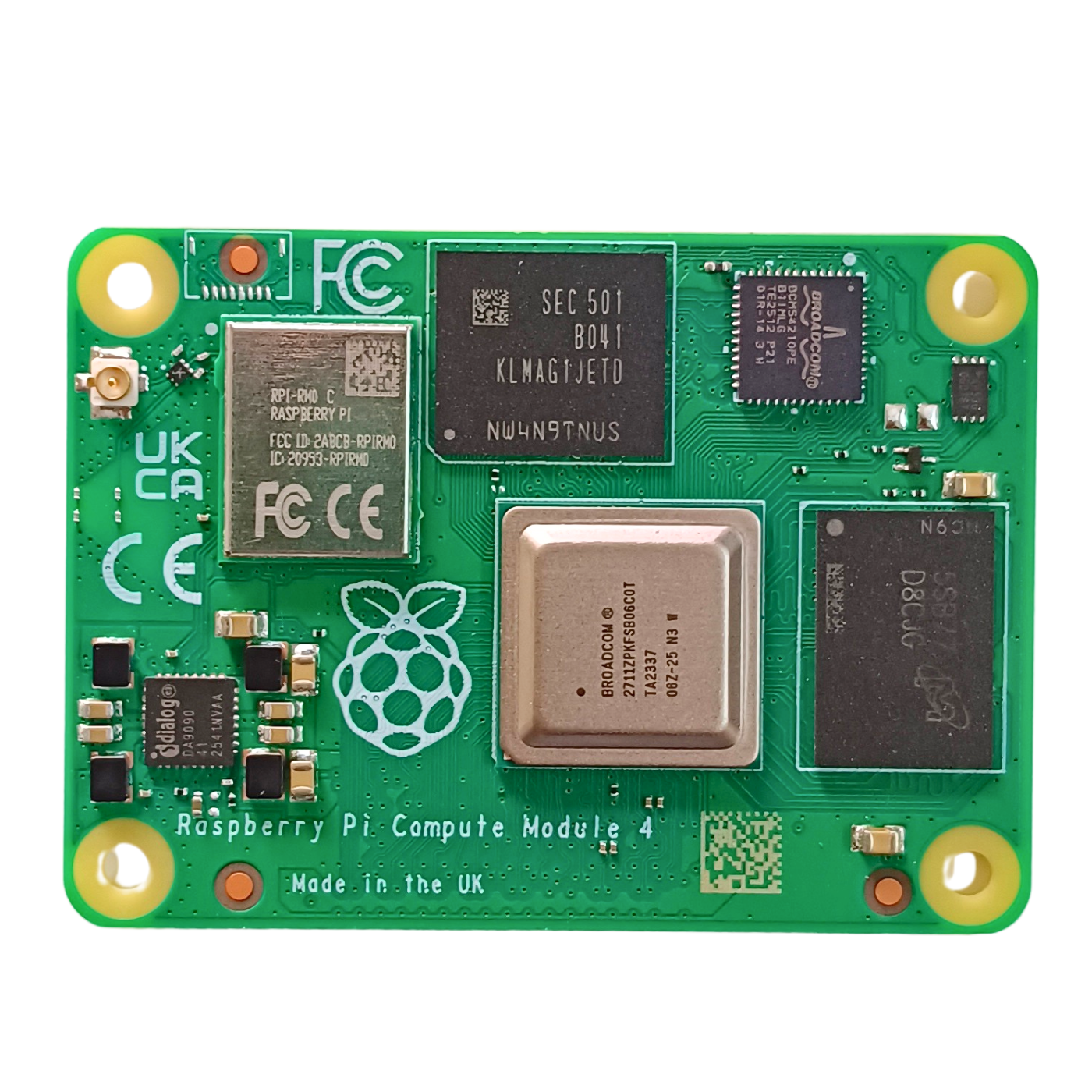

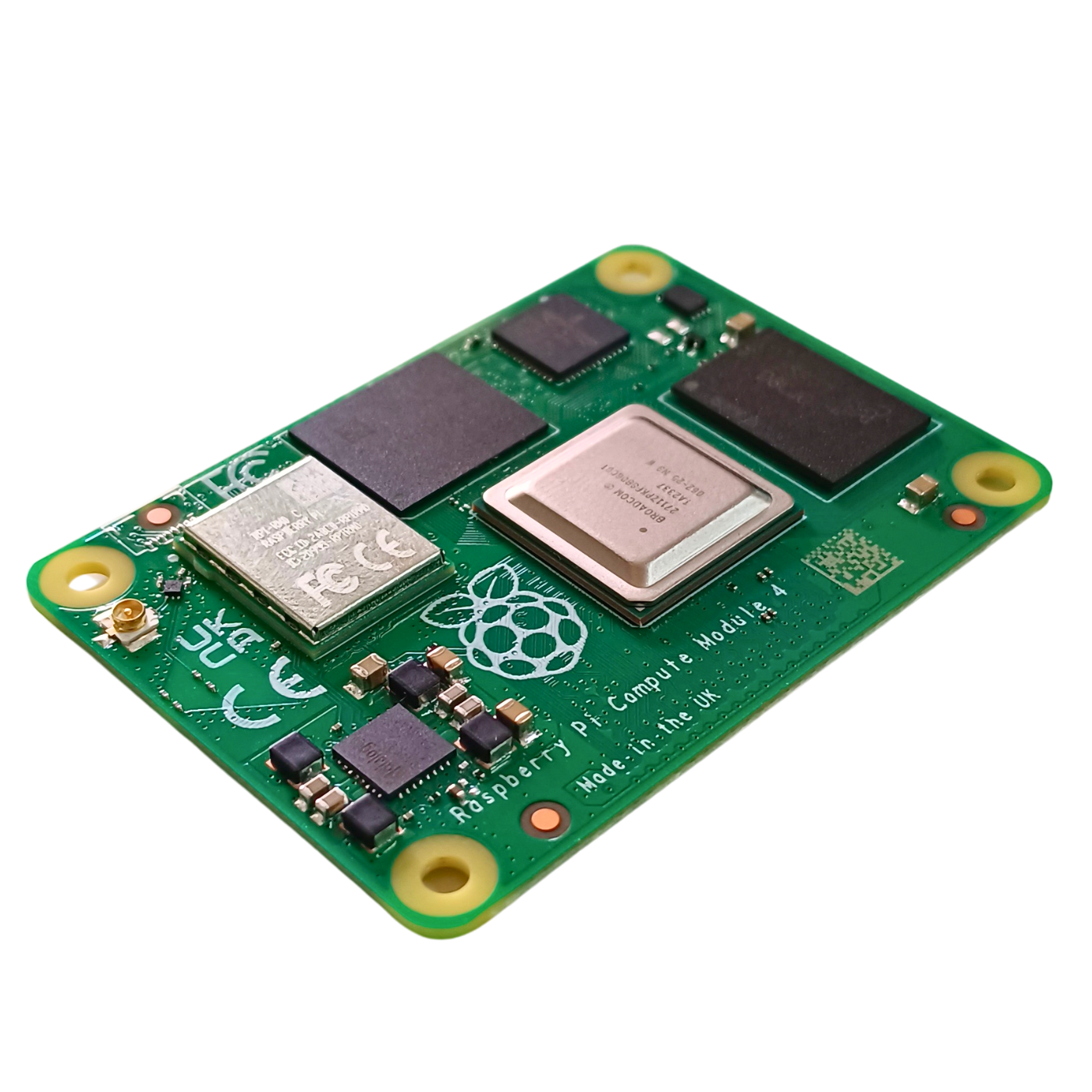

The Raspberry Pi Compute Module 4 (CM4104016) brings the proven performance of the Raspberry Pi 4 into a compact, industrial-grade form factor tailored for embedded systems. Built around a quad-core ARM Cortex-A72 processor, it delivers reliable processing power for demanding applications while maintaining low power consumption.
With support for dual video output and a broad selection of interfaces, the CM4 enables seamless integration into custom carrier boards and specialized hardware designs. Its small footprint and scalable architecture make it an excellent choice for automation, industrial control, IoT gateways, and edge computing solutions where performance, flexibility, and reliability are critical.
| Specification | Details |
|---|---|
| Processor | Broadcom BCM2711 quad-core ARM Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| Video Decode / Encode |
H.265 (HEVC) up to 4Kp60 decode H.264 up to 1080p60 decode, 1080p30 encode |
| Graphics | OpenGL ES 3.1, Vulkan 1.0 |
| Wireless Connectivity | Optional fully certified radio module |
| Wi-Fi | 2.4GHz & 5.0GHz IEEE 802.11 b/g/n/ac |
| Bluetooth | Bluetooth 5.0, BLE |
| Antenna Selection | On-board electronic switch for external or PCB trace antenna |
| Operating Temperature |
-20°C to +85°C (Standard variants) -40°C to +85°C (Extended temperature variants) |
