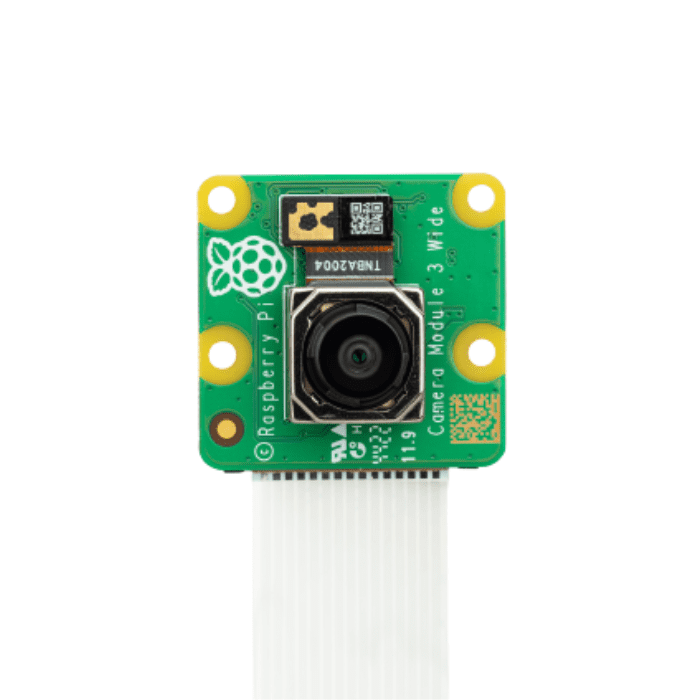

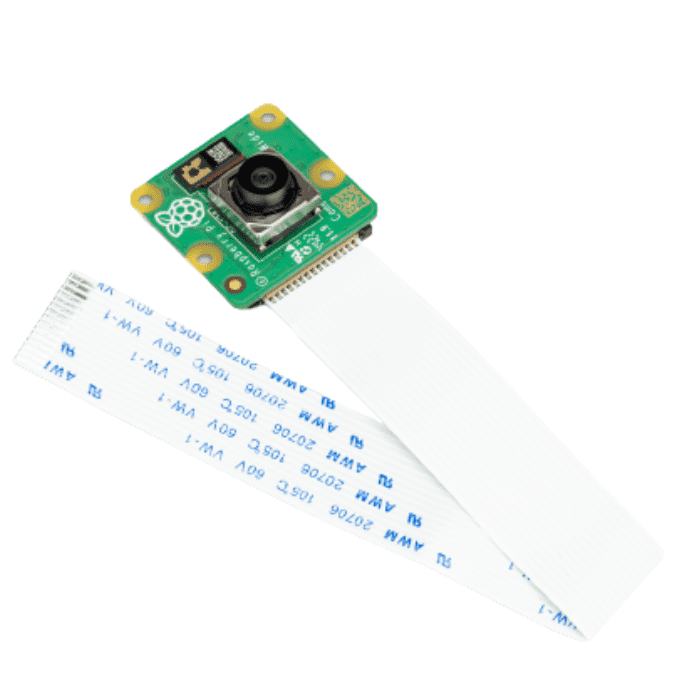

Raspberry Pi Camera Module 3 Wide
The Raspberry Pi Camera Module 3 Wide is the latest entry in Raspberry pi's mainstream camera line-up, and the successor to the enduringly popular Camera Module 2. Built around a 12-megapixel Sony IMX708 image sensor module.
Not sure which Camera Module 3 to choose? The standard version provides a 75° field of view, while the Wide version provides a 120° field of view. Choose the Wide version for larger scenes, robotics, security, and applications where a broader viewing angle is required.
Important Note for Raspberry Pi 5 Users:
The Raspberry Pi Camera Module 3 Wide does not work out of the box with the Raspberry Pi 5. The Pi 5 features a smaller 15-pin CSI connector, while this module ships with a standard 22-pin ribbon cable. To use this camera with a Pi 5, you must purchase a separate Raspberry Pi 5 Camera Cable (15-pin to 22-pin) (sold separately).
Technical Highlights: Powered by Sony IMX708
-
12MP Sony IMX708 Sensor: Delivers exceptional low-light sensitivity and crystal-clear 11.9-megapixel resolution, a massive upgrade over the older Camera Module 2.
-
Phase-Detection Autofocus (PDAF): Achieves fast, accurate, and reliable focusing, making it ideal for dynamic computer vision, robotics, and QR-code scanning projects.
-
High Dynamic Range (HDR): Captures balanced exposures in challenging lighting conditions, preventing blown-out highlights or crushed shadows in both photos and 1080p50 video.
Features:
- Wide-Angle Lens: 120-degree field of view for broad captures.
- High resolution, crystal-clear imagery for projects.
- Easy Integration: Plug and play with Raspberry Pi boards.
- Professional-grade, suitable for both amateur and commercial purposes.
Applications:
-
Security cameras
-
Home automation
-
Computer vision projects
-
Time-lapse photography
-
Streaming video
- Robotics
Raspberry Pi Camera Module 3: Standard vs. Wide vs. NoIR
Not sure which Raspberry Pi Camera Module 3 is right for your project? Use this quick comparison to choose the best fit:
| Feature |
Standard |
Wide (This Product) |
NoIR |
| Field of View |
75° |
120° (Ultra-Wide) |
75° or 120° |
| Best For |
General purpose, portraits |
Robotics, security, tight spaces |
Night vision, infrared projects |
| IR Filter |
Yes |
Yes |
No (Allows IR light) |
All Camera Module 3 variants feature the 12MP Sony IMX708 sensor, Phase Detection Autofocus (PDAF), and HDR support.
