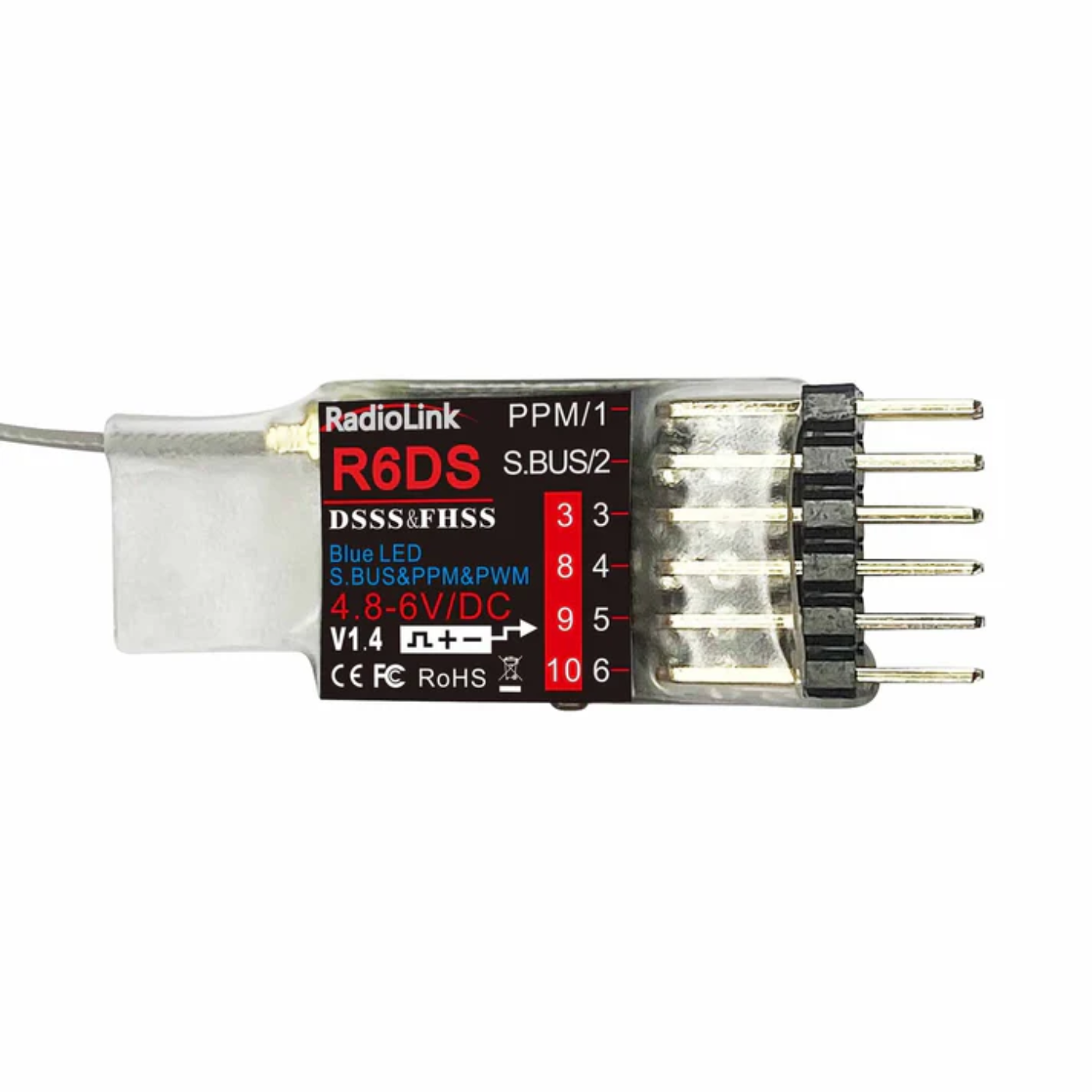

Radiolink R6DS 6/10 Channels RC Receiver 2.4GHz
The Radiolink R6DS 2.4GHz RC Receiver is a reliable and compact solution for drone and fixed-wing airplane pilots. This high-performance 2.4 GHz RC Receiver supports up to 6/10 Channels RC Receiver modes using SBUS, PWM, or PPM, giving you the flexibility to control various aircraft models. It is compatible with Radiolink transmitters like AT9S, AT10, AT9S Pro, and AT10II, making setup quick and easy.
With strong anti-interference technology and a control range of up to 600 meters, the R6DS ensures stable and precise signal transmission. Its fast response time of 3 milliseconds helps you maintain full control in any flying condition. The receiver also includes protection against reverse polarity, making it safe and user-friendly.
Features
-
Excellent Anti-Interference: The Radiolink R6DS uses DSSS FHSS hybrid technology with a pseudo-random algorithm, giving it strong anti-interference ability for stable control even in busy signal environments.
-

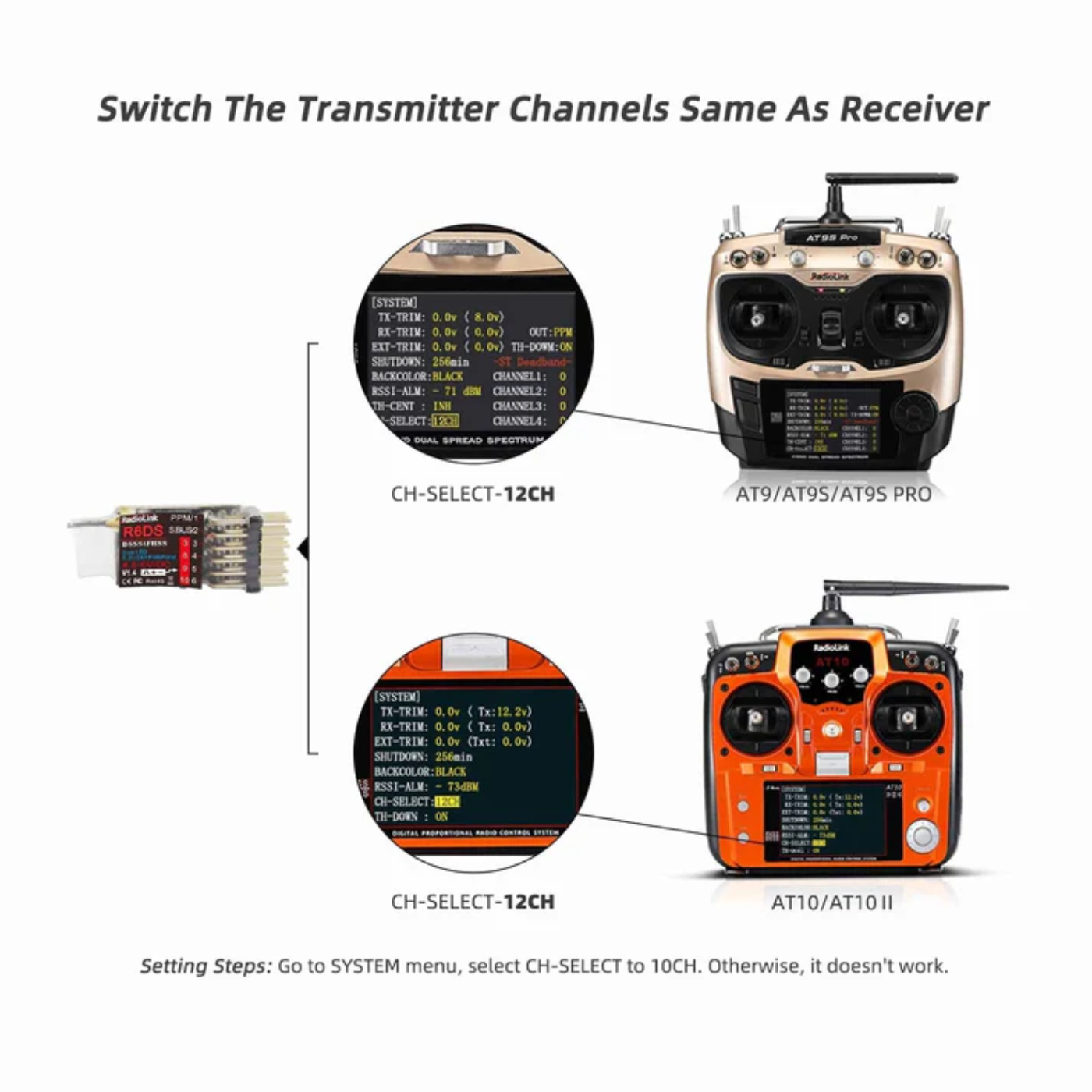

6/10 Channels Support: It supports PWM, PPM, and SBUS signal outputs with up to 10 channels, making it perfect for most drones, airplanes, and fixed-wing models. When using the AT10 or AT10II transmitter, make sure the SYSTEM CH is set to 10 channels for best performance.
-
Fast Response Time: With a high resolution of 4096 and a signal stability of 0.5 microseconds, the receiver provides fast and smooth communication between the transmitter and aircraft, ensuring low latency control.
-
Easy Binding Process: No need for special bind plugs or complicated settings. Simply press the bind button for 1 second after powering on both the receiver and transmitter to pair them easily.
-
Anti-Polarity Protection: The receiver is built with reverse polarity protection, so it won’t get damaged if the power cables are connected the wrong way. This makes installation safer and hassle-free.
1. How to connect the Radiolink R6DS to a drone or RC transmitter?
First, bind the R6DS to your compatible Radiolink transmitter by initiating bind mode on the transmitter and powering on the receiver while holding the bind button. Once the LED turns solid, the 2.4GHz RC receiver is paired and ready for use. This ensures a secure, low-latency connection for your drone, car, or boat. Always perform binding in an area free from RF interference for best results.
2. How to use the R6DS as a 6 channel RC receiver?
Configure the R6DS in PWM mode by connecting each channel’s signal wire to your flight controller or receiver module. As a 6 channel RC receiver, it delivers individual outputs for throttle, pitch, roll, yaw, and two auxiliary functions. This setup provides precise, independent control over servos, ESCs, or other actuators in your RC model. Ensure power and ground are properly connected across all channels.
3. How to enable SBUS mode on the Radiolink R6DS receiver?
To use SBUS, connect the signal output of the R6DS receiver to the SBUS input on your flight controller, observing correct polarity. Then, switch the receiver to SBUS mode using your transmitter’s configuration menu or by shorting designated pins as per the manual. This SBUS / PPM / PWM receiver will now transmit serial data at high speed, reducing wiring complexity and improving signal efficiency for advanced drone builds.
4. How to bind the R6DS receiver to a Radiolink transmitter?
Press and hold the bind button on the R6DS receiver, then power it on. Simultaneously, activate bind mode on your Radiolink transmitter through its system menu. The receiver’s LED will flash during pairing and remain solid when the 2.4GHz RC receiver is successfully bound. This secure link prevents signal conflicts and ensures reliable control across multiple models.
5. How to use the R6DS receiver for drones with flight controllers?
Connect the R6DS receiver to your flight controller using SBUS or PPM for a clean, low-latency interface. This RC receiver for drones consolidates all channel data into a single serial stream, minimizing wiring and reducing electrical noise. Configure the flight controller to recognize the input protocol and map channels correctly. The result is smooth, responsive control essential for stable flight and acro maneuvers.

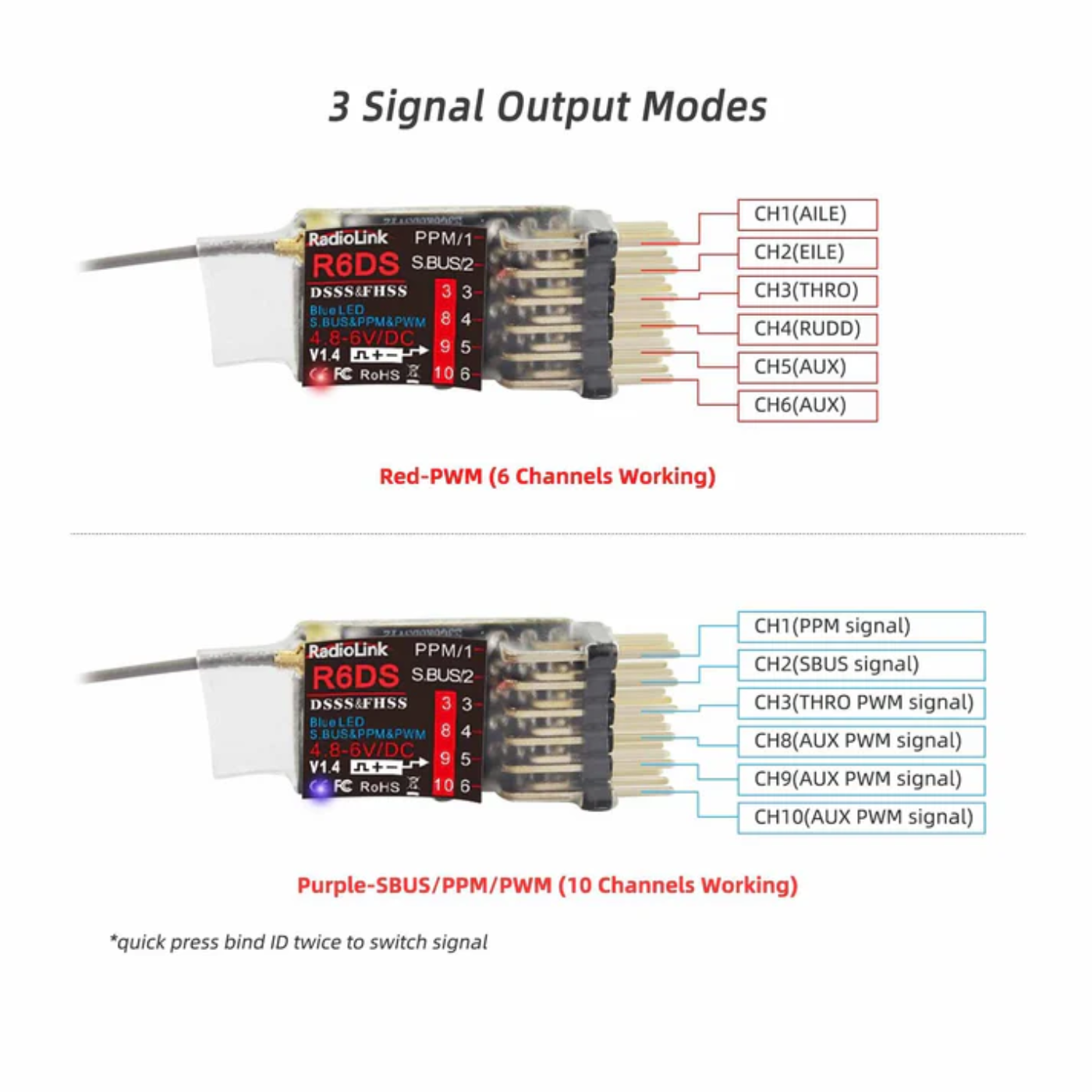

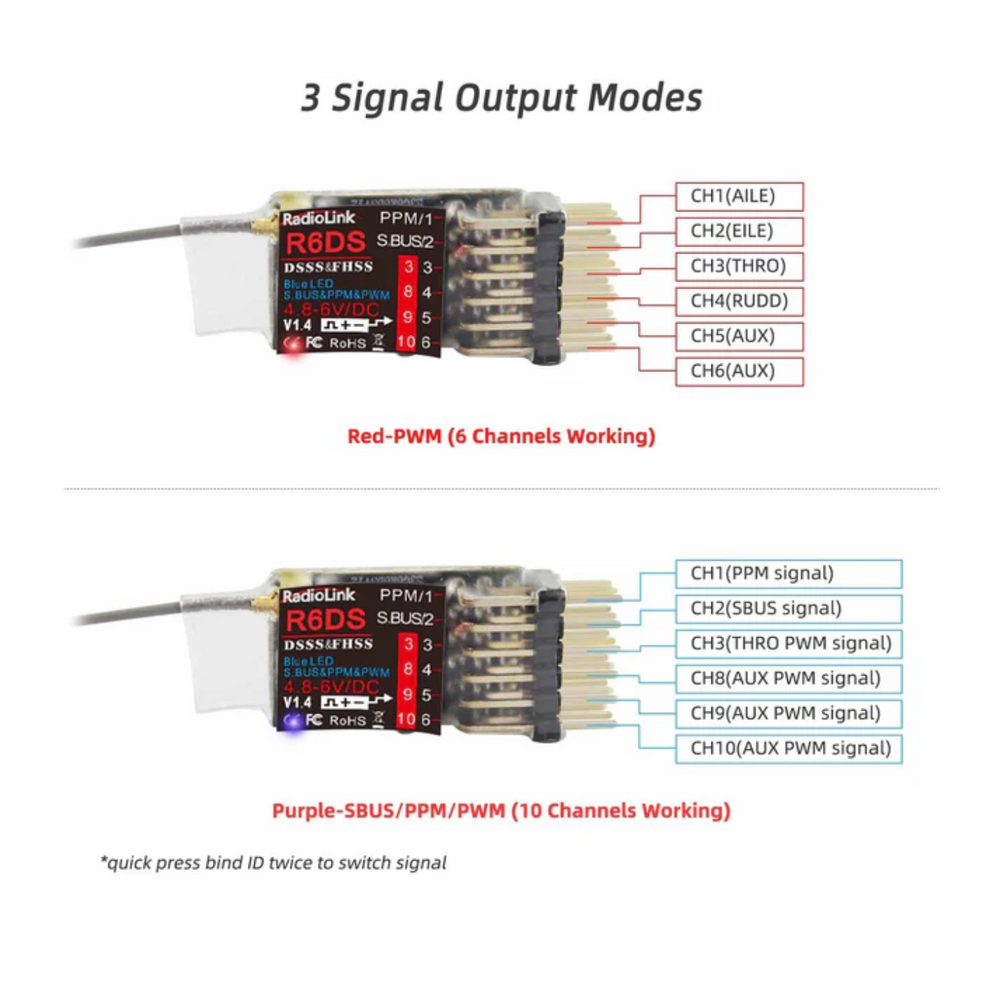

6. How to switch between SBUS, PPM, and PWM modes on the R6DS receiver?
The SBUS / PPM / PWM receiver supports protocol switching: use your transmitter settings or short the signal pin to GND during power-up to toggle modes. Select SBUS for flight controllers requiring serial input, PPM for legacy systems, or PWM for individual channel connections. The R6DS retains the selected mode until changed, so verify the current setting before connecting to your drone or RC vehicle.
7. How to ensure stable long-range signal transmission with the Radiolink R6DS?
Position the two antennas at a 90° angle to each other to maximize spatial diversity and minimize signal nulls during flight. The 2.4GHz RC receiver uses DSSS and FHSS technology to resist interference and maintain a strong link over long distances. Avoid placing the receiver near carbon fiber, motors, or video transmitters that can block or reflect RF signals. Regularly check signal telemetry in your OSD for early warning of dropouts.

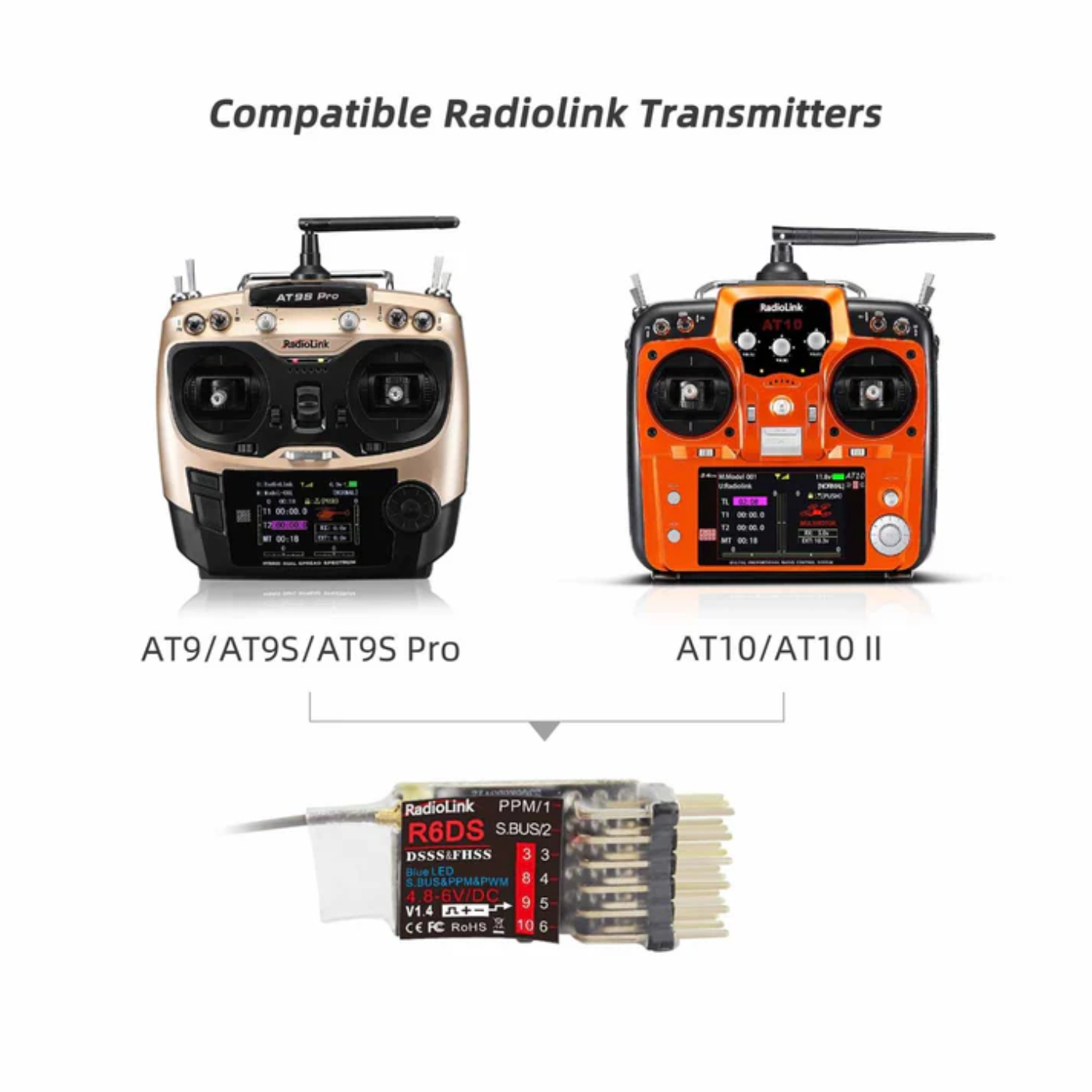

1. What devices are compatible with the Radiolink R6DS 6/10 Channels RC Receiver?
The versatile Radiolink R6DS is a 2.4GHz RC receiver that is designed to work seamlessly with Radiolink transmitters like the popular AT9S, AT10II, and T8FB models. It is a fantastic choice for a wide variety of models, including drones, RC cars, and airplanes. Its ability to operate in both 6 channel and 10 channel modes makes it incredibly flexible.
2. How does the Radiolink R6DS receiver connect with transmitters?
The R6DS RC receiver creates a very reliable link with your transmitter using an advanced 2.4GHz DSSS and FHSS hybrid protocol communication protocol. This technology helps to ensure a strong and interference-free signal. When you pair it with a compatible Radiolink transmitter, you get smooth and dependable control over your drone or RC vehicle.
3. What output modes are supported by the R6DS receiver?
The Radiolink R6DS receiver is extremely versatile, offering three different signal output modes: SBUS, PPM, and traditional PWM. This gives you great flexibility to connect it to a wide range of flight controllers and servos. This makes it an ideal RC receiver for drones and other advanced projects.
4. What is the range and reliability of the Radiolink R6DS receiver?
You can fly with confidence, as this high-quality 6 channel RC receiver provides a solid control range of up to 600 meters on the ground and even farther in the air. Its excellent anti-interference capabilities ensure that you maintain a reliable and responsive connection to your aircraft. This is crucial for safe and enjoyable flying.
