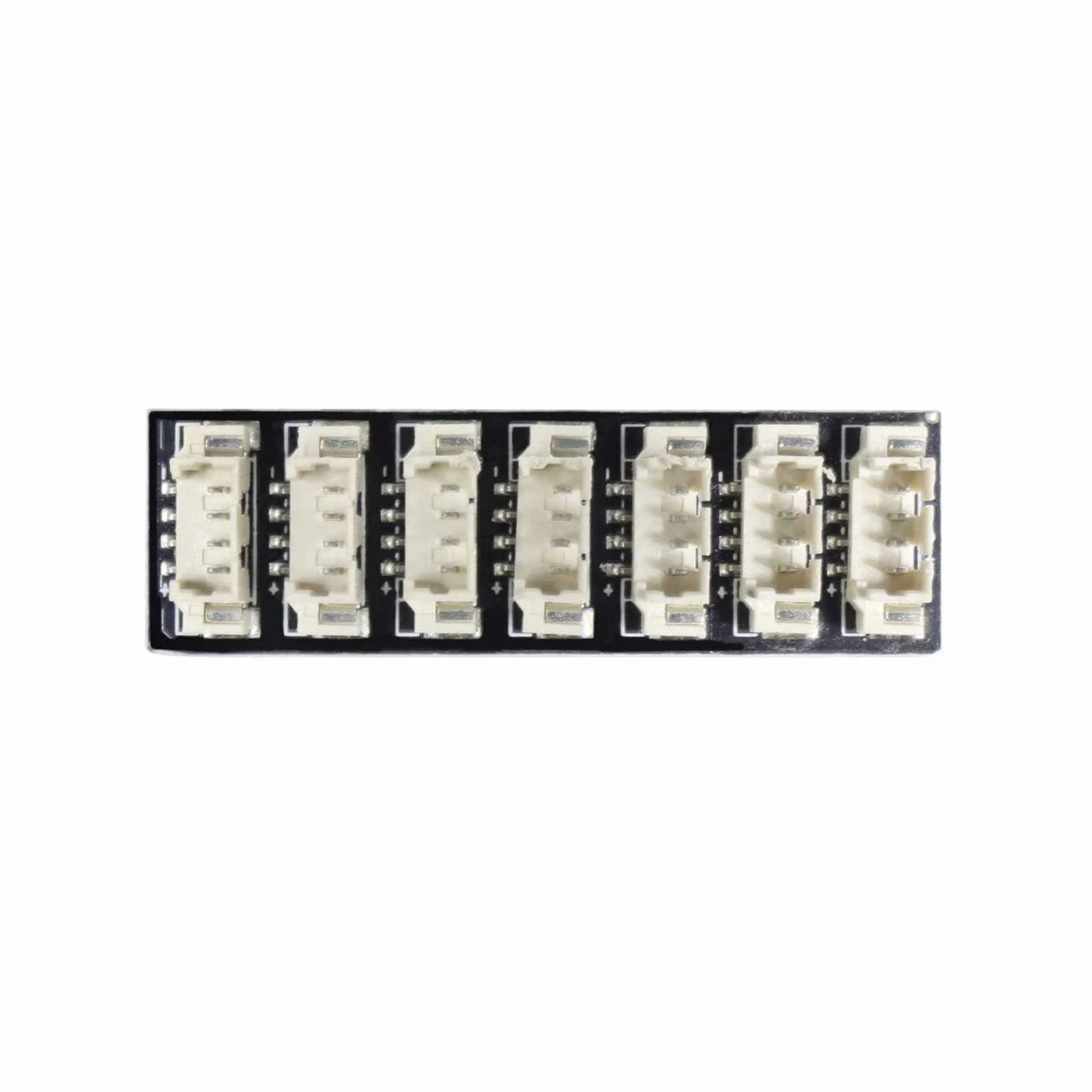

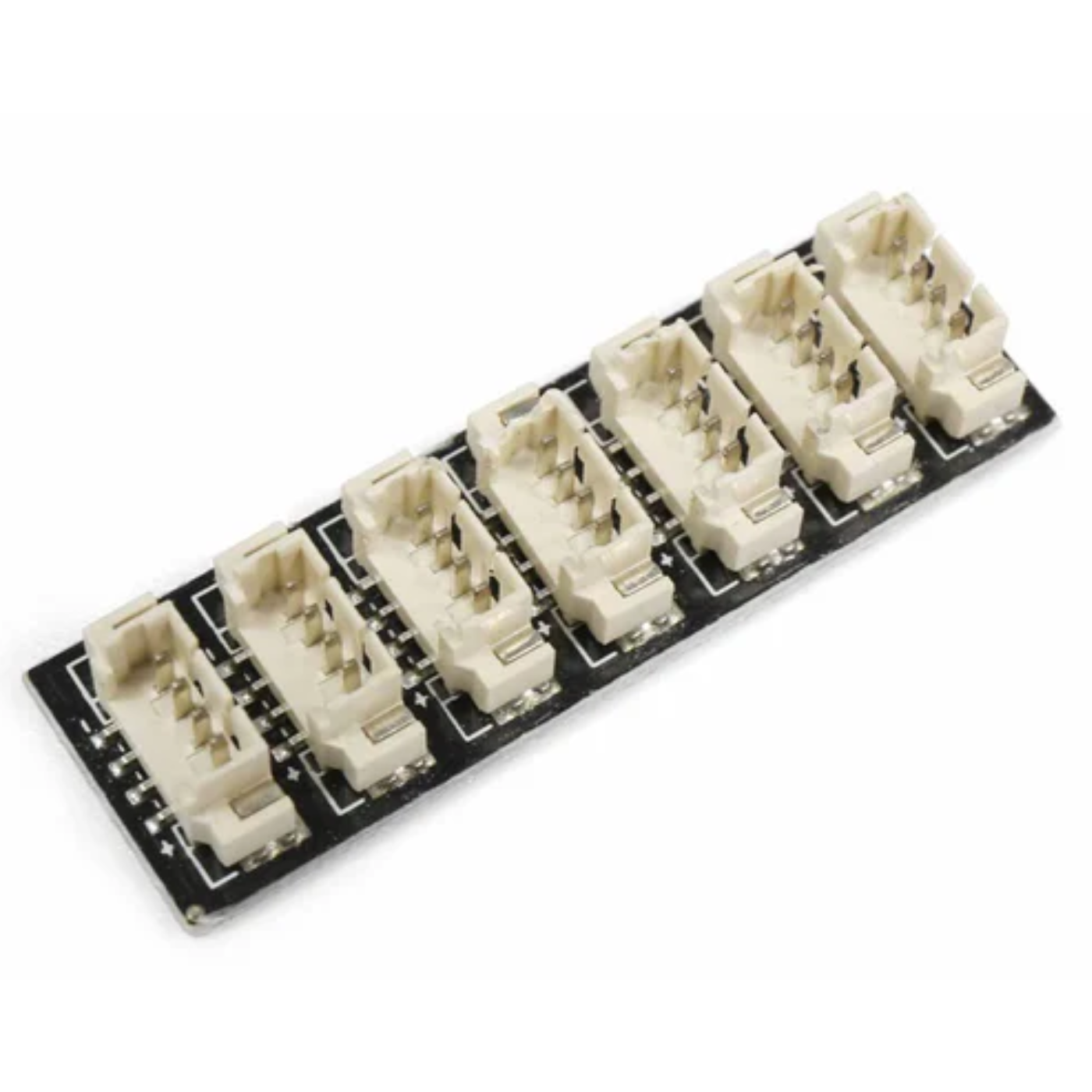

Radiolink 7P I2C Obstacle Avoidance Drone Expansion Board for PIXHAWK/Mini Pix
The Radiolink 7P I2C Expansion Board is a high-performance obstacle avoidance drone expansion board designed to upgrade your drone’s navigation and safety features. It works seamlessly with the PIXHAWK Mini PIX Flight Controller and other popular flight controllers, allowing easy integration for advanced obstacle detection.
Equipped with six I2C ports, this board supports multiple SU04 and SUI04 ultrasonic sensors, enabling your drone to sense obstacles in five directions-forward, backward, left, right, and upward. Perfect for hobbyists and professional drone builders, it ensures stable altitude control and reliable flight performance.
Features
-
Multi-Directional Obstacle Avoidance: Supports up to 6 SUI04 ultrasonic sensors, enabling your drone to detect obstacles from five directions—forward, backward, left, right, and upward-while maintaining stable altitude control.
-
I2C Port Expansion: Equipped with 7 ports-1 input and 6 I2C-this expansion board allows seamless integration of multiple sensors and modules, enhancing your drone's capabilities.
-

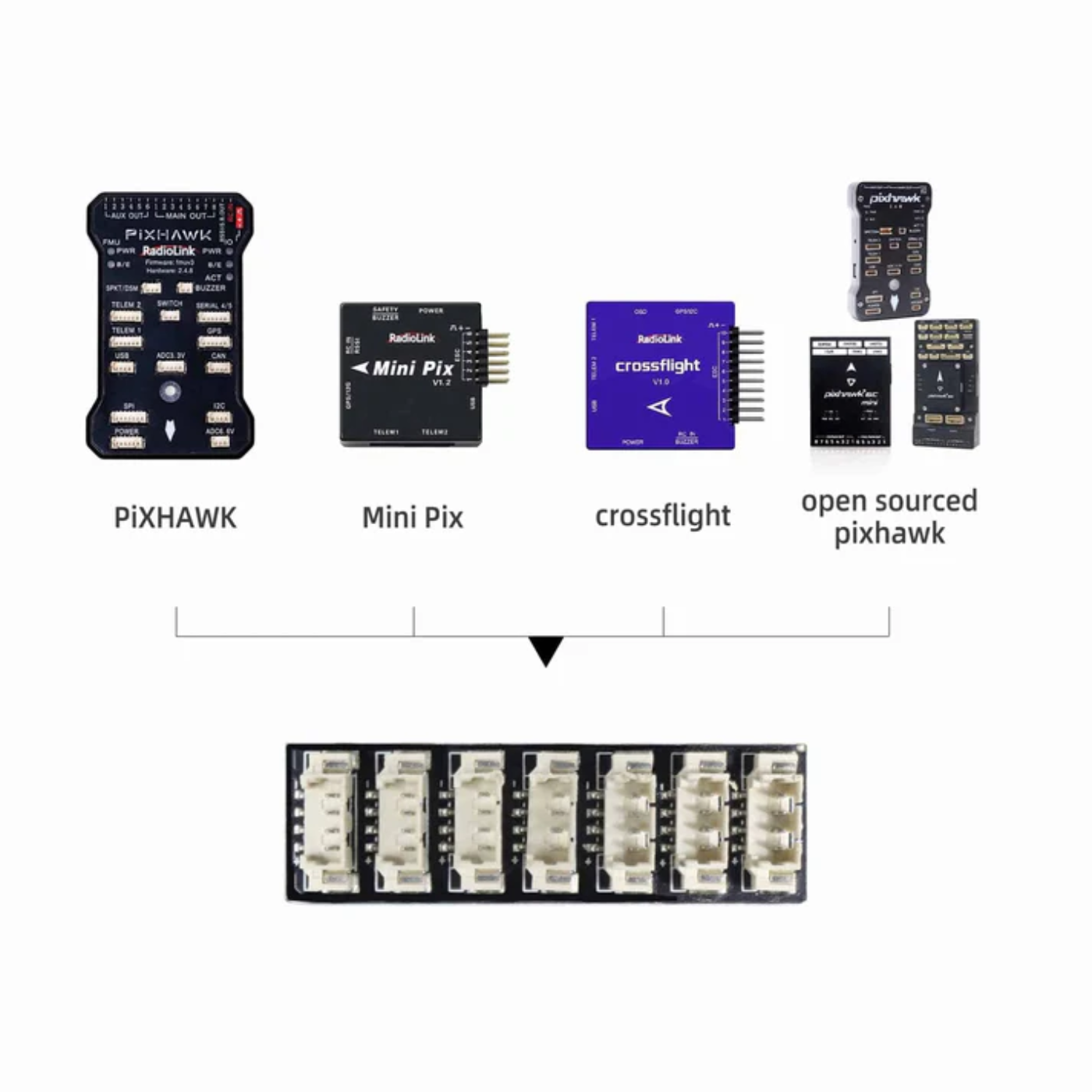

Wide Compatibility: Designed to work with various flight controllers, including PIXHAWK, Mini Pix, Crossflight, and TURBO PiX, ensuring broad applicability across different drone setups.
-
Enhanced Sensor Integration: Facilitates the connection of additional sensors like GPS, altitude modules, and LED indicators, expanding your drone's functionality for more complex missions.
-
Easy Installation: Comes with cables compatible with both Mini Pix and PIXHAWK flight controllers, simplifying the setup process for users.
1. How to connect the Radiolink 7P I2C expansion board to a PIXHAWK flight controller?
Plug the I2C cable from the Radiolink 7P I2C expansion board directly into the I2C port on your PIXHAWK or Mini Pix flight controller. Ensure the connector is aligned correctly to avoid damaging the pins or causing communication issues. This connection enables the drone expansion board for PIXHAWK to interface with multiple sensors using the I2C protocol. Secure the board with standoffs to prevent vibration-related disconnections.
2. How to use the I2C obstacle avoidance module for drone navigation?
Connect ultrasonic, ToF, or LiDAR sensors to the I2C obstacle avoidance module ports on the Radiolink 7P I2C expansion board for environmental sensing. Configure sensor parameters in Mission Planner or QGroundControl, enabling terrain hold, proximity limiting, or automated avoidance in flight modes like Loiter or Auto. The Mini Pix I2C expansion board streams real-time distance data to the flight controller for dynamic path adjustments. Always verify sensor alignment and field of view before flight.
3. How to add multiple sensors using the Mini Pix I2C expansion board?
The Mini Pix I2C expansion board provides seven I2C ports, allowing you to daisy-chain multiple sensors such as rangefinders, airspeed sensors, or GPS modules. Connect each device to an available port and ensure all have unique I2C addresses to prevent conflicts. This drone expansion board for PIXHAWK simplifies wiring and reduces clutter on the flight controller. Use the I2C scanner in Mission Planner to confirm all sensors are detected.
4. How to power the drone expansion board for PIXHAWK safely?
Power the Radiolink 7P I2C expansion board through the PIXHAWK’s I2C port, which supplies regulated 5V, or use an external 5V source with clean, stable output. Avoid connecting unregulated or noisy power, as voltage spikes can damage the I2C obstacle avoidance module or connected peripherals. If using an external BEC, ensure common grounding with the flight controller to maintain signal integrity.
5. How to troubleshoot connection issues with the Radiolink 7P I2C expansion board?
If sensors on the Radiolink 7P I2C expansion board are not detected, first verify cable integrity and secure connections at both ends. Use the I2C scanner tool in Mission Planner to check for live devices and identify missing or duplicated addresses. Ensure each I2C obstacle avoidance module or sensor is properly powered and configured for the correct I2C speed (100kHz or 400kHz). Reset the flight controller if the bus appears locked or unresponsive.
1. What is the Radiolink 7P I2C Expansion Board used for?
The Radiolink 7P I2C Expansion Board is a simple way to add obstacle avoidance capabilities to your drone by allowing you to connect multiple sensors. It works with popular flight controllers like the PIXHAWK and Mini Pix, enabling you to add ultrasonic modules for better drone navigation efficiency.
2. Is this I2C obstacle avoidance module compatible with PIXHAWK controllers?
Yes, this I2C obstacle avoidance module is fully compatible with both PIXHAWK and Mini Pix flight controllers. It allows you to connect up to six ultrasonic sensors for precise distance measurement. This gives your drone excellent obstacle detection capabilities from multiple directions.
3. How does the Drone Expansion Board for PIXHAWK improve obstacle detection?
This Drone Expansion Board for PIXHAWK greatly improves obstacle detection by adding extra I2C ports to your flight controller. This allows multiple sensors to work simultaneously, giving your drone better real-time obstacle awareness. This is a crucial feature for improving safety during flight.
4. Can the Mini Pix I2C Expansion Board be used for DIY drone projects?
Absolutely! The Mini Pix I2C Expansion Board is perfect for DIY drone builders who want to integrate advanced obstacle avoidance systems into their custom creations. It offers easy installation and provides very stable performance, making it a fantastic upgrade for any project.
5. How many sensors can the Radiolink 7P I2C Expansion Board support?
The Radiolink 7P I2C Expansion Board allows you to connect up to six ultrasonic sensors at the same time. This makes it ideal for drones that require multi-directional obstacle sensing. It can even be used for basic environmental scanning applications.
6. Does the Radiolink 7P I2C Expansion Board require additional setup?
There is No complex setup required to use the Radiolink 7P I2C Expansion Board. You simply connect the expansion board to your PIXHAWK or Mini Pix controller and then attach compatible sensors. The system automatically detects and integrates them for immediate use.
