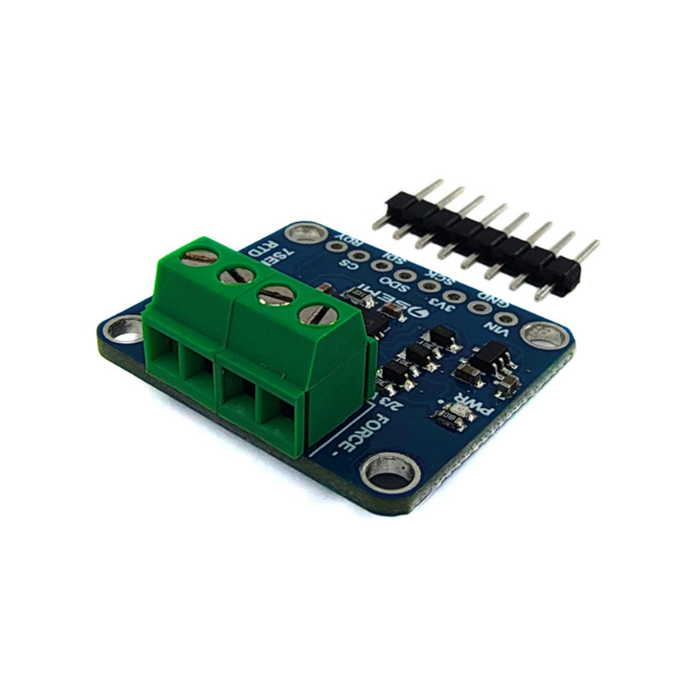

PT100 RTD 2-Wire Temperature Sensor Breakout Board with MAX31865 Amplifier -7Semi
PT100 RTD 2-Wire Temperature Sensor Breakout Board with MAX31865 Amplifier -7Semi
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Equipped with MAX31865 RTD-to-digital converter
- Compatible with PT100 RTD temperature sensors
- Supports 2-wire, 3-wire, and 4-wire configurations
- SPI interface for easy microcontroller integration
- Operates at 3.3V or 5V
- Ideal for industrial and laboratory applications
- Compensates for lead resistance for enhanced accuracy
PT100 RTD 2-Wire Temperature Sensor Breakout Board with MAX31865 Amplifier -7Semi
The 7Semi PT100 RTD 2-Wire Temperature Sensor Breakout Board is a precision temperature sensing solution powered by the MAX31865 RTD-to-digital converter.
Designed to work seamlessly with PT100 sensors, it supports 2-wire, 3-wire, and 4-wire configurations, providing compensation for lead resistance to deliver accurate readings.
With a digital SPI interface, it easily integrates with most microcontrollers, while its dual voltage compatibility (3.3V or 5V) ensures broad applicability. Engineered for reliability and precision, this breakout board is ideal for temperature monitoring in industrial systems and laboratory setups.
Features:
- Industrial-Grade Precision: The PT100 RTD, a key component of industrial temperature monitoring, outperforms thermocouples in challenging situations.
- MAX31865 RTD Amplifier: This specialised amplifier is intended to read the low resistance of PT100 RTDs, resulting in optimal signal processing and error minimization.
- 2-Wire Compatibility: The breakout board offers 2-wire RTD connection combinations to meet your individual setup needs.
- Excellent Accuracy Temperature Sensor: Temperature measurement with little drift and excellent resolution, ideal for applications requiring accuracy.
- MAX31865 SPI Interface: The breakout board integrates seamlessly with popular microcontrollers such as Arduino and Raspberry Pi, allowing for easy data collecting and control.
- Calibration for the PT1000 RTD Amplifier: The MAX31865 RTD amplifier can be calibrated to ensure consistent and accurate readings throughout time.
- MAX31865 Fault Detection: Built-in fault detection procedures aid in the identification of issues such as sensor disconnections or over-temperature conditions, hence improving system reliability.
- Versatile Applications: Suitable for thermal cycling, industrial process control, laboratory investigations, and any situation requiring precise temperature measurement.
Package Includes:
- 1 x PT100 RTD 2-Wire Temperature Sensor Breakout Board with MAX31865 Amplifier -7Semi
Specifications:
| Specification | Details |
|---|---|
| Sensor Compatibility | PT100 RTD |
| Amplifier IC | MAX31865 |
| Wiring Support | 2-wire, 3-wire, 4-wire |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Voltage | 3.3V or 5V |
| Lead Resistance Compensation | Yes |
| Board Type | Breakout Board |
| Manufacturer | 7Semi |
