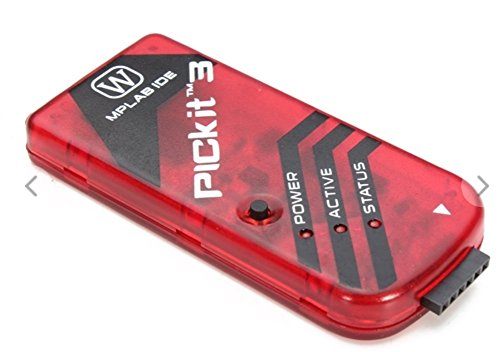

PICkit3 USB Debugger Programmer Emulator Controller Development Board

PICkit3 USB Debugger Programmer Emulator Controller Development Board

The MPLAB PICkit3 Debugger Programmer makes it easier to debug and program PIC and dsPIC Flash microcontrollers. Compared to earlier generations like the ICD2, it offers more stability and connects to your PC with ease via a full-speed USB interface. This PICKit3 USB debugger version has a full patch design with reflow soldering for increased longevity and dependability, and it also supports Windows 7.

PICkit is a family of programmers for PIC microcontrollers made by Microchip Technology. The Pickit3 In-Circuit Debugger/Programmer features a faster 16-bit PIC24F processor and a wider voltage regulation range which makes it more reliable than the Pickit 2.

The PICkit 3 is compatible with the MPLAB X IDE, has a pinout diagram to make it easier for customers to grasp, and uses a graphical user interface to do programming and debugging activities.

A Microchip debug (RJ-11) connector is used to link it to the target microcontroller, guaranteeing compatibility with MPLAB ICD 2, MPLAB ICD 3, and MPLAB REAL ICE systems.

This MPLAB PICkit 3 programmer development board comes with a variety of tools to facilitate C language development. Because of its ability to simplify the development process, the PICkit3 Debugger Programmer is a perfect tool for product development, prototyping, and embedded system applications.

Features:

• Used for programming and debugging microcontrollers.
• Features a faster 16-bit PIC24F processor.
• Supports a voltage supply range from 1.8V to 5V.
• Capable of programming up to 512K flash memory bytes.
• Compatible with MPLAB ICD 2, MPLAB ICD 3, and MPLAB REAL IC.
• Essential tool for developers working with PIC microcontrollers.

PICkit 3 Pinout:

Applications:

• Embedded System Development
• Electronics Prototyping
• Industrial Automation
• Robotics
• IoT Projects

• Educational Learning

• Consumer Electronics

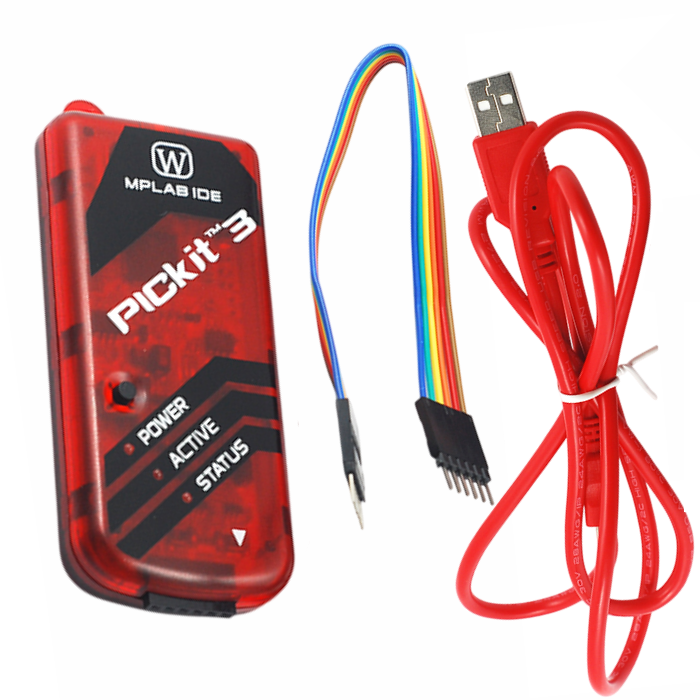

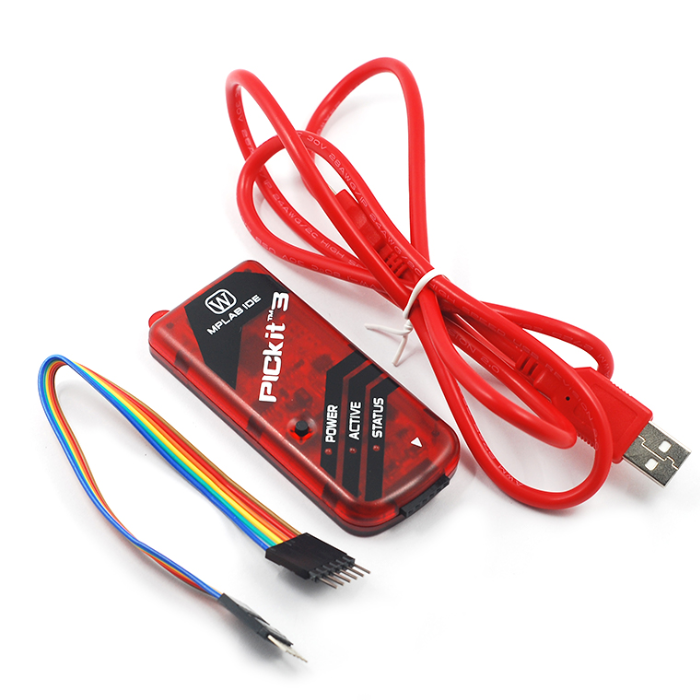

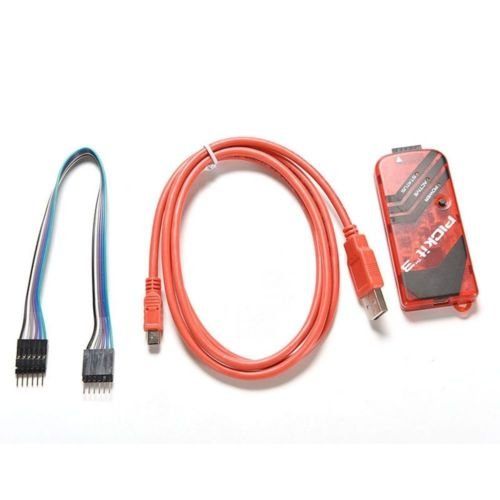

Package Includes:

• 1 x PICkit3 Programmer
• 1 x Jumper Wire
• 1 x USB cable

Specifications
