Nextion Enhanced NX4832K035 3.5 inch HMI LCD Module Display Panel

Nextion Enhanced 3.5 inch LCD Module Display Panel

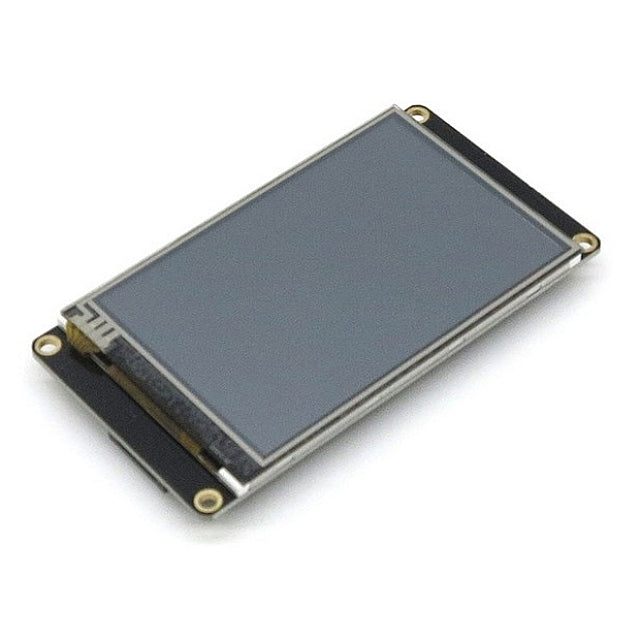

Nextion Enhanced editions are more powerful than standard editions. In comparison to the basic Nextion displays, the enhanced ones have some new functions, such as built-in RTC support, data saving to Flash support, GPIO support, larger flash capacity, and a faster CPU clock. The Nextion series has seven size covers ranging from 2.4" to 7.0". The Nextion Enhanced NX4832K035 is a powerful 3.5" HMI TFT display with 32MB Flash storage, 1024 byte EEPROM, and 8192 byte RAM. Customers can now use Nextion to control external devices now that GPIO is supported.

Nextion is a seamless Human Machine Interface (HMI) solution that allows a human to control and visualize a process, machine, application, or appliance. Nextion is most commonly used in the Internet of Things (IoT) or consumer electronics fields. It is the best replacement for traditional LCD and LED Nixie tubes. Nextion consists of a hardware component (a series of TFT boards) and a software component (the Nextion editor). The Nextion TFT board communicates via a single serial port. It saves users the trouble of wiring. We discovered that most engineers devote a significant amount of time to application development but receive unsatisfactory results.

As a solution to this problem, Nextion editor includes numerous components such as buttons, text, progress bars, sliders, instrument panels, and so on to enhance the interface design. Furthermore, the drag-and-drop feature ensures that users spend less time programming, reducing 99% of their development workloads. Creating a GUI is a piece of cake with the help of this WYSIWYG editor. Users only need to provide a UART to adapt Nextion family HMI to existing projects.

Features:

• Supports built-in RTC
• Supports GPIO
• SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
• Flash data storage space: 32MB
• EEPROM: 1024 bytes
• RAM: 8192 bytes
• Instruction buffer: 1024 bytes
• Color: 65K (65536) colors
• Resolution: 480×320 pixel
• Adjustable Brightness: 0~180 nit- the interval of adjustment is 1%

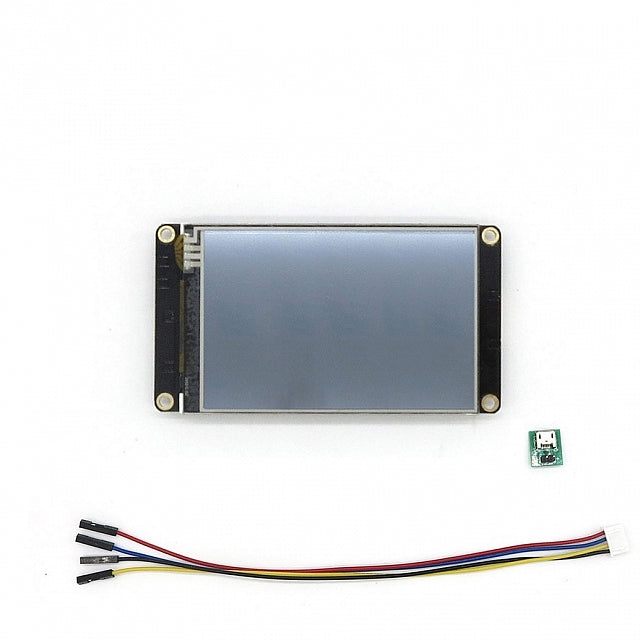

Package Includes:

• 1× 3.5″ Nextion Enhanced HMI Display
• 1× power supply test board
• 1× 4-pin grove cable
