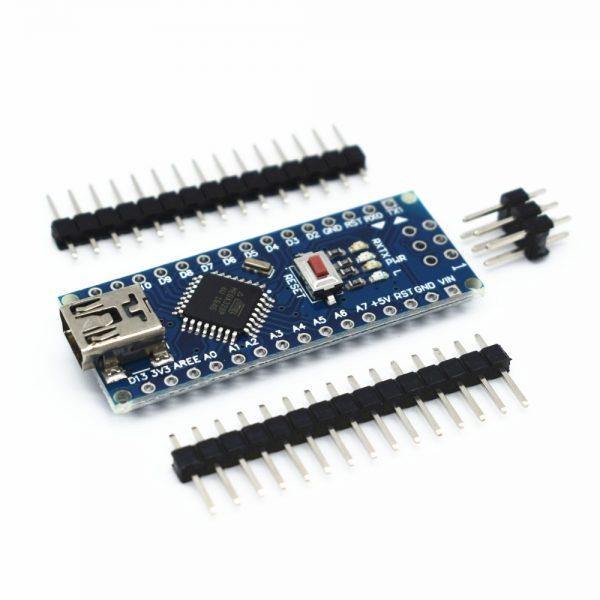

Arduino Nano Board R3 compatible

Nano Board R3 compatible with Arduino-Robocraze
Nano Board R3 compatible with Arduino-Robocraze
Nano Board R3 compatible with Arduino-Robocraze
Nano Board R3 compatible with Arduino-Robocraze
Nano Board R3 compatible with Arduino-Robocraze
Nano Board R3 compatible with Arduino-Robocraze
  • Nano Board R3 compatible with Arduino-Robocraze
  • Nano Board R3 compatible with Arduino-Robocraze
  • Nano Board R3 compatible with Arduino-Robocraze
  • Nano Board R3 compatible with Arduino-Robocraze
  • Nano Board R3 compatible with Arduino-Robocraze
  • Nano Board R3 compatible with Arduino-Robocraze

Arduino Nano Board R3 compatible

Best Price Guaranteed

Best Price Guaranteed
Regular price
Rs. 259
Sale price
Rs. 259
Regular price
Rs. 399
You save Rs. 140
35% off
You save Rs. 140
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • This is Nano Board R3 compatible with Arduino

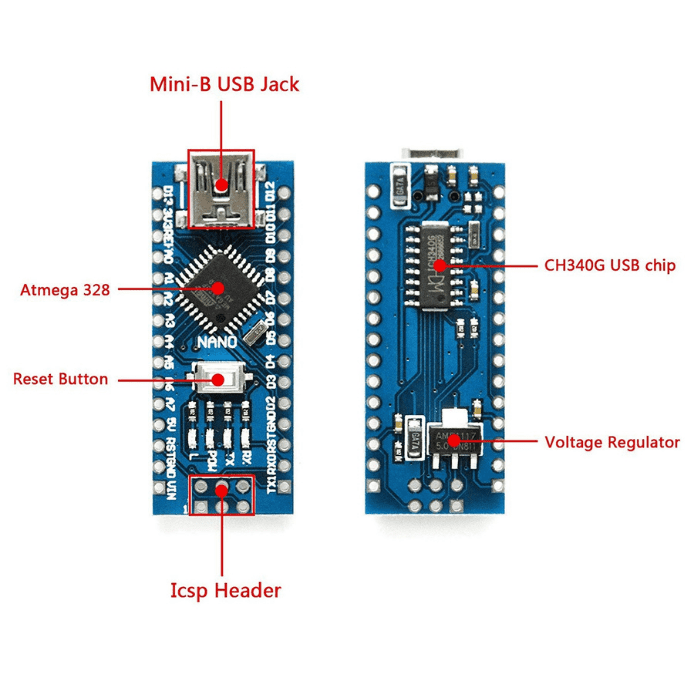

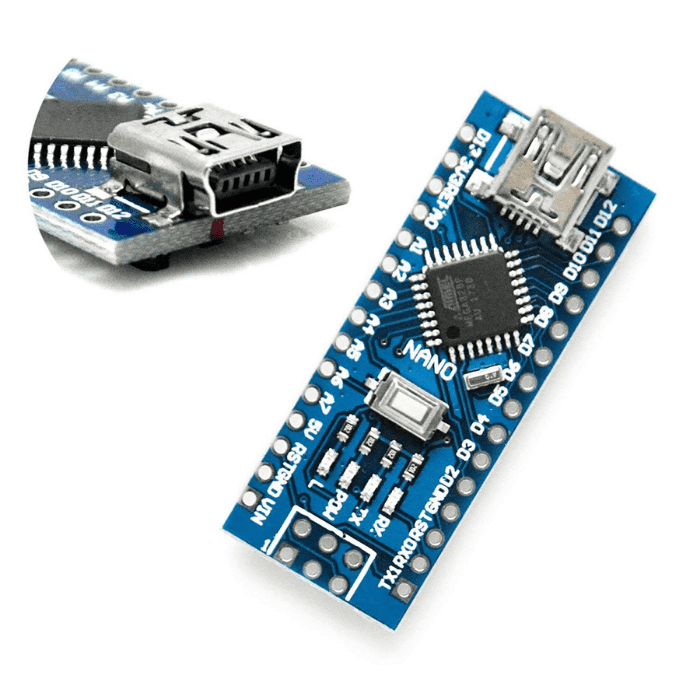

  • The Nano R3 board for Arduino is powered via the Mini-B USB connection.
  • It is integrated with 14 digital pins and 8 analog inputs all with 10 bits of resolution.

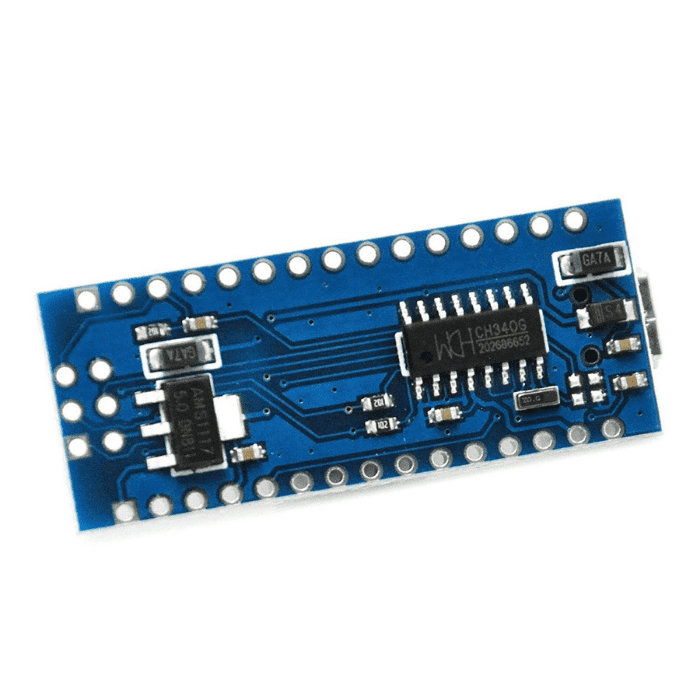

  • The Nano Board R3 board is equipped with CH340 chip.
  • This Nano R3 Arduino board has an operating voltage of 5V.

 Note: User need to download CH341S64.SYS driver and use it with old bootloader settings in the arduino IDE.

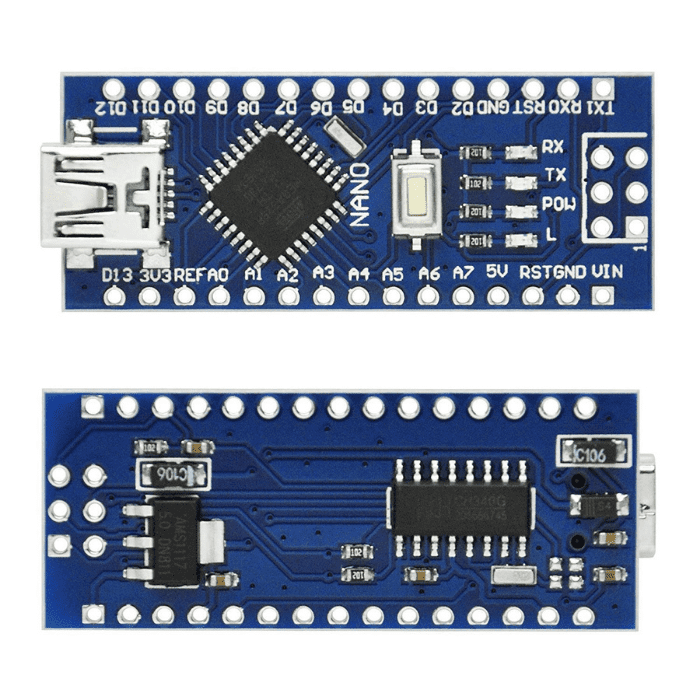

Nano Board R3 compatible with Arduino

The Nano board R3 is integrated with the CH340 chip and is compatible with Arduino. Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms.

The Nano R3 board for Arduino is a small and breadboard friendly microcontroller development board. This Nano Arduino board is designed based on ATmega328 and has similar functionality of the UNO board. It features automatic reset during program download and supports ISP download, power supply by 9V battery, and external 5V ~ 12V DC power supply.

 Note: User need to download CH341S64.SYS driver and use it with old bootloader settings in the arduino IDE.

Applications:

  • Automation
  • Robotics
  • Control Systems
  • Embedded Computer
  • Embedded Computer

Package Includes:

  • 1 x Nano R3 Board compatible with Arduino
  • 30 x Unsoldered Pins

Specifications:

Microcontroller  ATmega328
Analog Input Ports  8 (A0 ~ A7)
Digital I/O Ports  14 (TX, RX, D2 ~ D13)
Operating Voltage 5V
Dimensions  4.3 x 1.8 x 1cms
Weight 5 grams

1. What is Nano R3?

  • The Nano board R3 incorporates the CH340 chip and is Arduino compatible. Using the pinMode(), digitalWrite(), and digitalRead() functions, each of the Nano's 14 digital pins can be used as an input or output. They run on 5 volts. Each pin has an internal pull-up resistor of 20-50 kOhms and can provide or receive a maximum of 40 mA.

2. What is Nano used for?

  • The Nano R3 board is a small, breadboard-friendly microcontroller development board used in automation, robotics, control systems, embedded computer, and embedded computer.
