N58 LTE Breakout with 4G Antenna & 10cm UFL Connector

N58 LTE Breakout with 4G Antenna & 10cm UFL Connector

Low stock: 5 left

Regular price Rs. 1,804
Regular price Rs. 2,499 Sale price Rs. 1,804
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 695 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Supports GSM, LTE, audio, video, Wi-Fi
  • Works with Windows, Linux, Android
  • 4G antenna covers 700-2700MHz
  • 10cm SMA to UFL connector
  • Ideal for IoT and M2M projects
Trust Badge 1 Trust Badge 2 Trust Badge 3

N58 LTE Breakout with 4G Antenna & 10cm UFL Connector

If you work on IoT or M2M applications, this combo is ideal for you! The N58 LTE Breakout with 4G Antenna and 10cm UFL Connector provides stable communication for your devices.

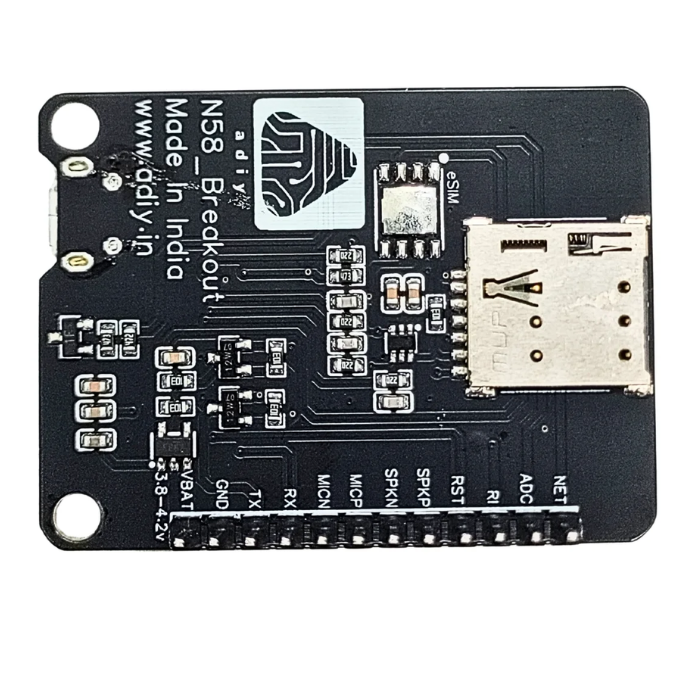

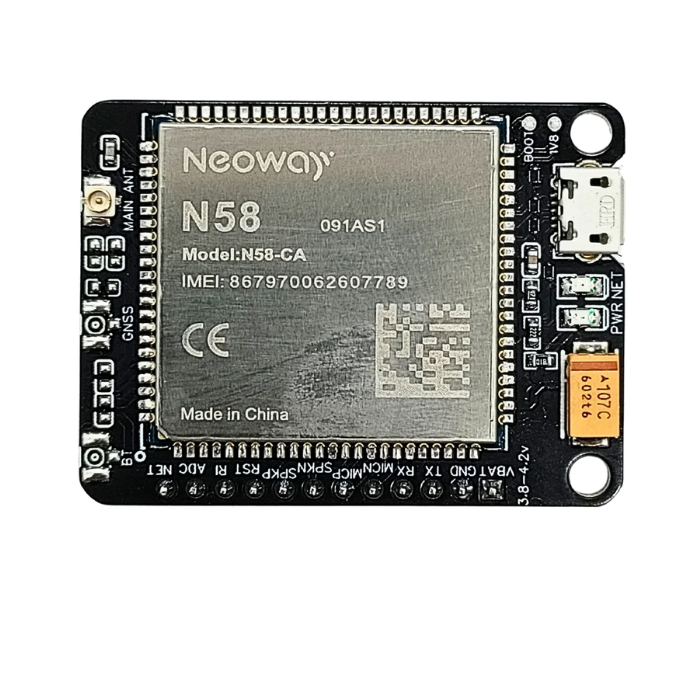

The N58 LTE Breakout Board supports GSM and LTE networks, making it great for things like wireless meters, POS systems, and in-vehicle terminals. It’s easy to use, has features like audio, video, and Wi-Fi, and works with Windows, Linux, and Android.

The 4G antenna provides a strong, reliable signal, and the 10cm UFL to SMA Female Connector helps you connect everything smoothly. It’s a great choice for keeping your devices connected and working well!

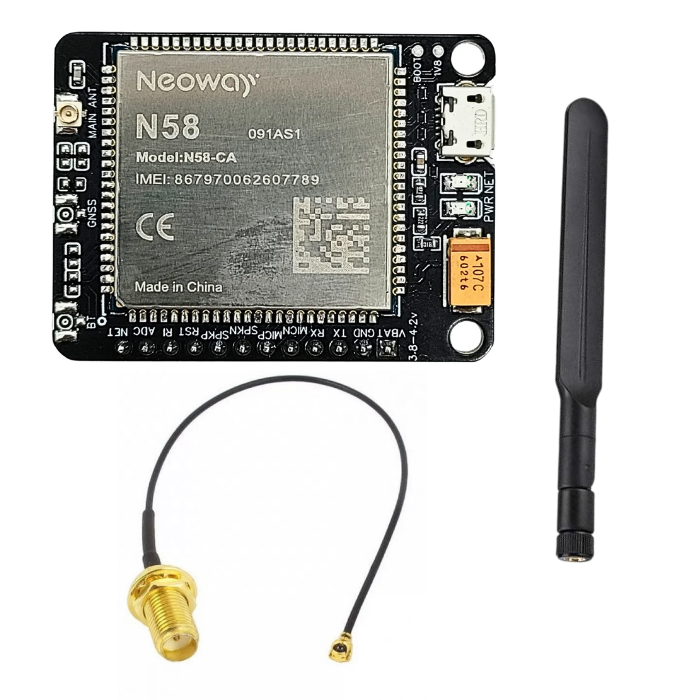

Package Includes:

  • 1 x N58 LTE Breakout Board
  • 1 x GSM 4G Foldable Antenna
  • 1 x SMA Female to UFL Connector - 10cm

Specifications:

Component Specification
N58 LTE Breakout Board Supports GSM, FDD-LTE (Cat 1), TDD-LTE (Cat 1); Audio, Video, Wi-Fi positioning; Works with Windows, Linux, Android

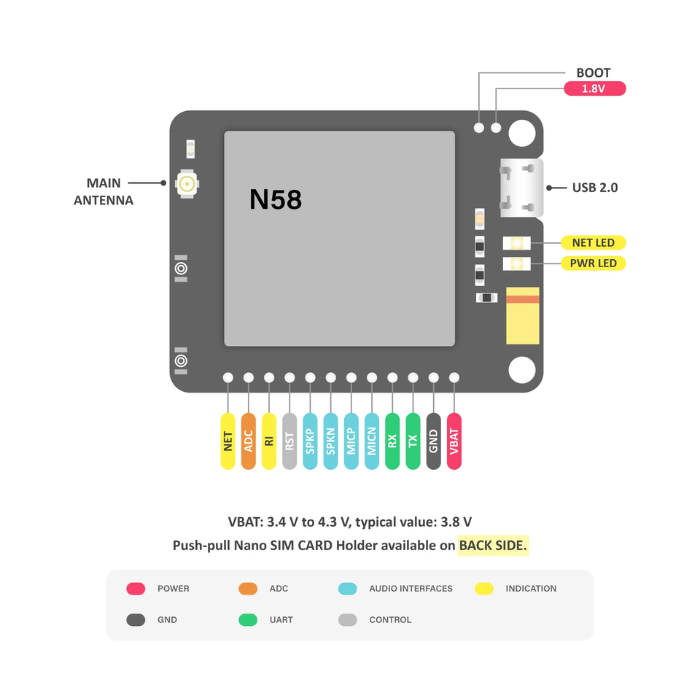

Operating Voltage 3.4V to 4.3V (typical 3.8V)
Power Consumption Sleep Mode: <3mA; LTE Mode: <600mA

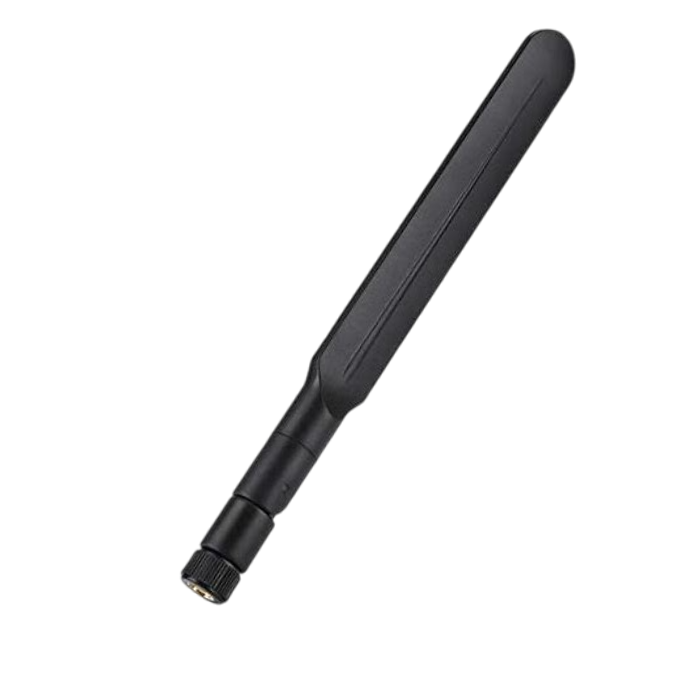

4G Antenna Frequency: 700-2700MHz; Compatible with 4G, 3G, 2G signals
SMA to UFL Connector Length: 10cm; Connector Type: SMA Female to UFL
