DF Robot

MXChip Microsoft Azure IoT Developer Kit

MXChip Microsoft Azure IoT Developer Kit

Low stock: 1 left

Regular price Rs. 4,350
Regular price Rs. 5,999 Sale price Rs. 4,350
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 1,649
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • On-Chip Audio: MXChip features the first Arduino-compatible development on-chip audio codec, perfect for voice interactive projects.
  • Cloud Connected: Tutorials and demos provided for building cloud-connected applications, empowering IoT development.
  • Powerful Microcontroller: Equipped with STM32F412 Cortex-M microcontroller and Cypress WIFI chip for industrial-level quality.
  • Rich Sensing Technologies: Onboard sensors include motion, pressure, magnetometer, humidity & temperature sensors with a microphone.
  • Security Encryption: Integrated security encryption chip ensures the latest in security protection.
  • USB Programming: Arduino compatible with USB programming, making it user-friendly.

MXChip Microsoft Azure IoT Developer Kit

The MXChip IoT DevKit is the ultimate solution for IoT development. With its unique on-chip audio codec, cloud connectivity, and powerful STM32F412 Cortex-M microcontroller, it opens up endless possibilities for Arduino developers and IoT enthusiasts. The rich onboard sensing technologies, including motion and temperature sensors, make it versatile for various applications.

Our commitment to providing a seamless experience is evident in the USB programming compatibility and compact design. Developed with the latest Microsoft cloud services, this IoT DevKit is your gateway to the future of connected devices. Made to ensure quality and durability, it's the perfect choice for those venturing into IoT development.

Features:

  • The first Arduino-compatible development on-chip Audio codec. Enabling to create interesting voice interactive projects
  • Tutorials and demos for building your first cloud connected application.
  • Powerful STM32F412 Cortex-M microcontroller with Cypress WIFI chip, industrial level quality
  • Rich onboard sensing technologies, including motion, pressure, magnetometer, humidity & temperature sensors with a microphone.
  • Integrates security encryption chip for the latest security-protection.

Pin Diagram:

MXChip Microsoft Azure IoT Developer Kit Pin Diagram

MXChip IoT DevKit

Package Includes:

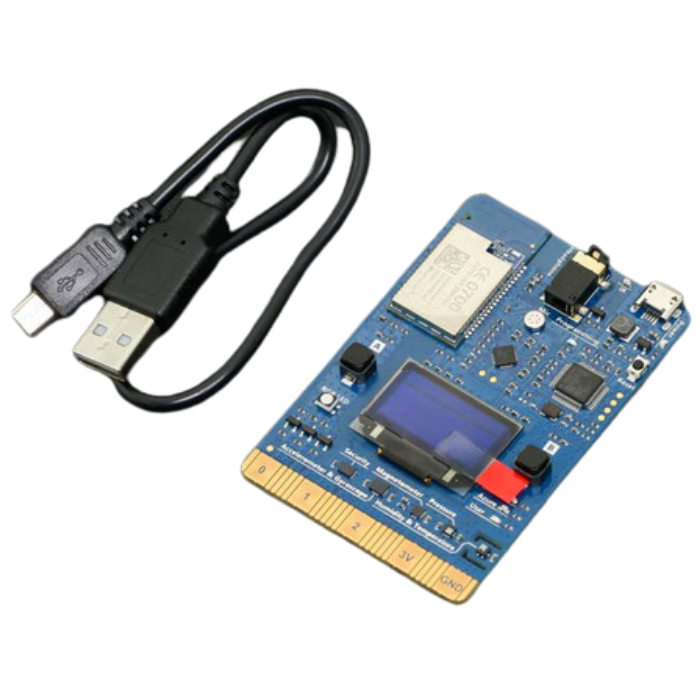

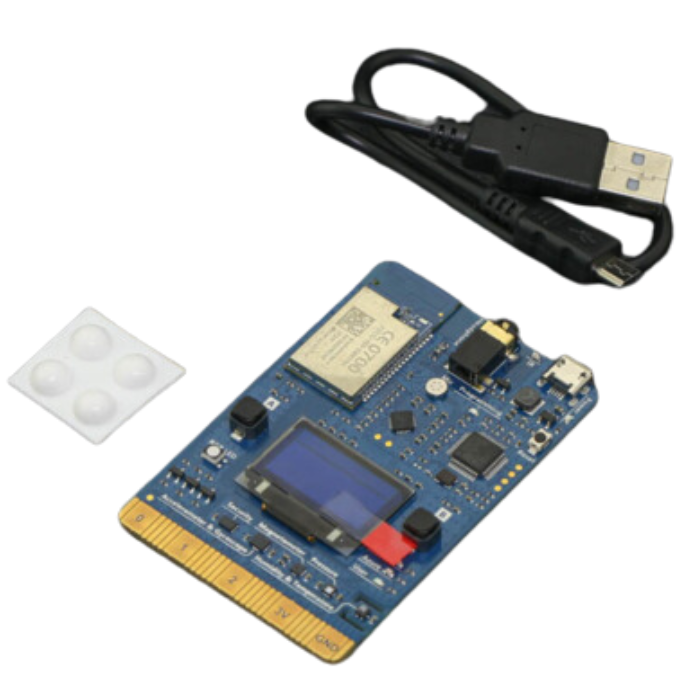

  • 1 x MXChip Microsoft Azure IoT Developer Kit

Specifications:

Microcontroller STM32F412, ARM Cortex M4F processor
Wifi Module EMW3166 with 256K SRAM, 1M+2M Byte SPI Flash
USB Programming Arduino compatible
Emulator DAP Link emulator
Working Voltage 3.3v or USB power supply
DC-DC Support Supports 3.3V DC-DC, maximum current 1.5A
Audio Codec With microphone and earphone socket
Display OLED, 128x64

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is Microsoft Azure IoT?

Azure IoT is used for connecting, monitoring, and controlling IoT assets on a large scale. It's made up of various cloud services, edge components, and software development kits (SDKs) managed by Microsoft. Essentially, it facilitates communication between IoT devices and cloud services, serving as the backbone for IoT solutions.



2. What is MX chip?

The MX chip is a key component of MXCHIP's IoT solutions, designed to connect various devices and cloud services. Founded in 2010, MXCHIP boasts over 13 years of IoT expertise, serving over 1,000 global customers and connecting more than 80 million smart devices. Their mission is to bridge connectivity gaps and offer comprehensive solutions for smart homes, buildings, lighting, industries, and energy sectors. MXCHIP provides a range of services including IoT modules, app development, cloud platform construction, ecosystem access, and tailored industry solutions for global enterprises.



3. Which is better for IoT Azure or AWS?

Both Azure and AWS provide strong IoT services, but the best choice depends on what you need. Azure works seamlessly with Microsoft products and focuses on edge computing, while AWS offers a wide ecosystem, extensive customization options, and tight integration with machine learning. Think about factors like integration, scalability, and cost to figure out which platform is the right fit for you.



4. What sensors are included on the MXChip IoT DevKit?

The MXChip IoT DevKit comes with motion, pressure, magnetometer, humidity, and temperature sensors, along with a microphone for audio input.



5. Can I find tutorials and resources for getting started with the MXChip IoT DevKit?

Yes, there are tutorials and demos available to help you get started with building your first cloud-connected application using the MXChip IoT DevKit.
