MQ-9 Gas Sensor Module For Carbon Monoxide, Methane, and LPG Detector Module

Rs. 102; ~~Rs. 161~~; Rs. 102; (-37%)
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 130 left in stock

Quantity:

SKU: TIFSS0136

Good sensitivity to CO/Combustible Gas
DO switching signal (TTL) output and AO analog signal output.
High sensitivity to Methane, Propane, and CO
The module require minimum input voltage of 5±0.2 VDC .
Current Consumption: 150mA
For home or factory gas leak detection device, suitable for carbon monoxide, combustible gas monitoring device.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

FLAT ₹ 100/- OFF

RC100

COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

MQ-9 Gas Sensor Module For Carbon Monoxide, Methane, and LPG Detector Module

~~Rs. 161~~ Rs. 102

Quantity:

MQ-9 Gas Sensor Module For Carbon Monoxide, Methane, and LPG Detector Module

~~Rs. 161~~ Rs. 102

Description
Specifications
Additional Resources
FAQ
Shipping & Return

Description

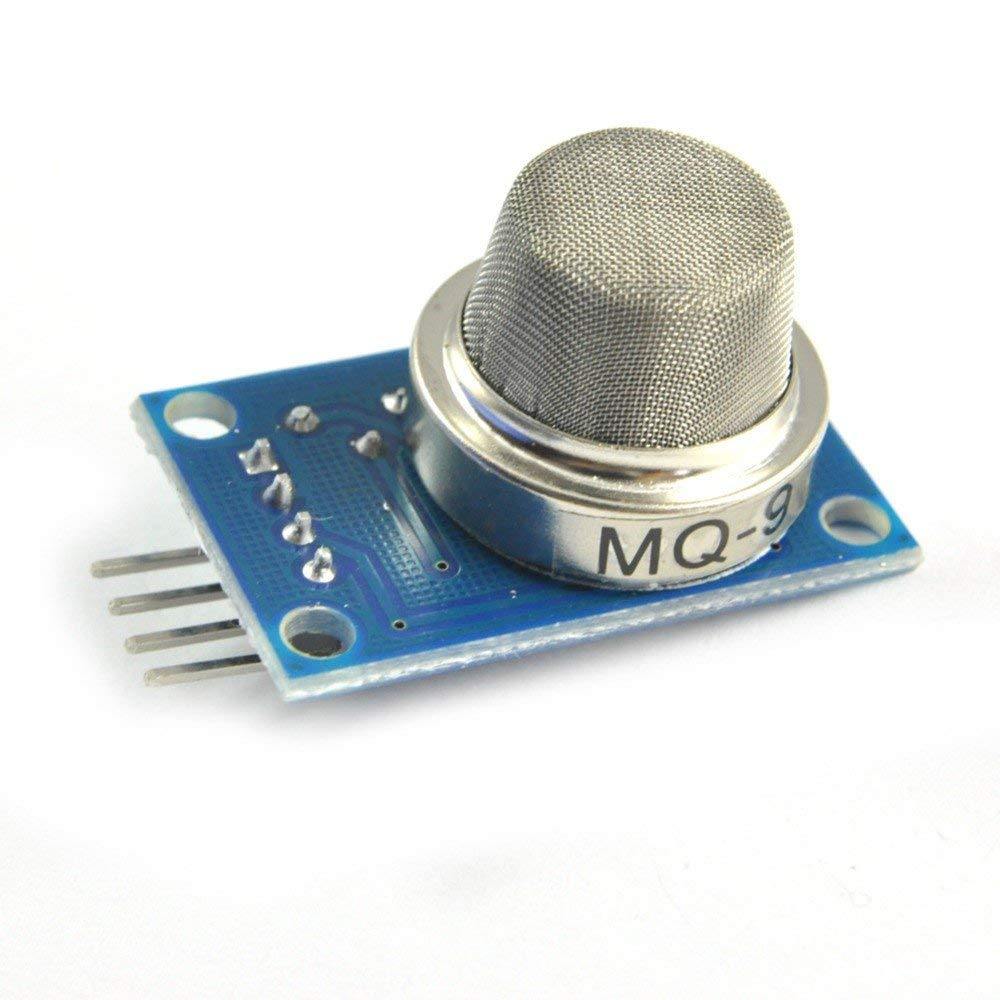

MQ-9 Gas Sensor Module

This is MQ-9 Carbon Monoxide, Methane, and LPG Gas Sensor Module can be used to sense Carbon Monoxide and Methane Gas. The sensitive material of the MQ-9 gas sensor is SnO2, which with lower conductivity in clean air.
It makes detection by the method of cycle high and low temperature, and detect CO when the low temperature (heated by 1.5V). The sensor’s conductivity is higher along with the gas concentration rising. The MQ9 Gas Sensor Module conductivity is higher along with the gas concentration rising. When temperature rises (heated by 5.0V), it detects Methane, Propane, combustible gas, etc. and cleans the other gases as it absorbed under low temperature. MQ-9 usually applied in domestic gas leakage detector, industrial gas detector, portable gas detector, etc.
When the high temperature (heated by 5.0V), it detects Methane, Propane, etc. combustible gas and cleans the other gases adsorbed under low temperature.

Read our blog MQ sensor where we explained what is a gas sensor, what is 1ppm equal to, MQ sensor list of different series and their features.

MQ9 Gas Sensor Wire Connections:

VCC - Positive pole (5V)
GND - Negative pole
DO - TTL switch signal output
AO - Analog signal output

Applications:

The domestic gas leakage detector
Industrial gas detector
Portable gas detector

Specifications

Package Includes:

1 x MQ-9 Gas Sensor Module

Specifications:

Model	MQ9 Gas Sensor
Operating Voltage	5V (DC)
Current Consumption	150 mA
Do output	TTL digital 0 and 1 (0.1 and 5V)
Ao output	0.1-0.3V (relatively clean)
Dimensions	3.2 x 2 x 1.6 cms
Weight	5 grams

Additional Resources

Datasheet

FAQ

1. What are gas sensors? How do they work?

Gas sensors (also known as gas detectors) are electronic devices that detect and identify different types of gasses. They are commonly used to detect toxic or explosive gasses and measure gas concentration.
Gas sensor detects the presence or concentration of gases in the atmosphere. Based on the concentration of the gas the sensor produces a corresponding potential difference by changing the resistance of the material inside the sensor, which can be measured as output voltage. Based on this voltage value the type and concentration of the gas can be estimated.

2. How to use MQ-5 Gas Sensor?

Power the module with 5V and you should notice the power LED on the module to glow and when no gas it detected the output LED will remain turned off meaning the digital output pin will be 0V. Remember that these sensors have to be kept on for pre-heating time before you can actually work with it. Now, introduce the sensor to the gas you want to detect and you should see the output LED to go high along with the digital pin, if not use the potentiometer until the output gets high. Now every time your sensor gets introduced to this gas at this particular concentration the digital pin will go high (5V) else will remain low (0V).
