MP-4 Metal Cap Natural Gas & Combustible Gas Sensor Module
Let us know!
We'll try to match the price for you
Weโll notify you once the product is back in stock.
Couldn't load pickup availability

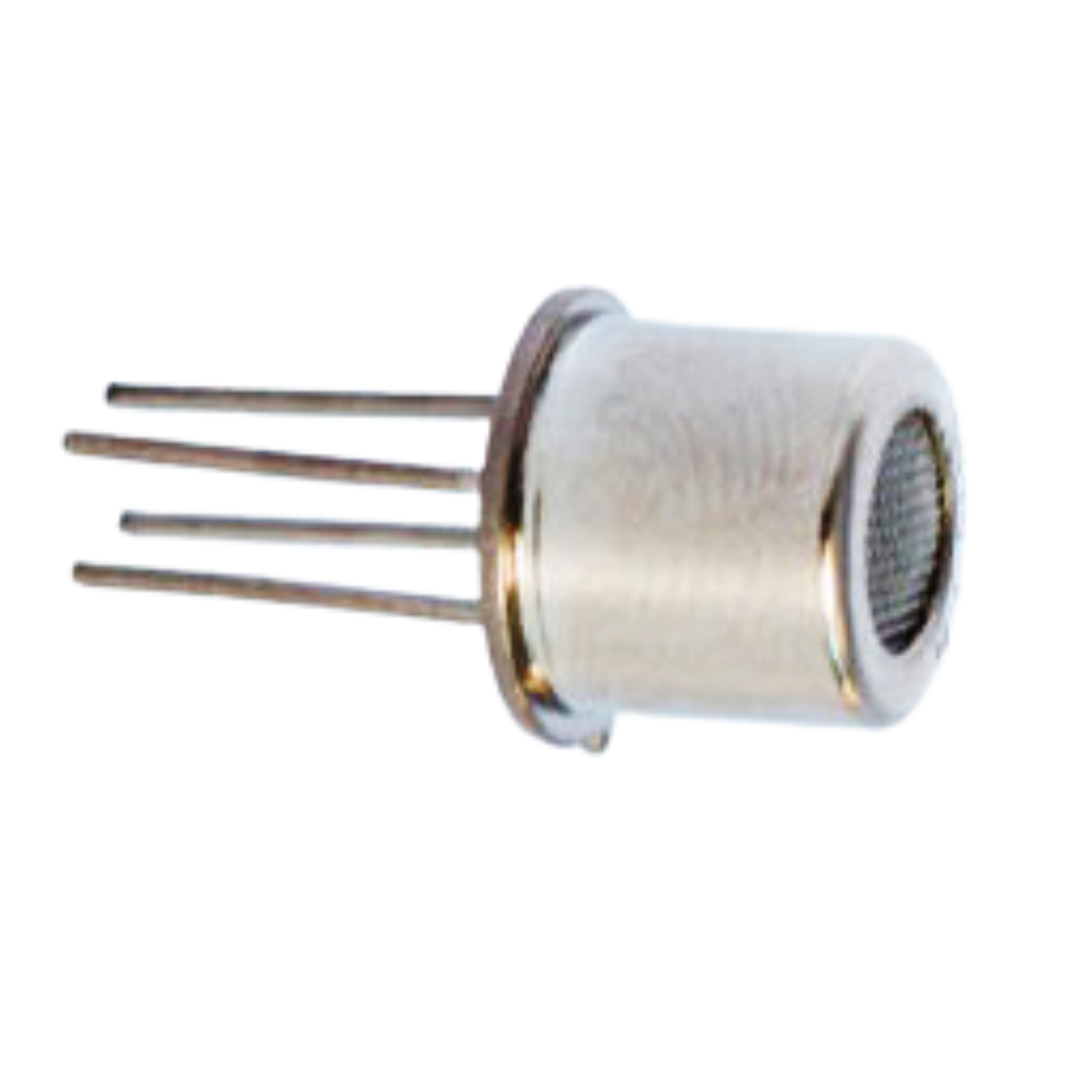

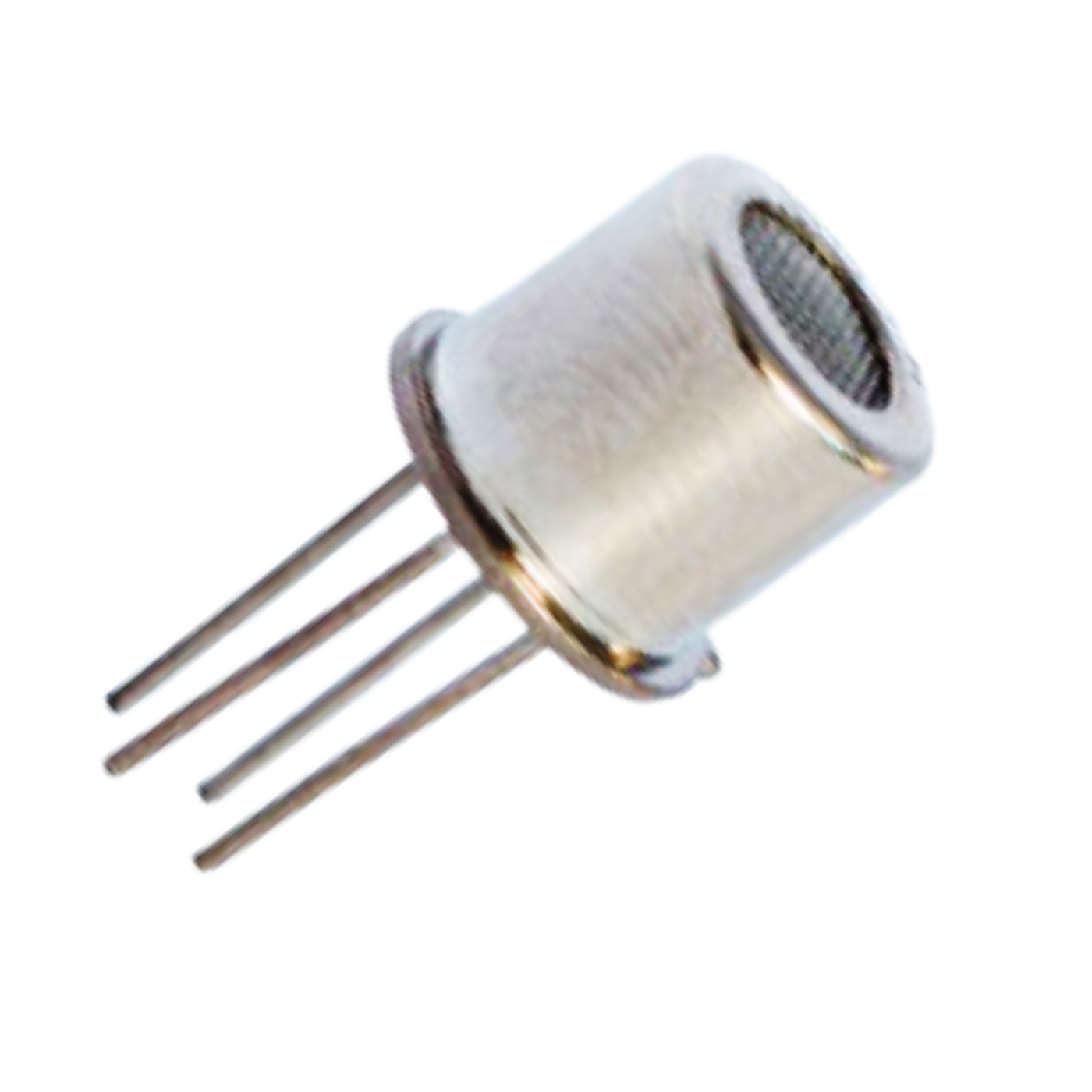

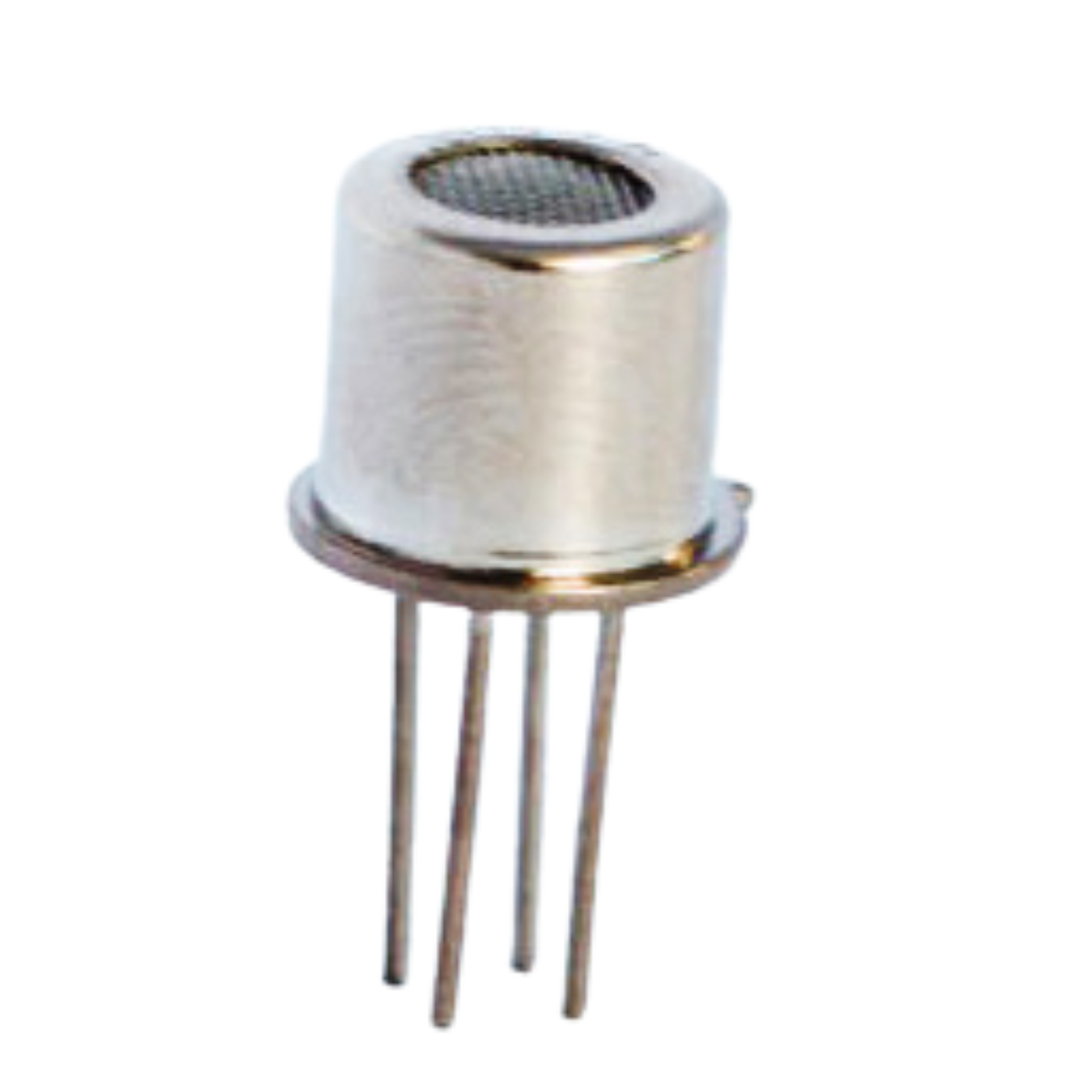

The MP-4 Metal Cap Natural Gas & Combustible Gas Sensor Module is a reliable gas sensor module designed to detect natural gas and various combustible gases in industrial, commercial, and DIY monitoring applications. It utilizes metal oxide semiconductor (MOS) sensing technology with an advanced planar construction, featuring a subminiature AlโOโ (aluminum oxide) ceramic plate, integrated heater, metal oxide semiconductor sensing material, electrode down-leads, and a durable metal base and cap.
As the concentration of the target gas increases, the sensor's conductivity rises proportionally, allowing a simple electronic circuit to convert this conductivity change into a corresponding output signal representing gas concentration. Its compact design, stable sensing performance, and easy interface make the MP-4 natural gas sensor an excellent choice for gas leak detection, smart safety systems, Arduino projects, ESP32 applications, and Raspberry Pi-based gas monitoring solutions.
| Specification | Value |
|---|---|
| Model | MP-4 |
| Sensor Type | Flat surfaced |
| Standard Encapsulation | Metal cap |
| Target Gas | CHโ (Methane), Natural Gas |
| Detection Range | 300โ10000 ppm |
| Loop Voltage (Vc) | โค24V DC |
| Heater Voltage (VH) | 5V ยฑ0.1V AC or DC |
| Load Resistance (RL) | Adjustable |
| Heater Resistance (RH) | 85ฮฉ ยฑ15ฮฉ (Room Temperature) |
| Heater Consumption (PH) | โค350mW |
| Sensitivity (S) | Ro (in air) / Rs (5000ppm CHโ) โฅ5 |
| Sensitive Resistance (Rs) | 1kฮฉโ20kฮฉ (in 5000ppm CHโ) |
| Concentration Slope (ฮฑ) | โค0.6 (R5000ppm/R1000ppm CHโ) |
| Operating Test Temperature | 20ยฐC ยฑ2ยฐC |
| Operating Test Humidity | 55% ยฑ5% RH |
| Standard Test Circuit | Vc: 5V ยฑ0.1V, VH: 5V ยฑ0.1V |
| Preheat Time | Over 48 hours |
