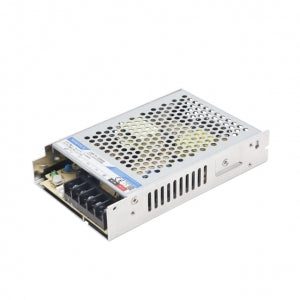

Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply
Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 85-305V AC or 120-430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- High efficiency, high reliability
- Output short circuit, over-current, over-voltage, over-temperature protection (built-in constant current limiting circuit)
- Remote ON-OFF control
- Designed to meet IEC/EN/UL62368, EN60335, GB4943
- EN62368 safety approval
- Over-voltage class Ⅲ (designed to meet EN61558)
- Emissions meet CISPR32/EN55032 CLASS B
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply
The LMF75-23B15 is a 75W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage of 85-305VAC or DC input voltage of 120-430VDC, built-in active PFC function, high efficiency, and high reliability. It also has output short circuit, over-current, over-voltage, and over-temperature protection. The LMF75-23B15 is designed to meet IEC/EN/UL62368, EN60335, GB4943 standards and is widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.
Features:
- Universal AC input voltage of 85-305VAC or DC input voltage of 120-430VDC
- Built-in active PFC function
- High efficiency (up to 87%)
- High reliability
- Output short circuit, over-current, over-voltage, and over-temperature protection
- Designed to meet IEC/EN/UL62368, EN60335, GB4943 standards
- Widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.
check out : Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply
Specifications
| Power | 75W |
| Input voltage | 85-305VAC or 120-430VDC |
| Output voltage | 15V |
| Output current | 5A |
| Efficiency | up to 87% |
| Isolation | 4000VAC |
| Dimensions | 140 x 100 x 40mm |
| Weight | 0.8kg |
