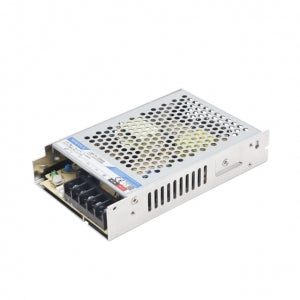

Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply
Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range of 85-305VAC or 120-430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range of -30 to +70 degrees Celsius
- Built-in active PFC function
- High I/O isolation test voltage of up to 4000VAC
- High efficiency and reliability
- Output short circuit, over-current, over-voltage, and over-temperature protection
- Built-in constant current limiting circuit
- Remote ON-OFF control
- Designed to meet IEC/EN/UL62368, EN60335, and GB4943 standards
- EN62368 safety approval
- Over-voltage class III (designed to meet EN61558)
- Emissions meet CISPR32/EN55032 CLASS B
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply
The LMF75-23B05 is a 305RAC type (305VAC-input) enclosed SMPS power supply from Mornsun. It has a power output of 70W, an input voltage range of 85-305VAC, an output voltage of 5VDC, and an output current of 14A. The efficiency of the power supply is 85%, and the isolation voltage is 4000VAC. The power supply is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short-circuit protection.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM75-22B15 AC/DC 75W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply
Specifications
| Power output | 70W |
| Input voltage range | 85-305VAC |
| Output voltage | 5VDC |
| Output current | 14A |
| Efficiency | 85% |
| Dimensions | 170 x 100 x 60mm |
| Weight | 1.5kg |
