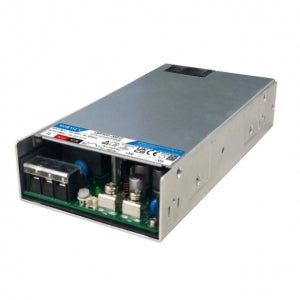

Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply
Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply - Buy Online in India

Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply

Rs. 13,967
Rs. 19,080
Rs. 13,967
Save Rs. 5,113
(-27%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: DTIFPS0434
  • Universal input voltage: 80 - 264VAC or 110 - 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency, activePFC
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit constant current, over-current, over-voltage, over-temperature protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Remote sense compensation, remote ON/OFF function
  • Safety according to IEC/UL62368, IEC/EN60601, EN60335, EN61558

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC1000
COPY CODE
When you shop for ₹ 25,000 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply
Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply
Rs. 19,080 Rs. 13,967
Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply

Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply

Rs. 19,080 Rs. 13,967
Description

Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply

The LMF500-20B48 is a 500W enclosed AC/DC switching power supply from Mornsun. It features a universal input voltage of 80-264VAC or 110-370VDC, and can be used with either AC or DC input. The power supply has a high efficiency of up to 93%, and is equipped with active PFC to help reduce power consumption and improve power factor. The LMF500-20B48 also features a wide operating ambient temperature range of -30 to +70 degrees Celsius, and is protected against short circuit, overcurrent, overvoltage, and overtemperature.

Features

  • Universal input voltage of 80-264VAC or 110-370VDC
  • Accepts AC or DC input (dual-use of the same terminal)
  • High efficiency of up to 93%
  • Active PFC to help reduce power consumption and improve power factor
  • Wide operating ambient temperature range of -30 to +70 degrees Celsius
  • Protected against short circuit, overcurrent, overvoltage, and overtemperature

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Specifications

Package Includes:

1 x  Mornsun LMF500-20B48 AC/DC 500W Enclosed Switching Power Supply

Specifications

Power 500W
Input voltage 80-264VAC or 110-370VDC
Output voltage 48V DC
Output current 10.4A
Efficiency Up to 93%
