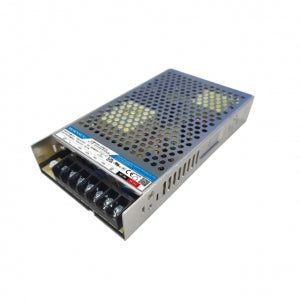

Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply
Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply - Buy Online in India

Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply

Rs. 5,064
Rs. 6,918
Rs. 5,064
Save Rs. 1,854
(-27%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: DTIFPS0423
  • Universal input voltage range of 85-305VAC or 120-430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range of -30℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage of up to 4000VAC
  • Output short circuit, over-current, over-voltage, and over-temperature protection
  • LED indicator for power on
  • Emissions meet CISPR32/EN55032 CLASS B
  • Start-up delay time of less than 5 seconds at -30℃
  • Operating altitude of up to 5000m
  • Safety according to IEC62368, EN60335

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC400
COPY CODE
When you shop for ₹ 10,000 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply
Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply
Rs. 6,918 Rs. 5,064
Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply

Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply

Rs. 6,918 Rs. 5,064
Description

Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply

The LMF200-23B15 is an enclosed AC/DC converter from Mornsun. It has a single output of 15V at 13.4A, for a total power output of 201W. The input voltage range is 85-305VAC or 120-430VDC, and the efficiency is 88%. The isolation voltage is 4000VAC.

The LMF200-23B15 is a versatile power supply that can be used for a variety of applications, including industrial control, medical equipment, and telecommunications. It is also suitable for use in harsh environments, thanks to its IP65 rating.

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply

Specifications

Package Includes:

1 x Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply

Specifications

Output voltage 15V
Output current 13.4A
Total power output 201W
Input voltage range 85-305VAC or 120-430VDC
Efficiency 88%
Isolation voltage 4000VAC
Additional Resources
