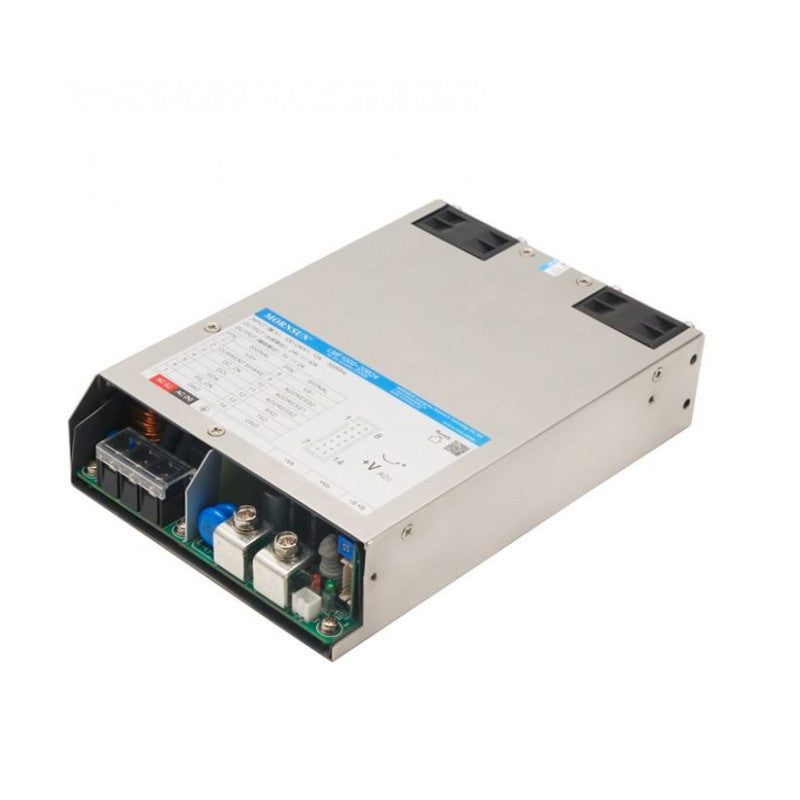

Mornsun LMF1000-20B15 AC/DC1000W Enclosed Switching Power Supply
Mornsun LMF1000-20B15 AC/DC1000W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 20000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Wide range input voltage: 90-264 VAC or 120-370 VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40°C to +70°C (non-condensing)
- High reliability, efficiency up to 94%
- Wide range of adjustable output voltage
- Output short circuit, over-current, over-voltage, over-temperature protection
- Support 3+1 parallel redundancy, current sharing
- Built-in active PFC function
- Operating up to 5000 m altitude
- Fan speed automatic adjustable
- 5 years warranty
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF1000-20B15 AC/DC1000W Enclosed Switching Power Supply
The LMF1000-20B15 series is a universal AC-DC switching power supply from Mornsun. It features a wide input voltage range, low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. The converters offer excellent EMC performance and meet a variety of international standards. They are widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LMF1000-20B24 AC/DC1000W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LMF1000-20B15 AC/DC1000W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 1000W |
| Series |
LMF1000-20B |
| Part Number |
LMF1000-20B15 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 15V |
| Output Current |
64A |
