Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply - Buy Online in India

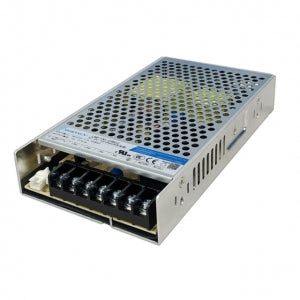

Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

Rs. 3,671
Rs. 5,015
Rs. 3,671
Save Rs. 1,344
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.
SKU: DTIFPS0416
  • Universal 85 to 305V AC or 120 to 430VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range: -30°C to +70°C
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • Up to 87% efficiency
  • Output short circuit, over-current, over-voltage, and over-temperature protection (built-in constant current limiting circuit)
  • Remote ON/OFF control
  • Safety according to IEC/EN60335, IEC/EN61558
  • Emissions meet CISPR32/EN55032 CLASS B without extra components
  • IEC/EN/UL62368, GB4943 safety approval

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC200
COPY CODE
When you shop for ₹ 5,000 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 999/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply
Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply
Rs. 5,015 Rs. 3,671
Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

Rs. 5,015 Rs. 3,671
Description

Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

The LMF100-23B15 is a 15V, 6.7A, 100.5W enclosed AC/DC converter from Mornsun. It has an input voltage range of 85-305VAC or 120-430VDC, and an output voltage of 15V. The efficiency is 86%, and the isolation voltage is 4000VAC. The converter is housed in a compact, rugged enclosure that is suitable for a variety of applications.

Features:

  • 15V, 6.7A, 100.5W output
  • Input voltage range: 85-305VAC or 120-430VDC
  • Efficiency: 86%
  • Isolation voltage: 4000VAC
  • Compact, rugged enclosure

check out : Mornsun LMF150-23B48 AC/DC Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LMF100-23B48 AC/DC 100W Enclosed Switching Power Supply

Specifications

Package Includes:

1 x  Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

Specifications

Output voltage 15V
Output current 6.7A
Output power 100.5W
Input voltage range 85-305VAC or 120-430VDC
Efficiency 86%
Isolation voltage 4000VAC
Dimensions 150 x 100 x 60mm
Weight 1.2kg

Specifications:
