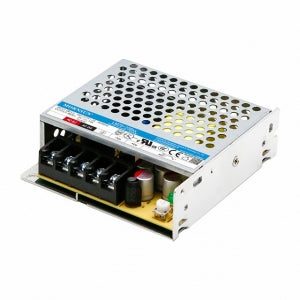

Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Contact form
- Universal 85 - 305VAC or 120 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply
The LM75-23B24 is a 24V, 3.2A, 76.8W enclosed AC-DC switching power supply from Mornsun. It has a universal AC input voltage range of 85 to 305VAC and a DC input voltage range of 120 to 430VDC. The efficiency of the LM75-23B24 is up to 89%, and it has an isolation voltage of 4000VAC. The power supply is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and overload protection.
Features:
- Universal AC input voltage range of 85 to 305VAC
- DC input voltage range of 120 to 430VDC
- Output voltage of 24V
- Output current of 3.2A
- Efficiency of up to 89%
- Isolation voltage of 4000VAC
- Overvoltage protection
- Undervoltage protection
- Overcurrent protection
- Overload protection
check out : Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply
Specifications
| Power | 76.8W |
| Output voltage | 24V |
| Output current | 3.2A |
| Efficiency | up to 89% |
| Isolation voltage | 4000VAC |
| Dimensions | 170 x 110 x 50mm |
| Weight | 1.2kg |
