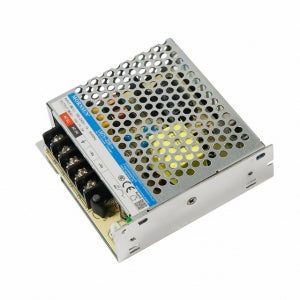

Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Contact form
- Universal input voltage range of 165-264VAC or 200-373VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-Voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply
The LM75-22B48 is a 75W, universal input, enclosed AC/DC power supply from Mornsun. It has a wide input voltage range of 165-264VAC or 200-373VDC, and can output a single regulated DC voltage of 48V at up to 1.6A. The power supply is also equipped with a number of features for safety and reliability, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.
Features:
- Universal input voltage range of 165-264VAC or 200-373VDC
- Single regulated DC output of 48V at up to 1.6A
- Overvoltage protection
- Undervoltage protection
- Overcurrent protection
- Short circuit protection
- Built-in fan for cooling
- Enclosed housing for protection from dust and debris
check out : Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply
Specifications:
| Power | 75W |
| Input voltage | 165-264VAC or 200-373VDC |
| Output voltage | 48V |
| Output current | 1.6A |
| Efficiency | 91.5% |
| Isolation voltage | 4000VAC |
| Dimensions | 190 x 110 x 55mm |
| Weight | 1.2kg |
