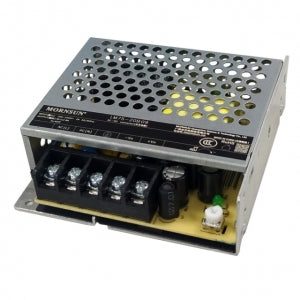

Mornsun LM75-20B09 AC/DC 75W Enclosed Switching Power Supply
The LM75-20B09 is a 72W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input range of 85 to 264VAC, making it suitable for use in a variety of global markets. The LM75-20B09 also has a DC input voltage range of 12 to 36VDC, which allows it to be used with a variety of battery packs.
The LM75-20B09 has a number of features that make it a good choice for a variety of applications, including:
-
High efficiency: The LM75-20B09 has an efficiency of up to 90%, which helps to reduce power consumption and heat dissipation.
-
Low noise: The LM75-20B09 has a low noise output, which makes it suitable for use in noise-sensitive applications.
-
Reliable operation: The LM75-20B09 is designed for reliable operation in a variety of environments. It is protected against overvoltage, overcurrent, and short circuit conditions.
The LM75-20B09 is available in a variety of output voltages, including 5V, 9V, 12V, 15V, and 24V. It is also available in a variety of output currents, ranging from 1A to 3.2A.
The LM75-20B09 is a versatile and reliable AC-DC switching power supply that is suitable for a variety of applications. It is a good choice for use in industrial, commercial, and consumer applications.
check out : Mornsun LM75-22B24 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
