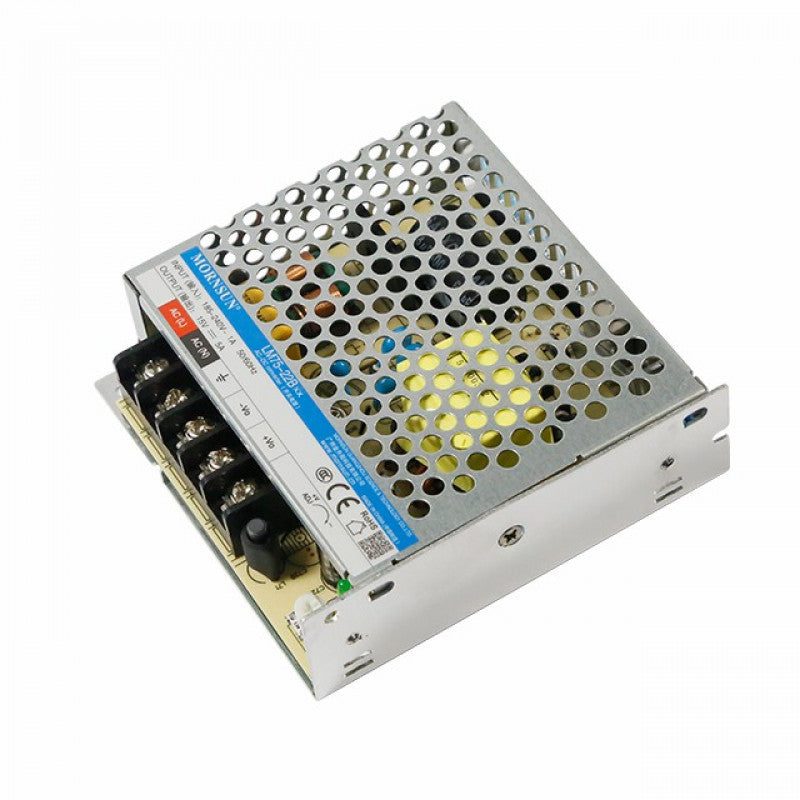

Mornsun LM75-22B24 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-22B24 AC/DC 75W Enclosed Switching Power Supply

Out of stock

Regular price Rs. 1,345
Regular price Rs. 1,838 Sale price Rs. 1,345
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 493
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Input voltage: Universal 165 - 264VAC or 200 - 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃to+70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Over-Voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Mornsun LM75-22B24 AC/DC 75W Enclosed Switching Power Supply

The LM75-22B24 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage range of 165 - 264VAC or 180 - 370VDC, accepts DC input voltage, is cost-effective, has low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets a variety of international standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features

      • Universal input voltage range: 165 - 264VAC or 180 - 370VDC
      • Accepts DC input voltage
      • Cost-effective
      • Low no load power consumption
      • High efficiency
      • High reliability
      • Double or reinforced insulation
      • Excellent EMC performance
      • Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards
      • Wide range of applications: industrial, LED, street light control, electricity, security, telecommunications, and smart home

      Note:

      • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
      • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
      • All index testing methods in this datasheet are based on our company's corporate standards
      • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
      • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
      • The output voltage can be adjusted by the ADJ, clockwise to increase
      • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
      • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

      Package Includes:

      1 x  Mornsun LM75-22B24 AC/DC 75W Enclosed Switching Power Supply

      Specifications:

      Type Enclosed Type Single Output
      Output Power 76.8W
      Series LM75-22B
      Part Number LM75-22B24
      Mechanical Form Enclosed
      IP Level  Non-Waterproof
      Output Voltage 24V
      Output Current 3.2A
