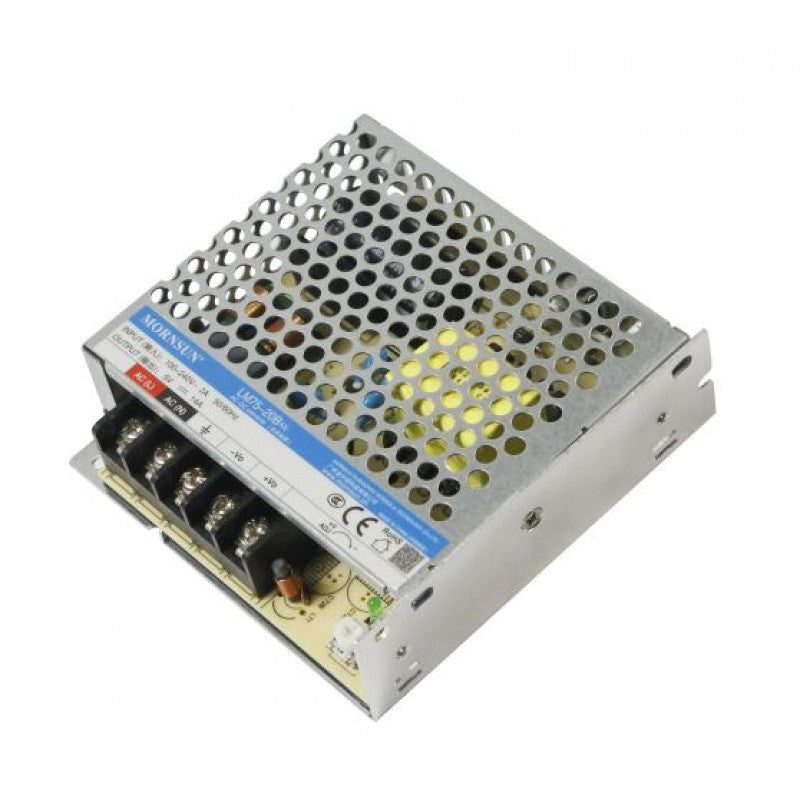

Mornsun LM75-20B05 AC/DC 75W Enclosed SMPS
Mornsun LM75-20B05 AC/DC 75W Enclosed SMPS
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 85 - 264VAC or 120 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-20B05 AC/DC 75W Enclosed SMPS
The LM75-20B05 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features
- Universal AC input
- Accepts DC input voltage
- Cost-effective
- Low no-load power consumption
- High efficiency
- High reliability
- Double or reinforced insulation
- Excellent EMC performance
- Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards
- Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications
check out : Mornsun LM75-20B12 AC/DC 75W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM75-20B09 AC/DC 75W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM75-20B05 AC/DC 75W Enclosed SMPS
Specifications:
Type | Enclosed Type Single Output |
Output Power | 70W |
Series | LM75-20B |
Part Number | LM75-20B05 |
Mechanical Form | Enclosed |
IP Level | Non-Waterproof |
Output Voltage | 5V |
Output Current | 14A |
