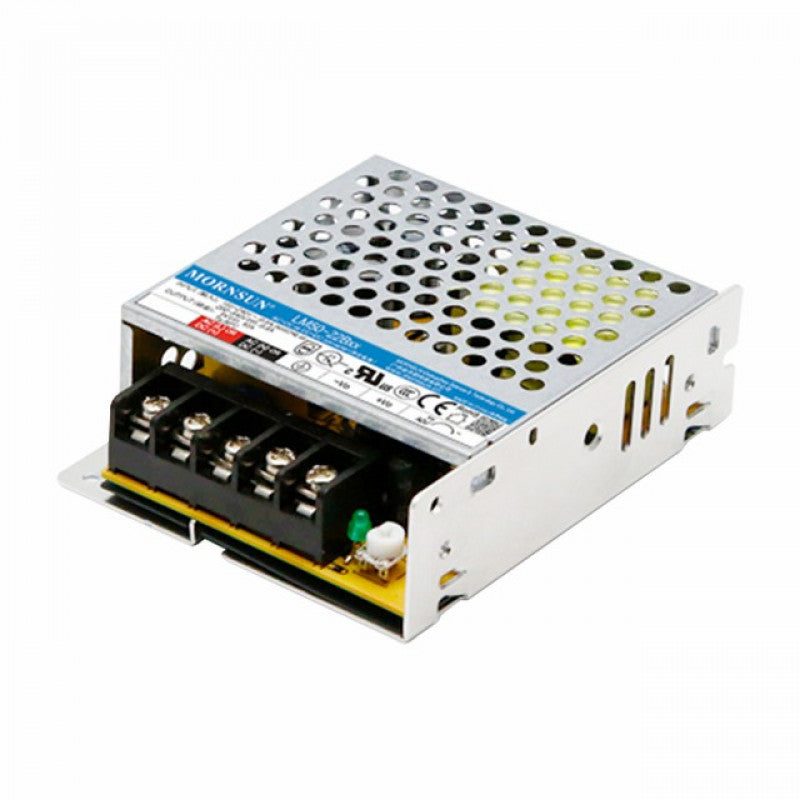

Mornsun LM50-22B12 AC/DC 50W Enclosed Switching Power Supply
Mornsun LM50-22B12 AC/DC 50W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Input voltage: 165 - 264VAC or 180 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM50-22B12 AC/DC 50W Enclosed Switching Power Supply
The LM50-22B12 series is a line of enclosed AC-DC switching power supplies from Mornsun. They feature AC input and DC input voltage acceptance, cost-effectiveness, low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. These converters offer excellent EMC performance and meet a variety of standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558. They are widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features:
- Power output: 50.4 watts
- Input voltage: 165 to 264 volts AC or 180 to 373 volts DC
- Output voltage: 12 volts DC
- Output current: 4.2 amps
- Efficiency: 87%
- Isolation voltage: 4000 volts AC
- Dimensions: 150 x 100 x 55 millimeters
- Weight: 450 grams
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-22B12 AC/DC 50W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 50W |
| Series |
LM50-22B |
| Part Number |
LM50-22B12 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 12V |
| Output Current | 4.2A |
