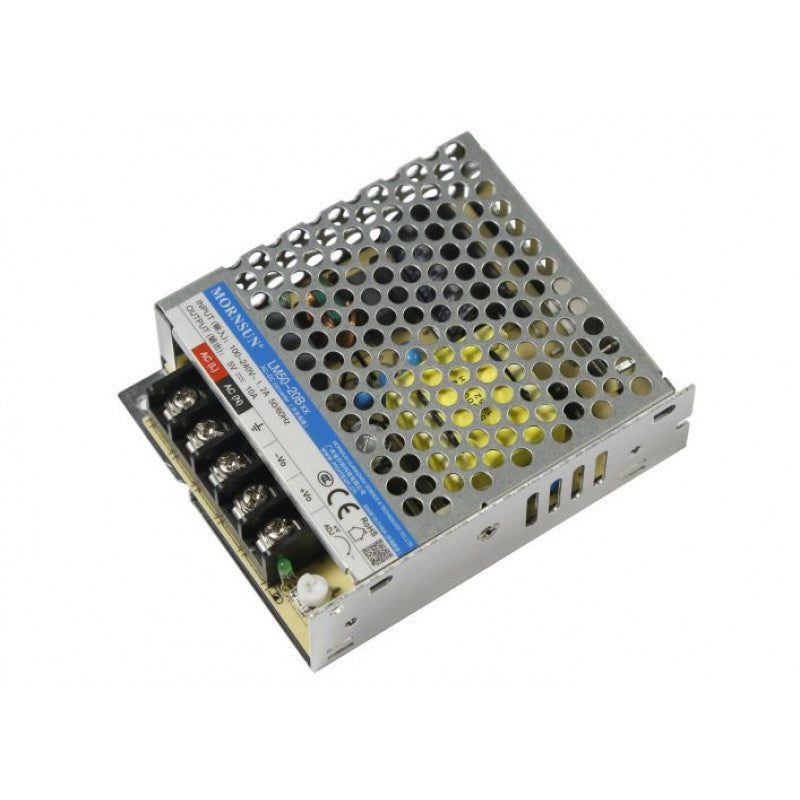

Mornsun LM50-20B05 AC/DC 50W Enclosed Switching Power Supply
The LM50-20B05 is a 50W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, DC input voltage acceptance, cost-effectiveness, low no-load power consumption, high efficiency, high reliability, double or reinforced insulation, excellent EMC performance, and compliance with IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
Features
- Universal AC input: The LM50-20B05 can be powered by AC input voltages from 85 to 264 VAC.
- DC input voltage acceptance: The LM50-20B05 can also be powered by DC input voltages from 120 to 373 VDC.
- Cost-effective: The LM50-20B05 is a cost-effective solution for a wide range of applications.
- Low no-load power consumption: The LM50-20B05 has a low no-load power consumption, which helps to reduce energy costs.
- High efficiency: The LM50-20B05 is highly efficient, which helps to save energy and reduce operating costs.
- High reliability: The LM50-20B05 is designed for high reliability and long operating life.
- Double or reinforced insulation: The LM50-20B05 features double or reinforced insulation for safety.
- Excellent EMC performance: The LM50-20B05 meets all relevant EMC standards, ensuring compatibility with other electronic devices.
- Compliance with international standards: The LM50-20B05 complies with a wide range of international standards, ensuring its safety and reliability.
- Wide range of applications: The LM50-20B05 is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
If you are looking for a cost-effective, reliable, and efficient AC-DC switching power supply, the LM50-20B05 from Mornsun is a great option. It features a wide range of features and benefits, making it a versatile and powerful solution for a variety of applications.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
