Mornsun LM50-10C052412-10 AC/DC 50W Enclosed Switching Power Supply - Buy Online in India

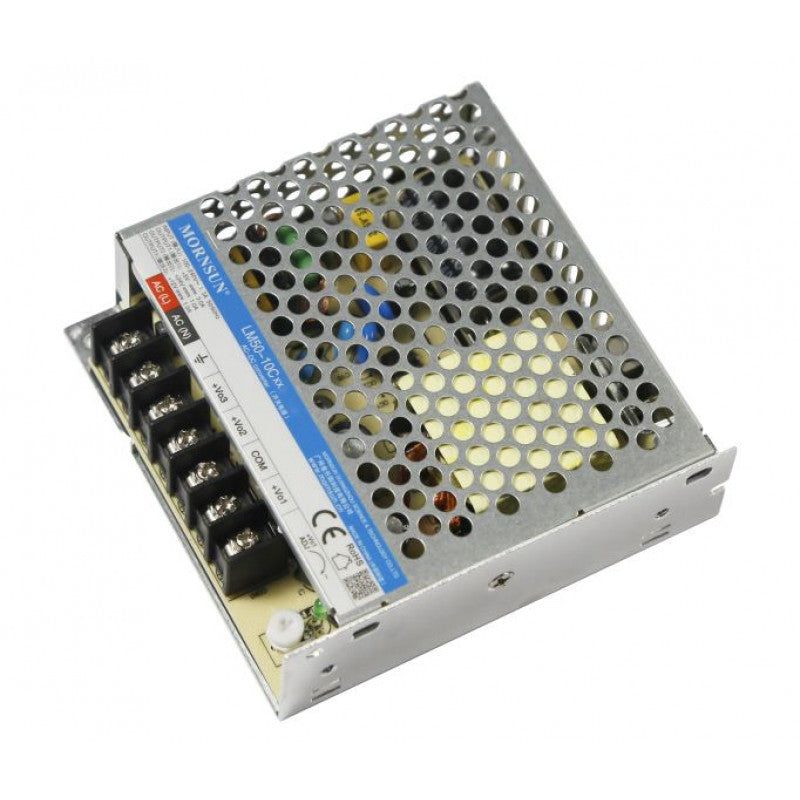

Mornsun LM50-10C052412-10 AC/DC 50W Enclosed Switching Power Supply

The LM50-10C052412-10 is a power converter that can provide three independent outputs, each of which can be used to power a different load. The converter can operate in a wide range of temperatures, from -30°C to +70°C, and does not require a fan for cooling. It also meets the requirements of several safety standards, including IEC/EN/UL62368, EN60335, and GB4943. In addition, the converter offers a variety of protection features, such as short circuit, overcurrent, and overvoltage protection. This makes it a reliable and versatile power solution for a variety of applications, such as industrial control equipment, instrumentation, and smart home and building equipment.

Features

• Three independent outputs
• Wide operating temperature range (-30°C to +70°C)
• Fanless design
• Meets safety standards IEC/EN/UL62368, EN60335, and GB4943
• Variety of protection features
• Reliable and versatile power solution for a variety of applications

check out : Mornsun LM50-10C051515-15 AC/DC 50W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
