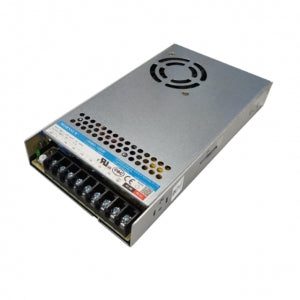

Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS
Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Input voltage range: 176 - 264VAC or 240 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Ultra low standby power consumption <0.75W@230VAC
- Operating ambient temperature range: -30℃ to +70℃
- LED indicator for power on
- Operating up to 5000m altitude
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS
Sure. The LM350-12B05 is a 350W AC-DC switching power supply from Mornsun. It features a universal input voltage range of 176-264VAC or 240-373VDC, and can output a single regulated DC voltage of 12V. The power supply has a high efficiency of up to 87%, and is designed for use in a variety of applications, including industrial automation, control panels, and LED lighting.
check out : Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS
Specifications:
| Specification | Value |
|---|---|
| Output power | 350W |
| Output voltage | 12V |
| Input voltage range | 176-264VAC or 240-373VDC |
| Efficiency | up to 87% |
| Dimensions | 215 x 115 x 30mm (L x W x H) |
| Weight | 1.5kg |
| Operating temperature | -30 to +70 Deg C |
| Cooling method | Free air convection |
| Humidity | 95% RH Non-Condensing |
