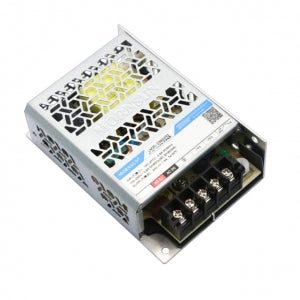

Mornsun LM35-23B12R2 AC/DC 35W Enclosed SMPS
Mornsun LM35-23B12R2 AC/DC 35W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range: 80 - 305VAC or 100 - 430VDC
- Accepts both AC and DC input (dual-use of the same terminal)
- Operating ambient temperature range: -40°C to +85°C
- Low standby power consumption and high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple and noise
- Protection features for output short circuit, over-current, and over-voltage
- Designed to meet OVC III safety standard (EN62477)
- Operating altitude up to 5000m
Mornsun LM35-23B12R2 AC/DC 35W Enclosed SMPS
The LM35-23B12R2 is a compact, enclosed AC/DC converter that provides a regulated 12V output at up to 3A of current. It is ideal for a variety of applications, including industrial control, medical equipment, and telecommunications.
The LM35-23B12R2 features a wide input voltage range of 80-305 VAC or 100-430 VDC, making it suitable for use in a variety of global markets. It also has a high efficiency of up to 87.5%, which helps to reduce power consumption and heat dissipation.
read more : Mornsun LM35-23B15 AC/DC 35W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-23B12R2 AC/DC 35W Enclosed SMPS
Specifications:
| Specification | Value |
|---|---|
| Model | LM35-23B12R2 |
| Power | 36W |
| Input Voltage | 80-305 VAC or 100-430 VDC |
| Output Voltage | 12V |
| Output Current | 3A |
| Efficiency | 87.5% |
| Isolation | 4000VAC |
| Weight | 0.75kg |
| Dimensions | 120 x 80 x 50mm |
