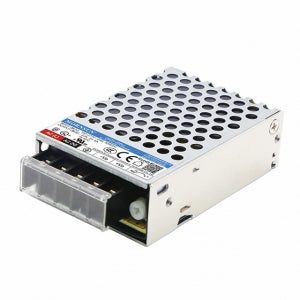

Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply
Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 1,182
Regular price
Rs. 1,615
Sale price
Rs. 1,182
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Wide input voltage range: 85 - 305VAC or 100 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Up to 88% efficiency
- No-load power consumption < 0.5W
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply
The LM25-23B48 is a 48V, 27.36W AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 100-430VDC, making it suitable for use in a variety of applications. The power supply is also protected against overvoltage, undervoltage, overcurrent, and short circuit.
Features:
- 48V output voltage
- 27.36W output power
- Wide input voltage range: 85-305VAC or 100-430VDC
- Protection against overvoltage, undervoltage, overcurrent, and short circuit
- Compact and lightweight design
- Conformal coated for environmental protection
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply
Specifications:
| Output voltage | 48V |
| Output current | 0.58A |
| Output power | 27.36W |
| Input voltage range | 85-305VAC or 100-430VDC |
| Protection | Overvoltage, undervoltage, overcurrent, short circuit |
| Dimensions | 140 x 90 x 40mm |
| Weight | 0.7kg |
