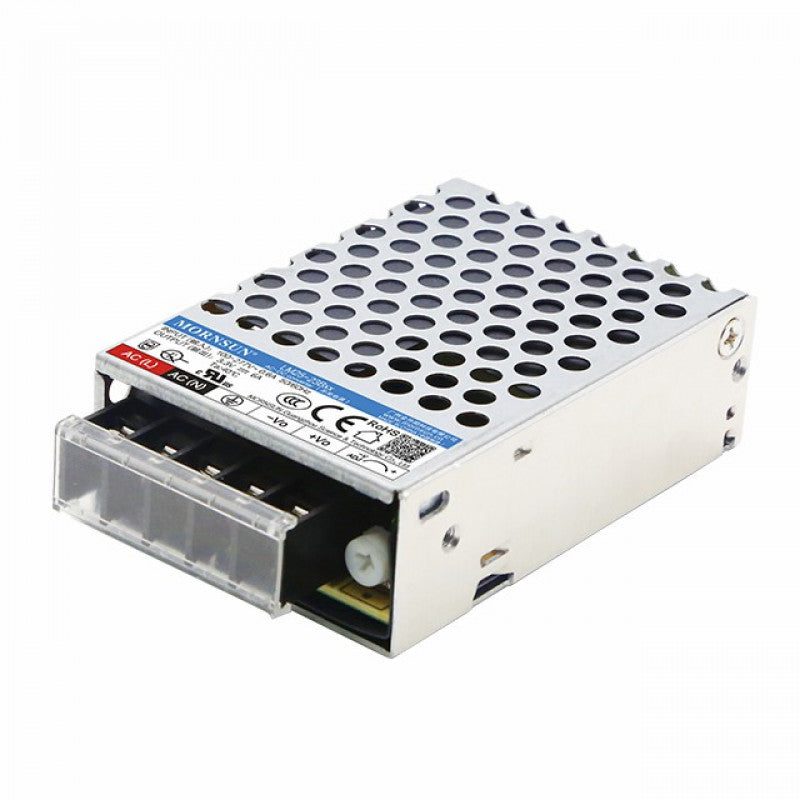

Mornsun LM25-23B24 AC/DC 25W Enclosed SMPS

Mornsun LM25-23B24 AC/DC 25W Enclosed SMPS

Out of stock

Regular price Rs. 1,049
Regular price Rs. 1,433 Sale price Rs. 1,049
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 384 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Input voltage: 85 - 305VAC or 100 - 430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Efficiency: Up to 88%
  • No-load power consumption: < 0.5W
  • I/O isolation test voltage: Up to 4000VAC
  • Output protection: Short circuit, over-current, over-voltage
  • Over-voltage class: Ⅲ (designed to meet EN61558)
  • Operating altitude: Up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM25-23B24 AC/DC 25W Enclosed SMPS

The LM25-23B24 series is a cost-effective, enclosed AC-DC switching power supply from Mornsun. It features AC input and accepts DC input voltage, has low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

  • AC input and DC input voltage acceptance
  • Low no load power consumption
  • High efficiency
  • High reliability
  • Double or reinforced insulation
  • Excellent EMC performance
  • Meets a variety of industry standards
  • Widely used in a variety of industries

If you are looking for a cost-effective, enclosed AC-DC switching power supply with a wide range of features, the LM25-23B24 series is a great option.

check out : Mornsun LM25-23B03 AC/DC 25W Enclosed SMPS

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM25-23B05 AC/DC 25W Enclosed SMPS

Package Includes:

1 x  Mornsun LM25-23B24 AC/DC 25W Enclosed SMPS

Specifications:

Type Enclosed Type Single Output
Output Power 25W
Series LM25-23B
Part Number LM25-23B24
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 24V
Output Current 1.1A
