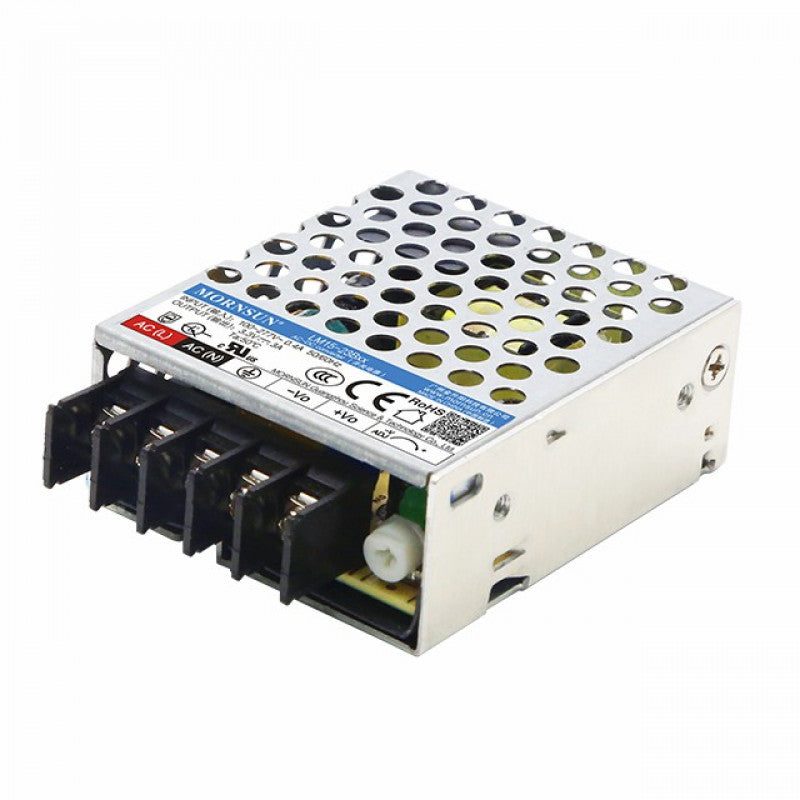

Mornsun LM15-23B24 AC/DC 15W Enclosed SMPS

Mornsun LM15-23B24 AC/DC 15W Enclosed SMPS

Out of stock

Regular price Rs. 871
Regular price Rs. 1,190 Sale price Rs. 871
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 319 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Input voltage range: 85 - 305VAC or 100 - 430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Up to 83% efficiency
  • No-load power consumption < 0.5W
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating up to 5000m altitude

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM15-23B24 AC/DC 15W Enclosed SMPS

The LM15-23B24 series is an enclosed AC-DC switching power supply from Mornsun. It features a wide input voltage range, accepts AC or DC input, and has low no load power consumption. It is also highly efficient, reliable, and has double or reinforced insulation. The LM15-23B24 series meets a variety of standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

      • Wide input voltage range: 85 - 305VAC or 100 - 430VDC
      • Accepts AC or DC input
      • Low no load power consumption
      • High efficiency
      • High reliability
      • Double or reinforced insulation
      • Meets a variety of standards
      • Widely used in a variety of industries

      check out : Mornsun LM15-23B15 AC/DC 15W Enclosed SMPS

      If you are looking for a versatile and reliable AC-DC switching power supply, the LM15-23B24 series is a great option. It is sure to meet your needs in a variety of applications.

      Note:

      • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
      • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
      • All index testing methods in this datasheet are based on our company's corporate standards
      • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
      • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
      • The output voltage can be adjusted by the ADJ, clockwise to increase
      • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
      • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

      Package Includes:

      1 x Mornsun LM15-23B24 AC/DC 15W Enclosed SMPS

      Specifications:

      Type Enclosed Type Single Output
      Output Power 15W
      Series LM15-23B
      Part Number LM15-23B24
      Mechanical Form Enclosed
      IP Level  Non-Waterproof
      Output Voltage 24V
      Output Current 0.625A
