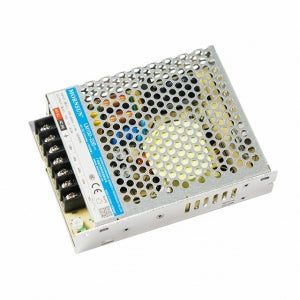

Mornsun LM100-22B15 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-22B15 AC/DC 100W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 165 - 264VAC or 200 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-22B15 AC/DC 100W Enclosed Switching Power Supply
The LM100-22B15 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 165-264 VAC and 200-370 VDC. The power supply has a maximum power output of 105 Watts and an efficiency rating of 87.5%. It offers a 15V DC output with a maximum current output of 7A. The LM100-22B15 is designed with a high level of isolation, providing a safety rating of 4000VAC. It is suitable for various industrial applications.
Features:
- Wide input voltage range: 165-264 VAC, 200-370 VDC
- Power output: 105 Watts
- Input voltage: 165-264 VAC, 200-370 VDC
- Output voltage: 15V DC
- Maximum output current: 7A
- Efficiency: 87.5%
- High level of isolation: 4000VAC
check out : Mornsun LM100-22B12 AC/DC 100W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM100-22B15 AC/DC 100W Enclosed Switching Power Supply
Specifications:
| Power (W) | 105 |
| Vin (VAC) | 165-264 |
| Vin (VDC) | 200-370 |
| Vout (VDC) | 15 |
| Iout | 7A |
| Efficiency (%) | 87.5 |
| Isolation | 4000VAC |
