Mornsun LM100-10C051515-30 AC/DC 100W Enclosed Switching Power Supply - Buy Online in India

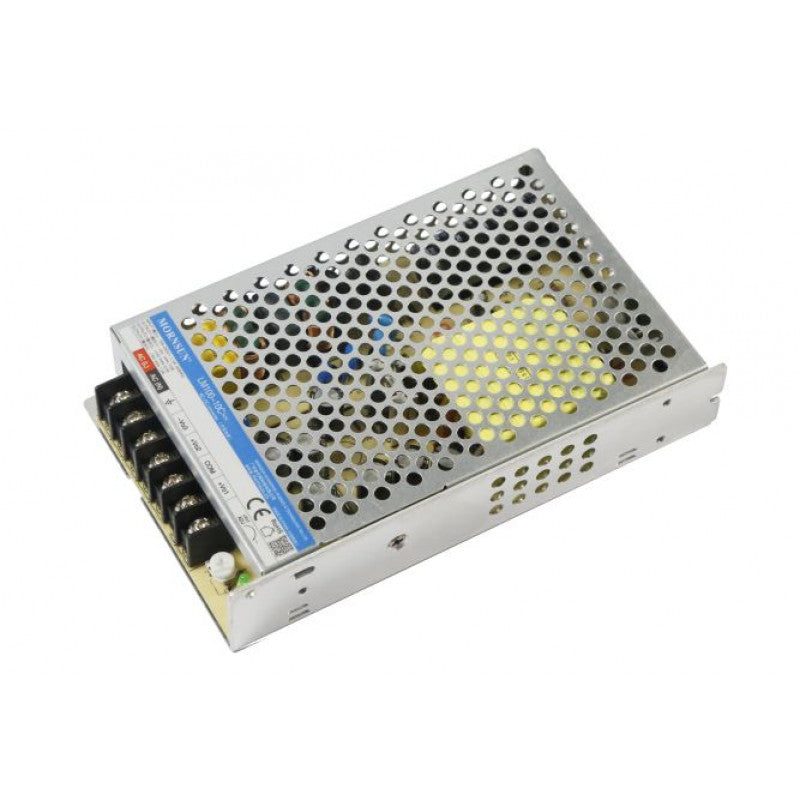

Mornsun LM100-10C051515-30 AC/DC 100W Enclosed Switching Power Supply

The LM100-10C051515-30 is a power converter that features three independent output versions. This allows it to supply three different loads in a system simultaneously. The product can be used in harsh environments, with an ambient temperature range of -30 to +70 degrees Celsius. It does not require a fan for cooling, which makes it ideal for use in noise-sensitive applications.

The LM100-10C051515-30 meets the requirements of several safety standards, including IEC61000, CISPR32/EN55032, IEC/EN/UL62368, EN60335, and GB4943. It also features a variety of protection features, such as overload protection, overvoltage protection, and undervoltage protection.

The LM100-10C051515-30 offers a high-performance to low-cost ratio, making it a cost-effective solution for a variety of industries. It is ideal for use in industrial control equipment, instrumentation, smart home and building equipment, and other applications.

Features

• Three independent output versions
• Wide operating temperature range
• No fan required
• Meets multiple safety standards
• Features a variety of protection features
• High-performance to low-cost ratio

The LM100-10C051515-30 is a versatile and powerful power converter that is ideal for a variety of applications.

check out : Mornsun LM100-10C051212-35 AC/DC 100W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
