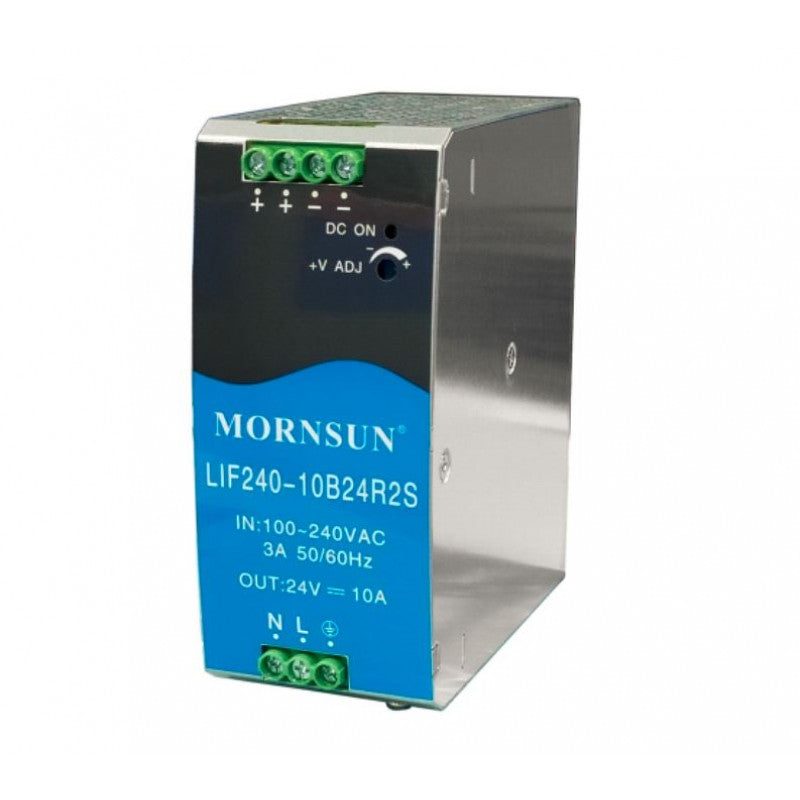

Mornsun LIF240-10B24R2S AC/DC 240W DIN-Rail Power Supply
Mornsun LIF240-10B24R2S AC/DC 240W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85 - 264VAC or 120 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- High efficiency, high reliability
- Built-in active PFC function
- 150% peak load output for 3 seconds
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
- Safety according to IEC/UL62368, UL508, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LIF240-10B24R2S AC/DC 240W DIN-Rail Power Supply
The LIF240-10B24R2S is a cost-effective, energy efficient, and green AC-DC converter series from Mornsun. It is designed for standard DIN-rail mounting and offers a high level of stability and immunity to noise. The converters are lightweight and have an extremely compact design, making them ideal for space-saving applications. They also have good EMC performance and meet international IEC/EN/UL/BS EN 62368, UL61010 standards for EMC and safety.
Features
- Cost-effective
- Energy efficient
- Green
- Standard DIN-rail mounting
- High level of stability and immunity to noise
- Lightweight
- Extremely compact design
- Good EMC performance
- Meets international IEC/EN/UL/BS EN 62368, UL61010 standards for EMC and safety
If you are looking for a cost-effective, energy efficient, and green AC-DC converter with a high level of stability and immunity to noise, the LIF240-10B24R2S is a great option.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LIF240-10B24R2S AC/DC 240W DIN-Rail Power Supply
Specifications
| Type | DIN Rail Single Output |
| Output Power | 240W |
| Series | LIF240-10B |
| Part Number | LIF240-10B24R2S |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 24V |
| Output Current | 10A |
