MICRO:BIT BBC SBC

Regular price
Rs. 1,298
Sale price
Rs. 1,298
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • The BBC Microbit is integrated with a 32-bit ARM Cortex M0 CPU microprocessor and is controlled by a separate processor.
  • On-board motion detector or 3-AXIS digital accelerometer that can detect movement with a built in in compass, 3D magnetometer to sense which direction you are facing and detect the presence of certain metals and magnets.
  • The device can be powered by a regular USB connector and the device operates at 3.3V

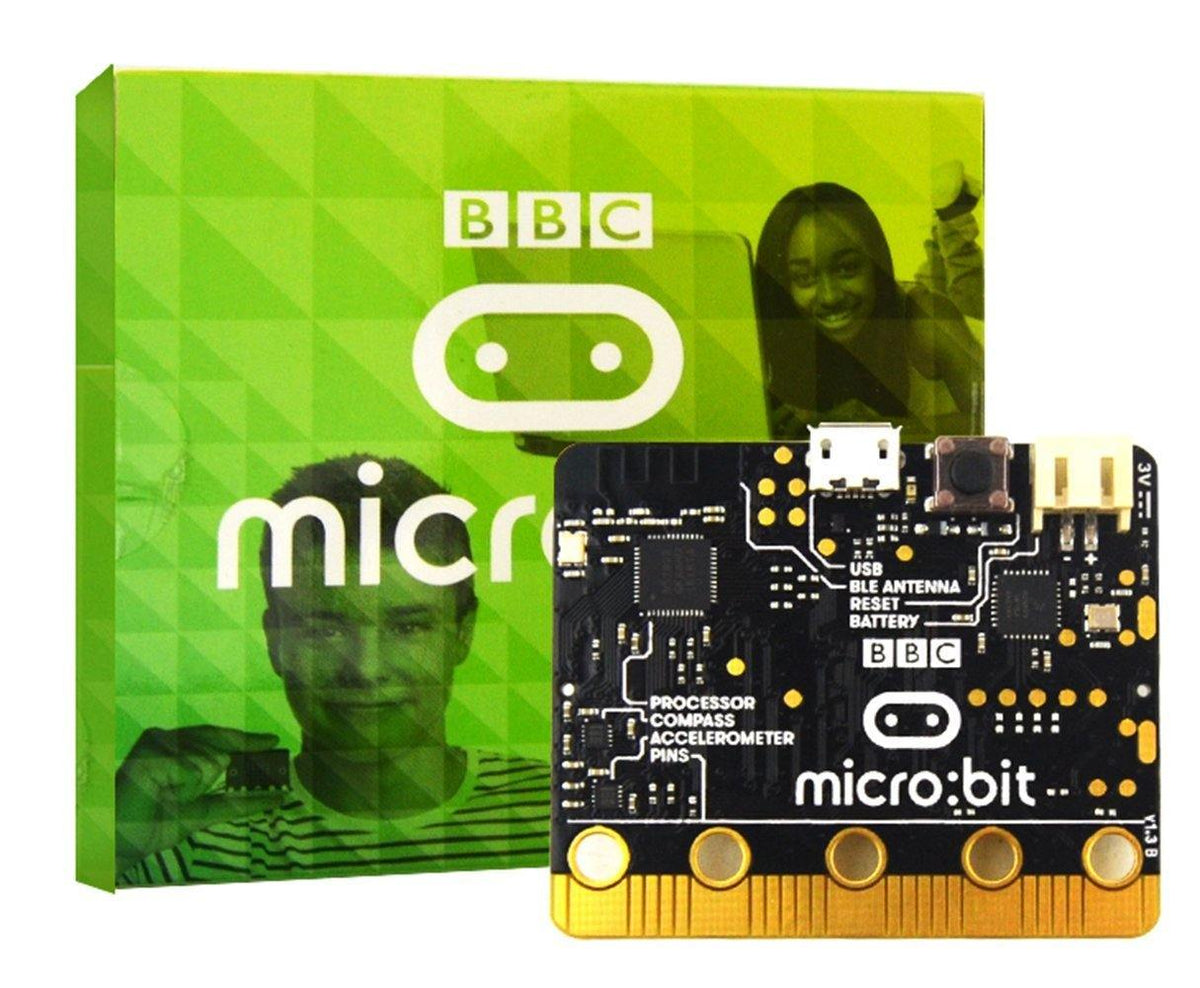

Micro:Bit BBC

The micro: bit is an open development board that allows you to run code on it and has access to all of the hardware. You can use your micro: bit for all sorts of cool creations, from robots to musical instruments – the possibilities are endless.

This little Micro:Bit device has an awful lot of features, like 25 red LED lights that can flash messages. There are two programmable buttons that can be used to control games or pause and skip songs on a playlist. Your micro: bit can detect motion and tell you which direction you’re heading in, and it can use a low energy Bluetooth connection to interact with other devices and the Internet.

Key features include

  • Bluetooth 4.0
  • 3-axis motion sensor
  • Magnetometer
  • Temperature
  • Light Sensor
  • 2x programmable buttons
  • 25 pins
  • Can be programmed using C++, MakeCode, Python, Scratch

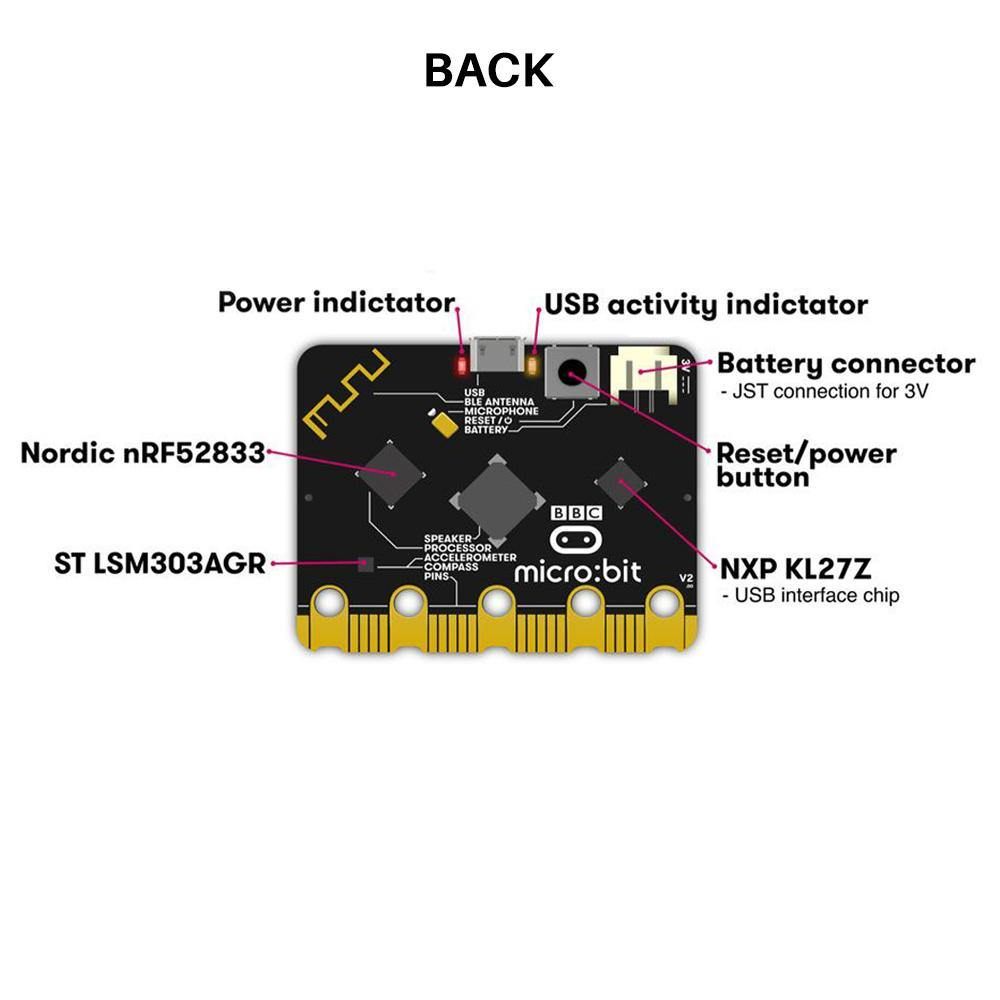

Microbit on-board Pinout









Package Includes:

  • 1 x BBC Micro:Bit
  • 1 x USB cable
  • 1 x Help Guide

BBC Micro:bit Tech Specs

Model

BBC Micro:Bit

Microprocessor

32-bit ARM Cortex M0 CPU

System push button switch

 X 1

LED Matrix

5×5 LED matrix

Edge connector

20 pins

Sensors

-          3-axis motion sensor

-          Magnetometer

-          Temperature

-          Light Sensor

Dimension (approx)

17x10x2.5cms

Weight

120 grams
