MG995 High Speed Servo Motor(360 Degree)
People Also Buy

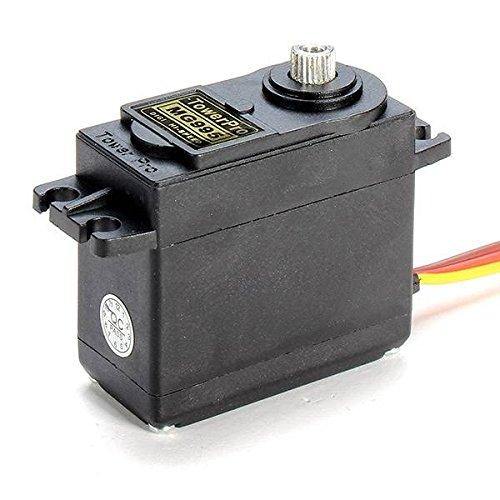

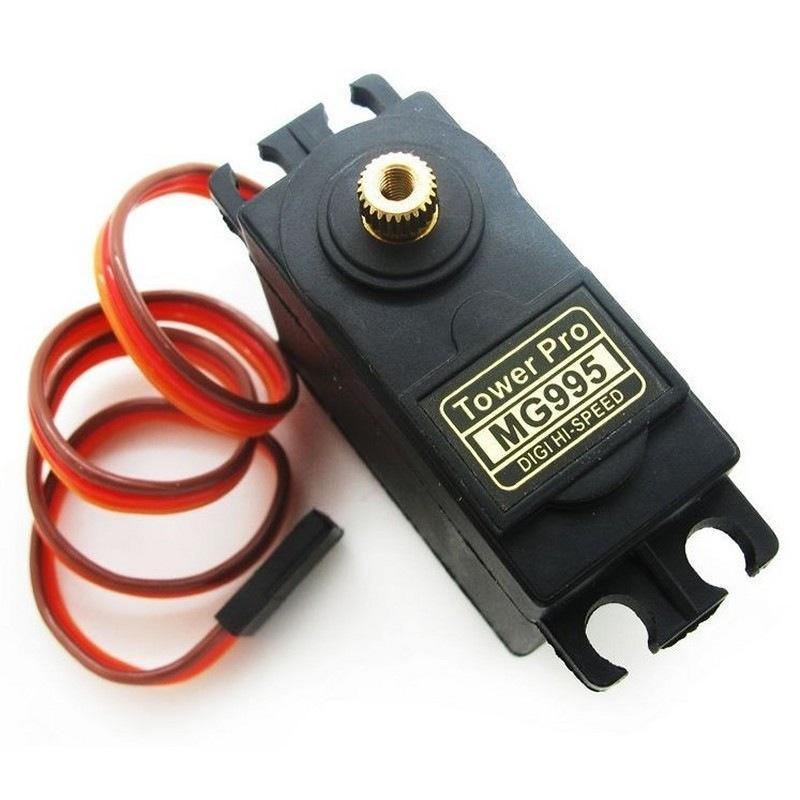

MG995 High-Speed Servo Motor(360 Degree)
TowerPro MG995 – Continuous Rotation 360° Servo Motor is a high-speed standard servo that can rotate 360 degrees. You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. The MG995 Servo also comes with a selection of arms and hardware to get you set up nice and fast. The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.
It is a Digital Servo Motor which receives and processes PWM signal faster and better. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.
It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.
- RED – Positive
- Brown – Negative
- Orange – Signal
Applications:
- RC planes
- RC Boats
- RC Monster Trucks

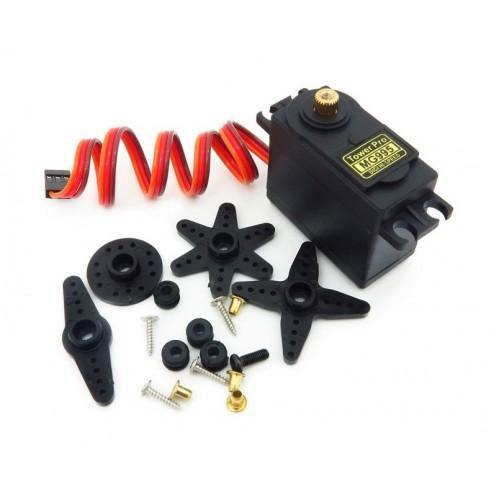

Package Includes:
- 1 x TowerPro MG995 Servo Motor with Cable

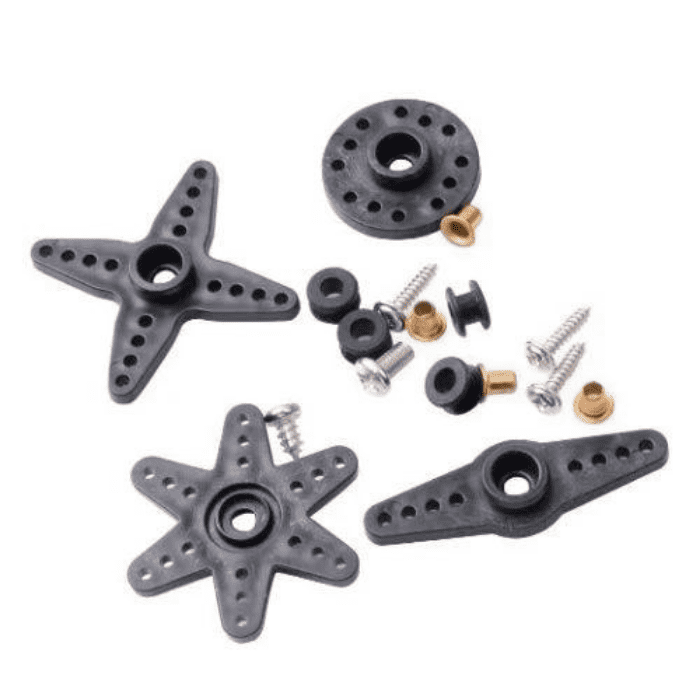

- 1 x Set of Horns[One Point, Two Point, Four Point]
- 1 x Set of Screws
- 1 x Aluminum Servo Horn Arm
Specifications:
|
Control System: |
Analog |
|
Operation Voltage |
4.8 – 7.2V |
|
Servo type |
analog servo |
|
Speed |
4.8V: 0.20 sec/60°, 6.0V: 0.16 sec/60° |
|
Rotation angle |
360° |
|
Torque |
4.8V: 130.5 oz-in (9.40 kg-cm), 6.0V: 152.8 oz-in (11.00 kg-cm) |
|
Operating temperature: |
30 ~ + 60 ° |
|
Dimension |
40.7 × 19.7 × 42.9 mm |
|
Weight |
55g |
1. How does a 360-degree servo work?
- A continuous rotation servo (also known as a full rotation or 360° servo) resembles a standard hobby servo. A continuous rotation servo has a shaft that spins continuously, with control over its speed and direction, as opposed to a regular servo motor, which only turns over a narrow range with precise position control.
2. Where can I use the MG995 servo motor?
- The MG995 Continuous Rotation 360 Degrees Servo Motor is a high-speed standard servo with 360-degree rotation. This servo motor is suitable for use in RC planes, RC boats, and RC monster trucks.
3. What is MG995 servo?
- The MG995 Continuous Rotation 360 Degrees Metal Gear Servo Motor is a high-speed standard servo with 360-degree rotation capability. You can control these servos with any servo code, hardware, or library, making it ideal for beginners who want to make things move without building a motor controller with feedback and gearbox, especially since it will fit in small spaces.
4. Is MG995 a continuous servo?
- Yes, TowerPro MG995 - Continuous Rotation 360° Metal Gear Servo Motor is a standard high-speed servo that can rotate 360 degrees.
