- High speed, replaceable MAX232 based. The device fitted supports up to 120kbps
- Works with PCs or Laptops
- Supports microcontroller UARTs – 5V TTL signal levels.
- Single DC supply: wide input range for 4201 or 5V for 4202 and 4203

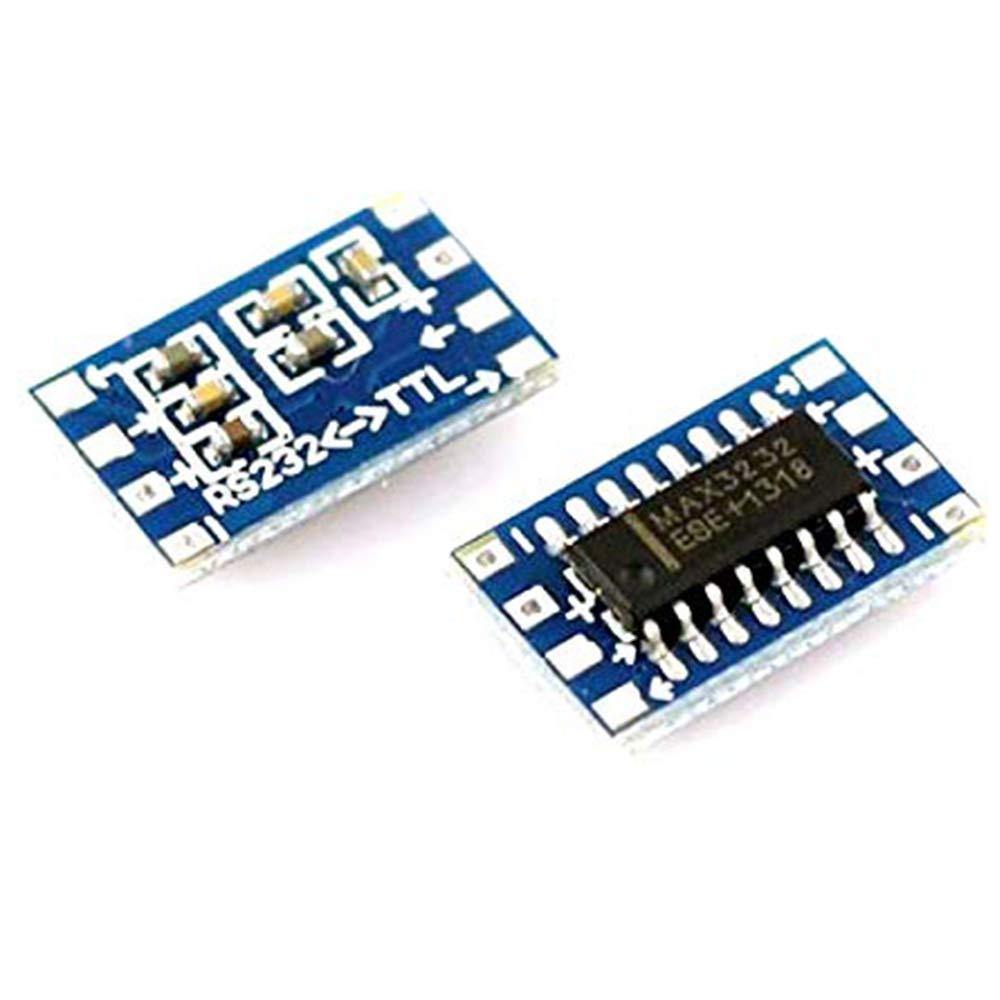

MAX3232 Mini RS232 to TTL Module
The RS232 to TTL 5V Signal Converter Module is a professional module for projects requiring PC/Laptop RS232 interface to 5V TTL logic. This module converts signals between RS232 voltage levels and TTL voltage levels. It is bi-directional, where TTL signals are converted to RS232 levels and RS232 levels are converted to TTL levels. It is ideal for use in pc interfacing, microcontroller based projects, robotics, or for experimental and educational purposes.

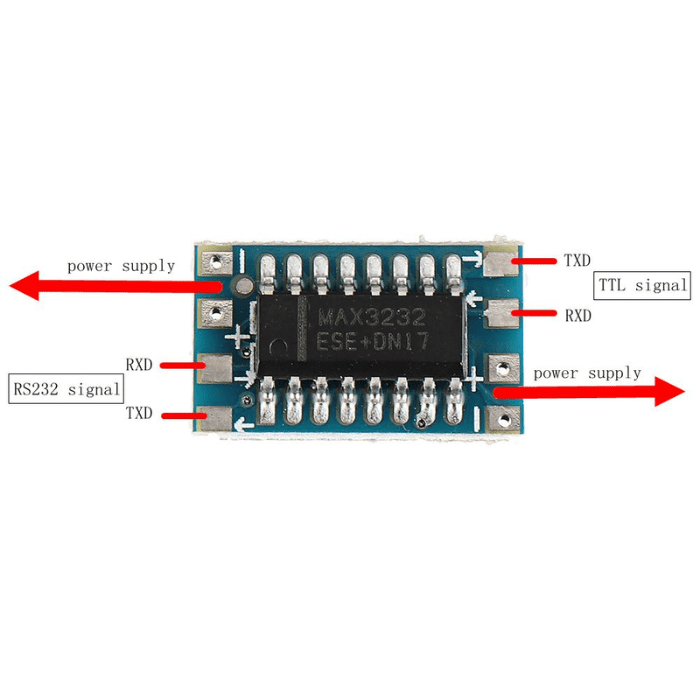

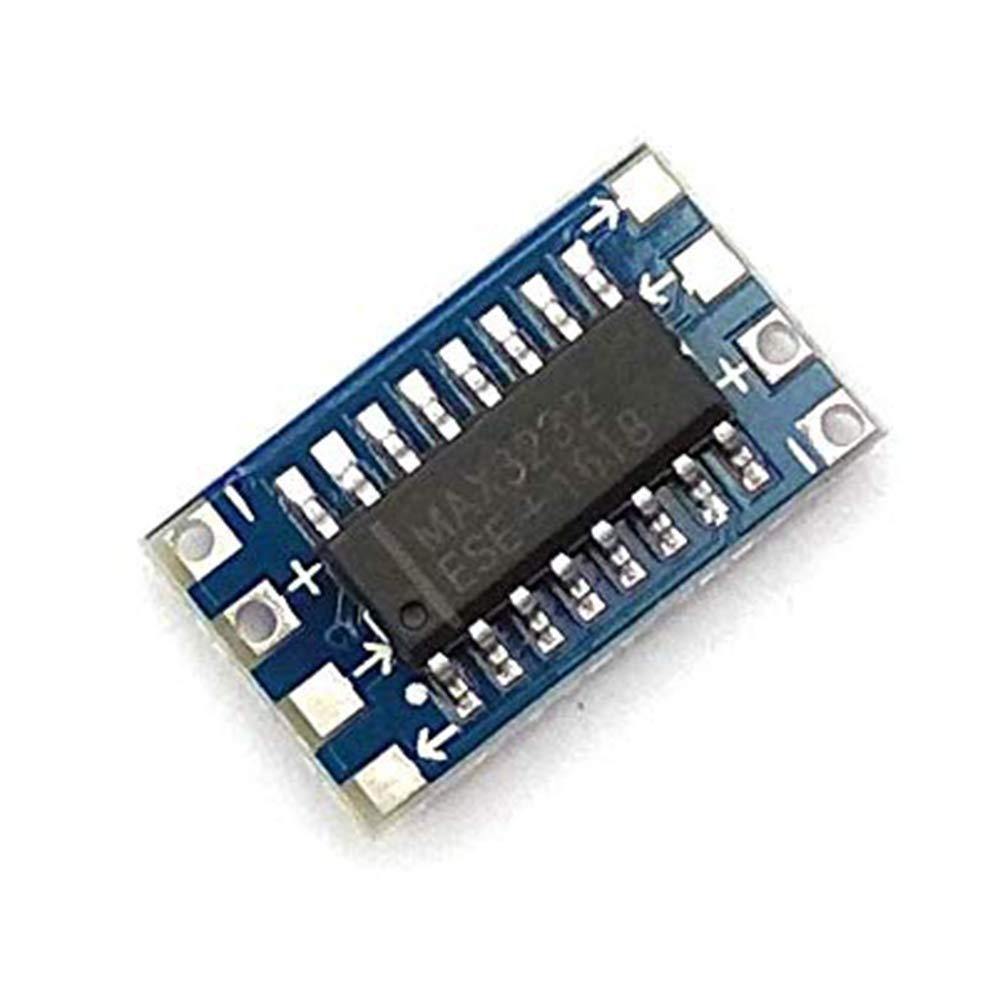

Pin-outs :
- – (0V)
- +(VCC 3.0~5.5V)
- TTL-TXD
- TTL-RXD
- -(0V)
- +(VCC 3.0~5.5V)
- RS232-RX
- RS232-TX
Package Includes:
- 1 x MAX3232 Mini RS232 to TTL Module
Specifications:
| Operating Voltage (VDC) | 3 ~ 5 |
| Max. Baud Rate | No more than 120kbps. |
| Operation | Full Duplex |
| Receiver Hysteresis | 300mV |
| Dimensions in mm | 16.22 x 10.3 x 3.5 |
| Weight | 5 grams |
