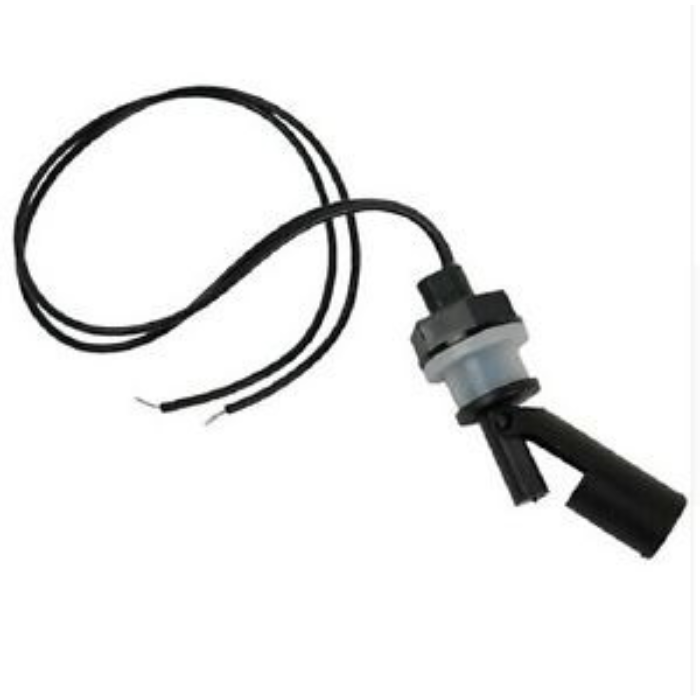

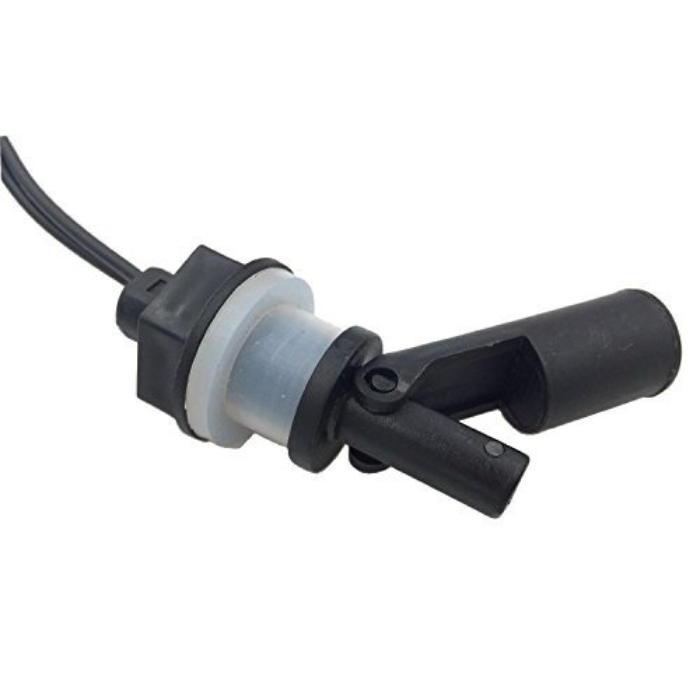

Magnetic Float Sensor FSH01 (Horizontal)

Magnetic Float Sensor FSH01 (Horizontal)

Rs. 188
Rs. 299 Rs. 188
Sale Sold out 37% off Best Price Guaranteed
You save Rs. 111 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 14 hours and 17 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This sensor has to be installed in vertical position.
  • This sensor consists of a magnetic reed switch and a magnet.
  • Application : Any liquids including water, oil, and chemicals.
  • Among high accuracy reed switches, only those that meet our original standards are used to ensure stable operation over the long service life.
Trust Badge 1 Trust Badge 2 Trust Badge 3

Magnetic Float Sensor FSH01 (Horizontal)

A magnetic float sensor FSH01 (horizontal) is a type of level sensor that is used to detect the level of a liquid in a tank or container. It consists of a float that contains a magnet, and a reed switch that is mounted on the side of the tank. As the float rises or falls with the level of the liquid, it activates or deactivates the reed switch by moving the magnet closer to or farther away from the switch. The FSH01 sensor is designed to be installed in a horizontal orientation, with the float and the reed switch positioned on the same plane. The sensor is often used in applications where the liquid level needs to be monitored or controlled, such as in sump pumps, water tanks, and overflow protection systems. It is typically used with liquids that are compatible with the materials used in the sensor, and it may have a maximum operating temperature and pressure rating.
The Anti-Corrosion Water Level Sensor with Ball Float Switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or another device. Use them in hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, or whatever your project may be.
read more : What is a Magnetic Float Sensor?

Package Includes:

  •  1 x Magnetic Float Sensor FSH01 (Horizontal)

Sensor Specifications

Sensor Type  Magnetic Float Sensor
Sensor Model  FSH01
Housing Nylon Glass Field
Dimensions  11 x 9 x 5cms
Weight  50 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 4

1. How does a magnetic float sensor work?

  • The 'wet-side' magnet on the float repels the opposing magnet within the 'dry-side' switch mechanism in a strong snap movement, activating the switch. When the liquid level in a tank falls below a certain level, the float pivots downwards, repelling the opposing magnet and activating the switch.

2. How do you test a float sensor?

  • Connect the MultiMeter leads to the wires of the float switch.  The Multimeter should be set to the Ohms.  When the float is in the down position, the MultiMeter should read zero. By lifting the float, the zero will become one.

3. What is a magnetic float level sensor?

  • Magnetic float level sensors are used for level detection of liquids in all types of tanks. They are perfectly suited for use in condensate tanks, base tanks, storage tanks or to provide an alarm for low levels of lubricating oils or fuels.

4. Where can the Magnetic float level Sensor be used?

  • The Anti-Corrosion Water Level Sensor with Ball Float Switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or another device. Magnetic float level sensors can be used in hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, and heating.
