M5StickC Digital to Analog Convertor Hat MCP4725

M5StickC Digital to Analog Convertor Hat MCP4725

Out of stock

1

Rs. 484
Rs. 589 Rs. 484
Sale Sold out 18% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 23 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Output: 0～3.3V
  • Software Development Platform: Arduino, UIFlow(Blockly, Python)
  • MCP4725
    • 12-Bit Resolution
    • External A0 Address Pin
    • Normal or Power-Down Mode
    • Fast Settling Time of 6 μs (typical)
    • External Voltage Reference (VDD)
    • Rail-to-Rail Output
    • Low Power Consumption
    • Single-Supply Operation: 2.7V to 5.5V
    • I2C Interface: address 0x60
    • Extended Temperature Range: -40°Cto+125°C
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection

5StickC Digital to Analog Convertor Hat MCP4725

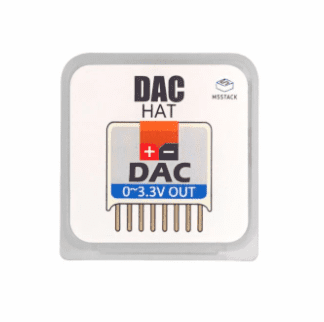

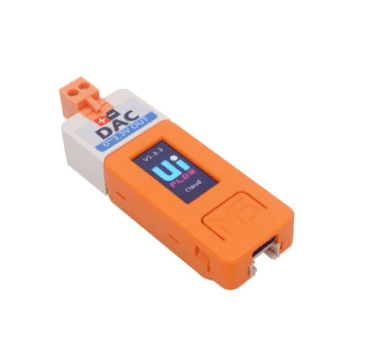

Digital to Analog Convertor HAT is also a type of C-HAT specifically design for the M5StickC controller. Same as the Digital to Analog Convertor unit, this is a voltage output Digital to Analog Convertor converter for stickc. It can generate a voltage of 0～3.3V.

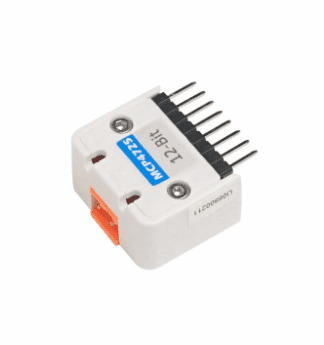

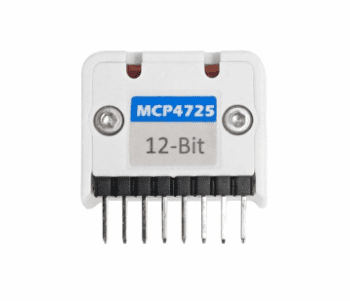

Packed with a Digital to Analog Convertor chip MCP4725, which is low-power, high accuracy, single-channel, 12-bit buffered voltage output Digital-to-Analog Converter with a non-volatile memory (EEPROM). Its onboard precision output amplifier allows it to achieve rail-to-rail analog output swing.
The Digital to Analog Convertor input and configuration data can be programmed to the non-volatile memory (EEPROM) by the user using the I2C interface command. I2C address: 0x60

Applications:

  • Set Pointor Offset Trimming
  • Sensor Calibration
  • Closed-Loop Servo Control
  • Low Power Portable Instrumentation
  • PC Peripherals
  • Data Acquisition Systems

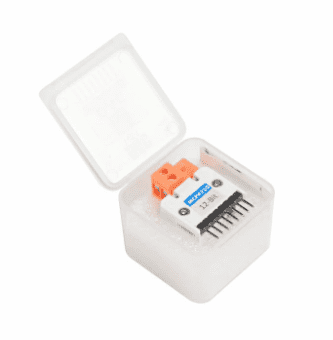

Package Includes:

1x Digital to Analog Convertor HAT

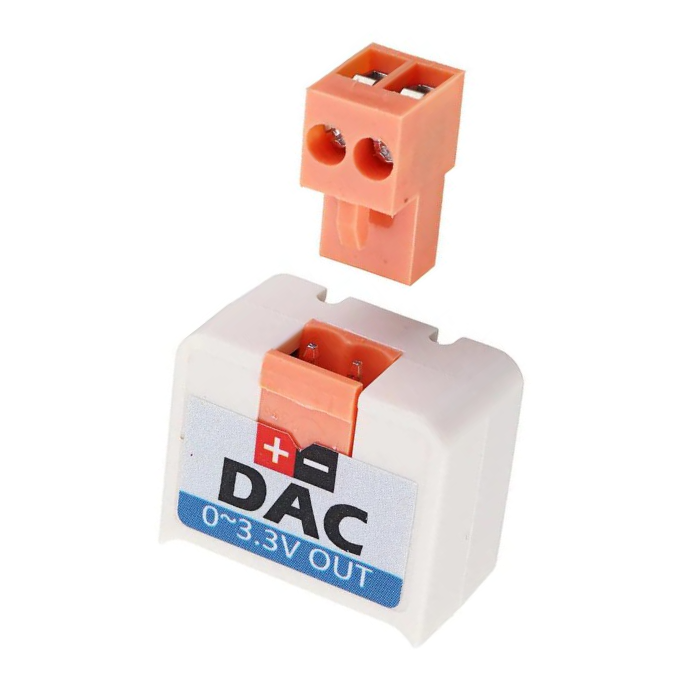

1x 2 Pin 3.96 Pitch Terminal

Specifications:

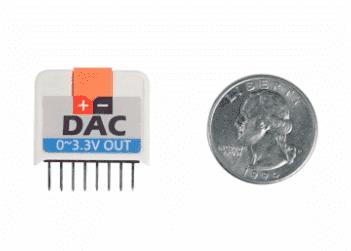

Dimensions
 24 x 25 x 13mm
Weight 19gm
