M5Stack Unit Cam Wi-Fi Camera (OV2640)
Couldn't load pickup availability

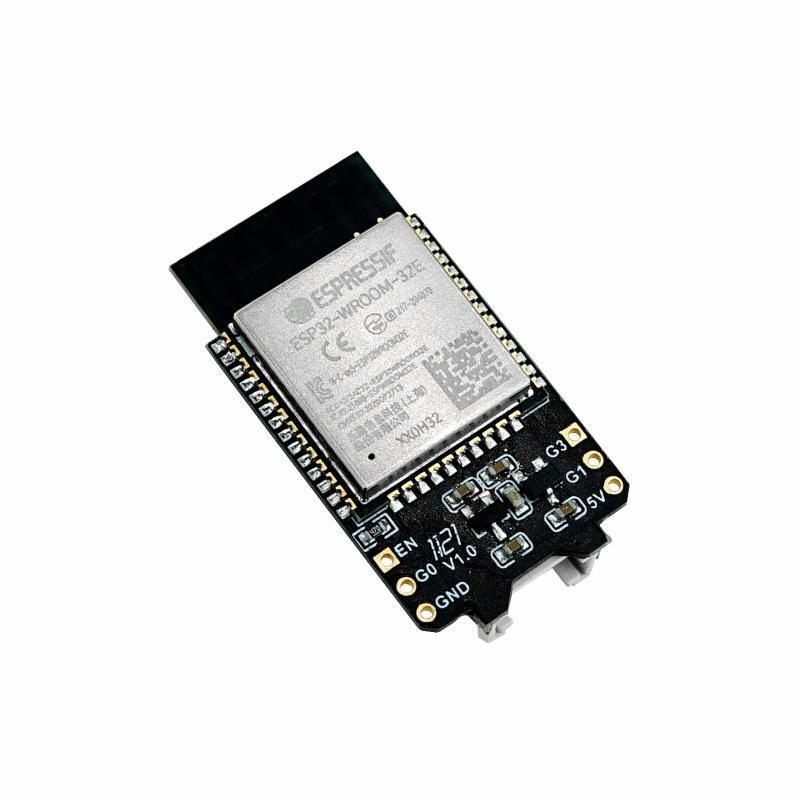

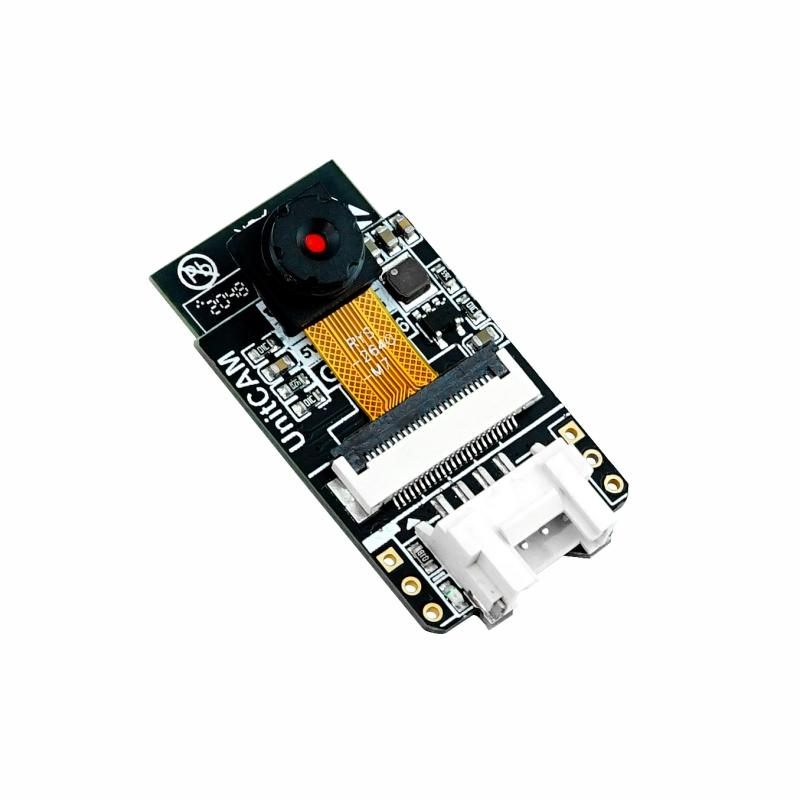

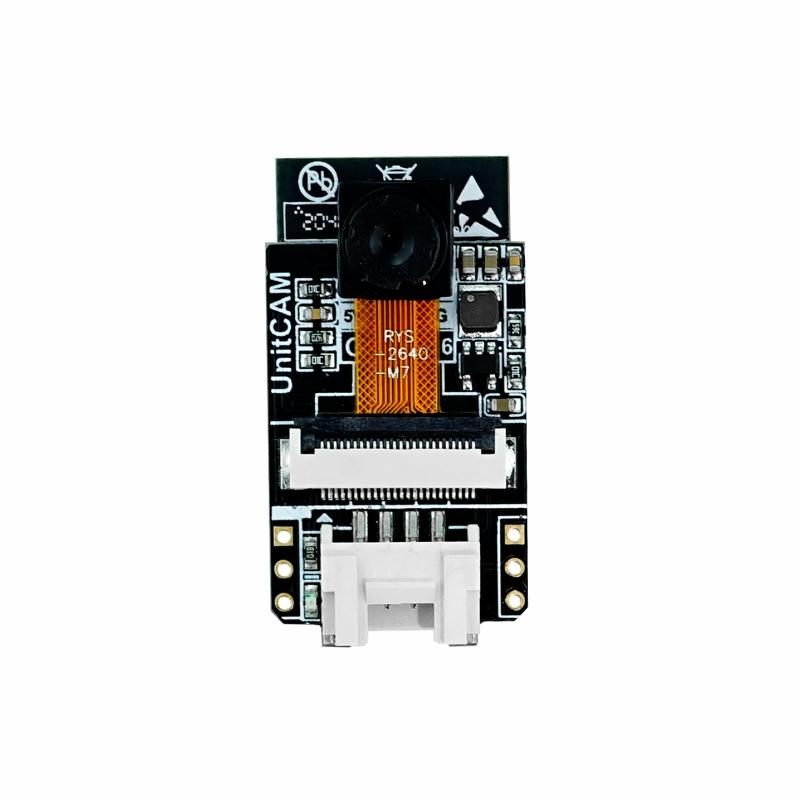

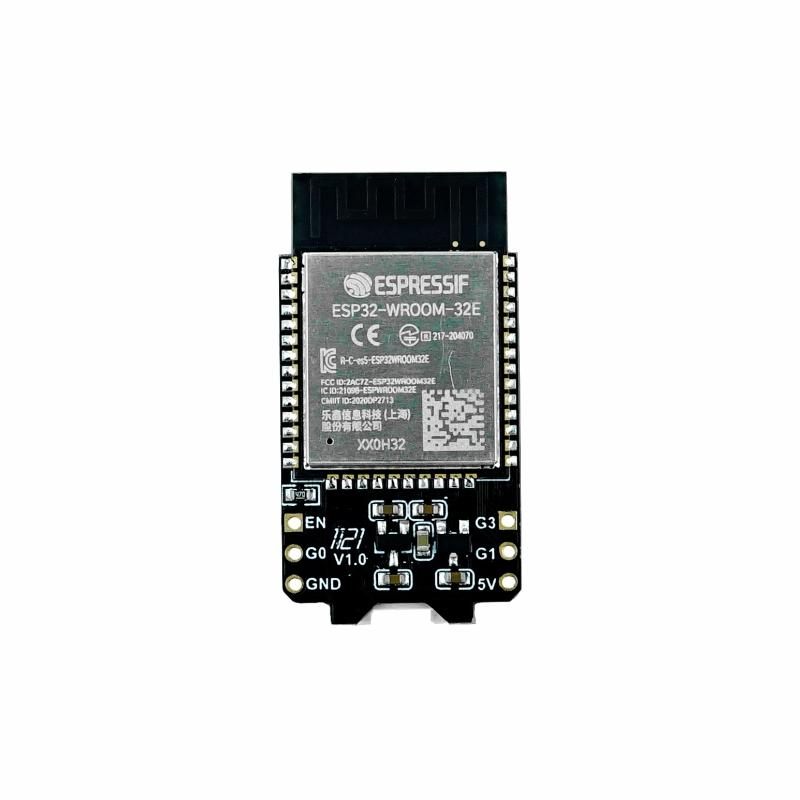

Unit CAM M5 launched a very cost-effective Wi-Fi camera, using ESP32-WROOM-32E control core + 2MegaPixel image sensor (OV2640) solution on the hardware, using the most simplified design, no extra peripherals. The factory software integrates image transmission firmware, provides image data acquisition, image parameter (white balance, exposure, gain, size, and other attributes) adjustment interface, users can directly acquire image data through UART or Wi-Fi, and interact with the camera. Support UIFlow graphical programming call, realize zero development, out-of-the-box user experience. The compact design and cost performance are suitable for various wireless camera application scenarios.
1 x M5Stack Unit Cam
| Flash | 4M |
| Firmware default communication method | UART: 115200bps 8N1 |
| Camera | OV2640 |
| Maximum resolution | 2MegaPixel |
| Unit CAM firmware default picture transfer rate | 12fps |
| OV2640 supports output format | YUV(422/420)/YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data |
| OV2640 supports the maximum image transfer rate | UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps |
| DFOV | 66.5° |
| Dimensions |
45 x 20 x 12mm |
| Weight | 5.3gm |
