M5Stack COM.NB-IoT Module (SIM7020G) with antenna
M5Stack COM.NB-IoT Module (SIM7020G) with antenna
Out of stock
Couldn't load pickup availability

Free shipping on Orders Above Rs 499/-
Fast Delivery

Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards

Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Stackable design
- Support low power consumption mode
- Strong signal access capability
- Independent external power supply
- AT command control
- SIM card type: MicroSIM
- Status signal: two LED indicators
- External antenna: SMA antenna
- Serial communication: UART 115200bps
- Data transmission speed: Upload:150Kbps Download:126Kbps
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection |
M5Stack COM.NB-IoT Module (SIM7020G) with antenna
COM. NB-IoT is a stackable multi-band NB-IoT wireless communication module with a built-in SIM7020G communication module. The module supports PSM and eDRX low power consumption modes.
The COM.NB-IoT module has a wide coverage signal. Compared to GSM, NB-IoT has a strong gain, which also enables the product to have wireless communication capabilities in locations such as basements.

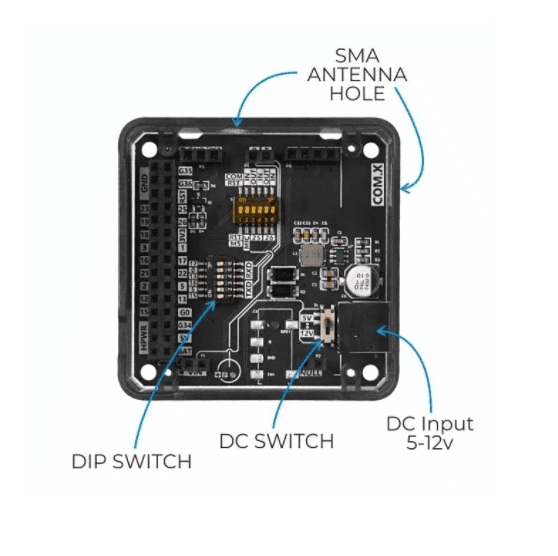

The module has a DC power input and can provide a 5V-12V power supply through an external power supply. In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. The SIM7020G module is the optimal solution for low latency, low power consumption, and low throughput applications. It is very suitable for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and ride-sharing.
Note: The module base has a DC power input interface. Please strictly follow the input range (5-12V) to prevent damage to the module when using this interface to connect to the power supply. The internal power DIP switch can adjust the voltage level of the internal terminal VIN to adapt to different modules.
Applications:
- Smart meter
- Smart parking
- Municipal management
Package Includes:
1x COM.NB-IoT module
1x SMA antenna
Specifications:
Frequency band | B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85 |
Network protocol | TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/ NTP/PING/LWM2M/COAP/MQTT/MQTTS |
Communication | UART 115200bps |
DC interface specifications | 5.5mm |
Dimensions | 54.2 x 54.2 x 13.2mm |
Weight | 75gm |
