M5 Stick Microphone Unit (LM393)

M5 Stick Microphone Unit (LM393)

Out of stock

1

Rs. 417
Rs. 516 Rs. 417
Sale Sold out 19% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 24 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Audio record/sample
  • Built-in microphone preamplifier MAX4466
  • Omnidirectional, 52dB sensitivity
  • Digital output and analog signal
  • Built-in dual independent precision voltage comparator and adjustable resistor, threshold adjustable
  • Development platform: Arduino, UIFlow (Blocky, Python)
  • HY2.0-4P interface
  • 2X LEGO™ compatible holes
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection

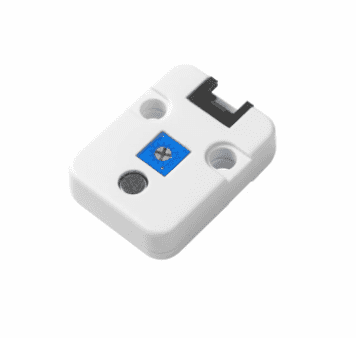

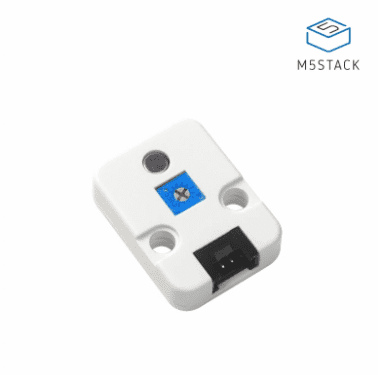

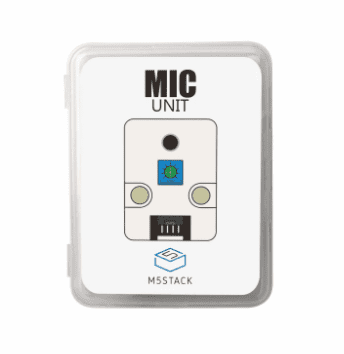

M5 Stick Microphone Unit (LM393)

The microphone unit is a sound sensor with a built-in omnidirectional electret microphone.

The signal is amplified and output by microphone preamplifier max4466. The amplifier can effectively suppress power supply noise and common mode noise, and the output signal has high sound recovery and can be used in noisy environments.

The unit can not only output analog signals, but also output digital level signals. The built-in LM393 double voltage comparator can set the comparison voltage threshold by adjusting 10K adjustable resistance.

The sensor is very suitable for acoustic electrical conversion, audio recording/sampling, FFT acoustic feedback, voice switch, and other projects.

Applications:

  • FFT Spectrum Display
  • Audio Sample / Record
  • Voice Switch

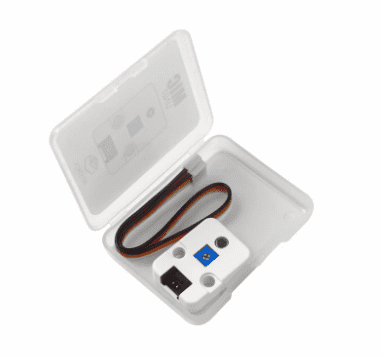

Package Includes:

1x Microphone Unit
1x Grove Cable

Specifications:

Microphone sensitivity / SNR 52dB/40dB

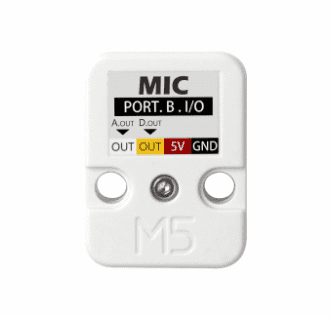

Output Signal Analog / digital
Input Voltage 5V

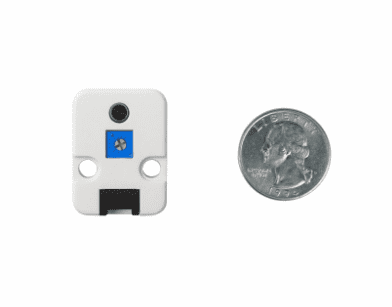

Dimensions
 32 x 24 x 8mm
Weight 16gm
