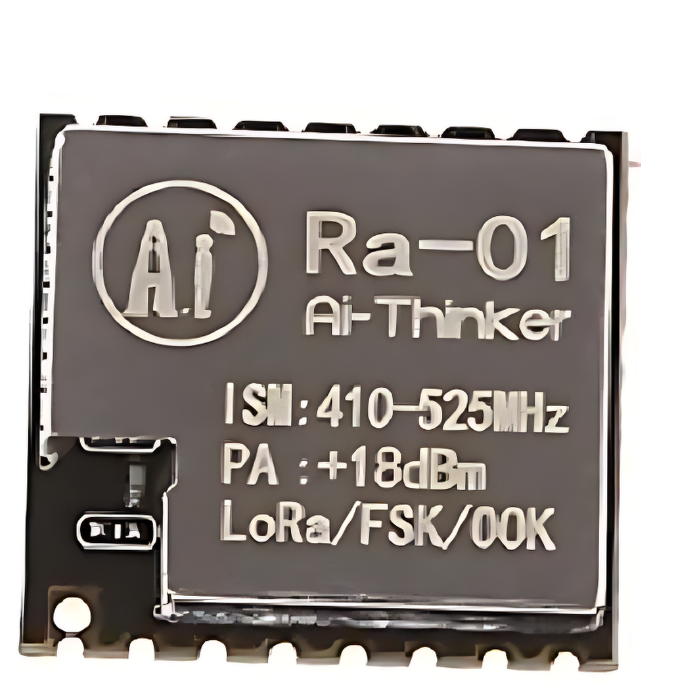

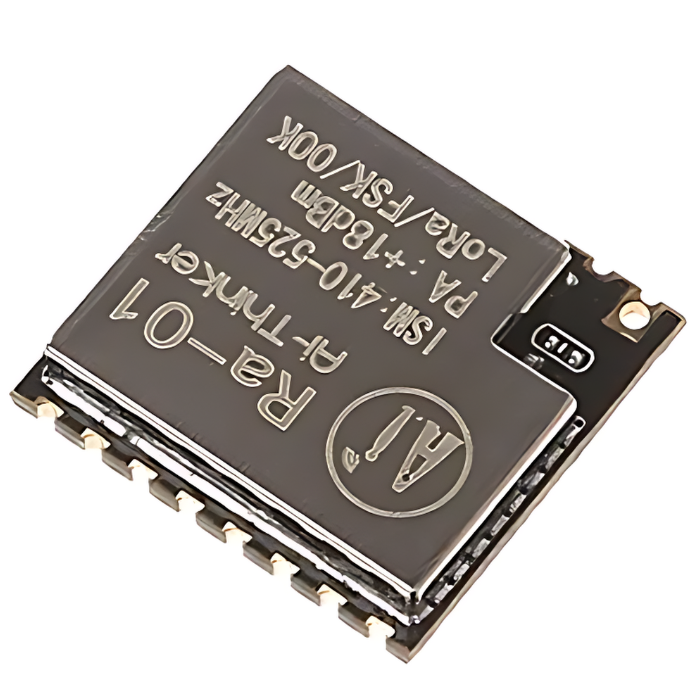

LoRa-Ra-01 RF Transceiver Module
LoRa-Ra-01 RF Transceiver Module
Low stock: 2 left
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Long Range: 433MHz frequency for extended communication distance.
- Versatile Applications: Suitable for smart meters, home automation, alarms, industrial monitoring, and irrigation systems.
- Advanced Modulation: LoRaTM technology with -148dBm sensitivity, +20dBm power output, and up to 300kbps bitrate. Supports FSK, GFSK, MSK, GMSK, LoRaTM, and OOK modulation.
- Efficient Design: Half-duplex SPI communication, CRC 256 bytes data engine, automatic RF signal detection, CAD mode, and super high-speed AFC. Compact SMD package with metal shielding.
- Reliable Performance: High-quality materials for optimal performance in various conditions. Ideal for IoT and wireless applications.
- User-Friendly: Easy to use and integrate, simplifying communication challenges in IoT and wireless projects.
LoRa-Ra-01 RF Transceiver Module
LoRa-Ra-01 RF Transceiver Module is the perfect solution for long-range communication projects. It is equipped with advanced features like stable RF output power, LoRaTM Modulation technology, and versatile SPI communication.
This module is suitable for various applications, including Automated Meter Reading, Home and Building Automation, Wireless Alarm and Security Systems, Industrial Monitoring and Control, and Long-range Irrigation Systems.
LoRa-Ra-01 RF Transceiver Module ensures the highest quality and reliability. Its efficient design includes Half-duplex SPI communication, CRC 256 bytes data engine, and automatic RF signal detection. The module is user-friendly, easy to use, and maintain, making it an ideal choice for both hobbyists and professionals.
Features:
- LoRaTM spread spectrum communication
- +18dBm – 10mW. Stable RF output power when the input voltage changed
- Half-duplex SPI communication
- Programmable bit rate can reach to 300kbps
- Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode
- 127dB RSSI wave range.
- Automatically detect RF signal, CAD mode, and super high-speed AFC
- With CRC 256 bytes data engine
- Half hole (castellated hole) SMD package
- With metal shielding case
Applications:
- Automated Meter Reading.
- Home and Building Automation.
- Wireless Alarm and Security Systems.
- Industrial Monitoring and Control.
- Long-range Irrigation Systems.
Package Includes:
- 1 x LoRa-Ra-01 RF Transceiver Module
Specifications:
Package/Case |
SMD-16 |
---|---|
Spectrum range |
410-525MHz |
Programmable bit Rate |
UP to 300Kbps |
Frequency Range |
410-525 MHz |
Input Supply Range (VDC) |
2.5 ~ 3.7 |
Transmit Power (dBm) |
18±1 dBm (Max) |
Operating Temperature (°C) |
-10 to 85 |
