Seeed Studio
LoRa-E5 (STM32WLE5JC) Module
LoRa-E5 (STM32WLE5JC) Module
Out of stock
Regular price
Rs. 1,175
Regular price
Rs. 1,441
Sale price
Rs. 1,175
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Ultra-low Power Consumption: as low as 2.1uA sleep current (WOR mode)
- High Performance: TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
- Long Distance Use: 158dB link budget
- Wireless Connectivity: Embedded LoRaWAN® protocol, AT command, support global LoRaWAN® frequency plan
- Worldwide Compatibility: wide frequency range; EU868/US915/AU915/AS923/KR920/IN865
- Great Flexibility: For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.
Related Tags
LoRa-E5 (STM32WLE5JC) Module

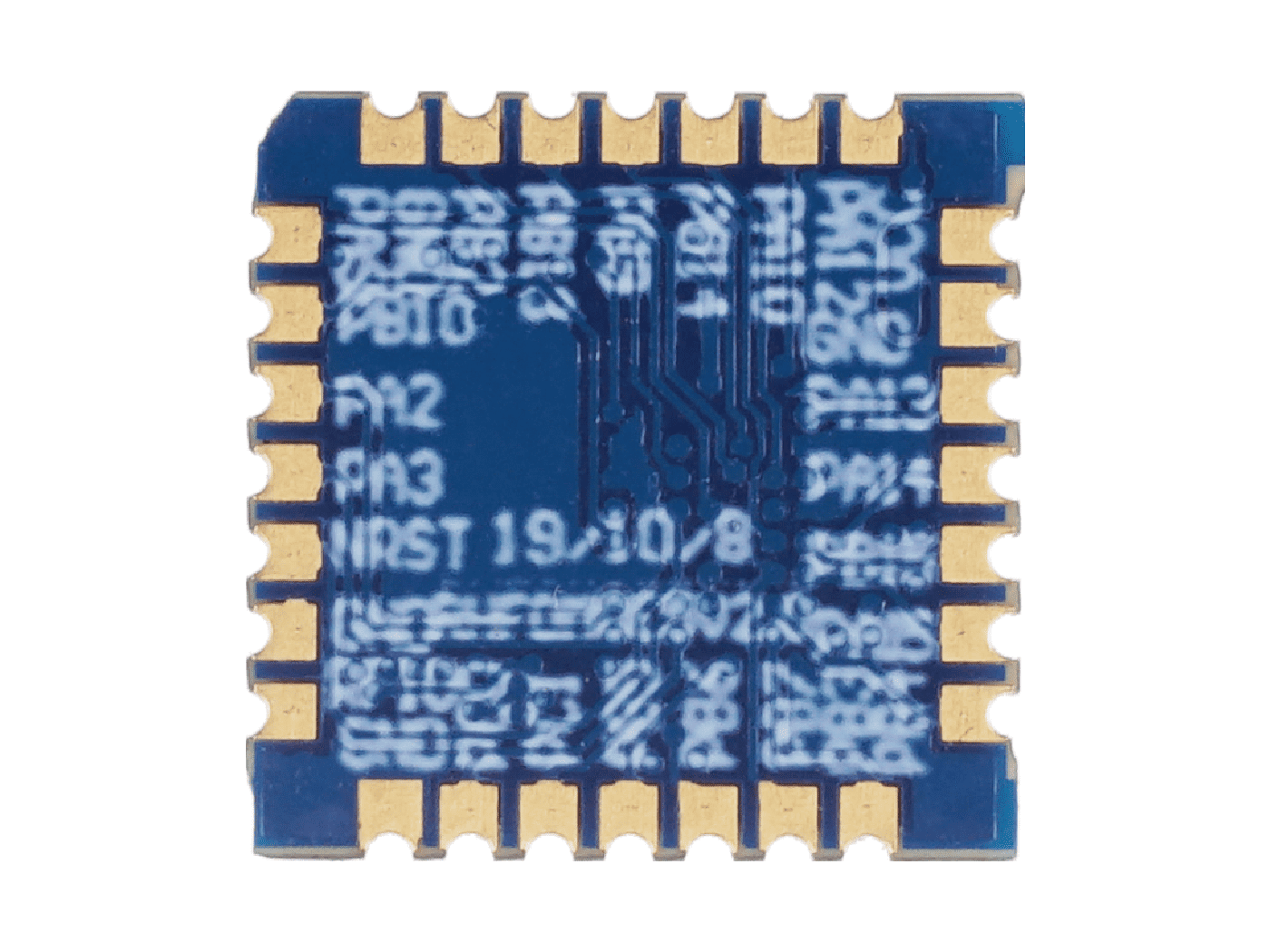

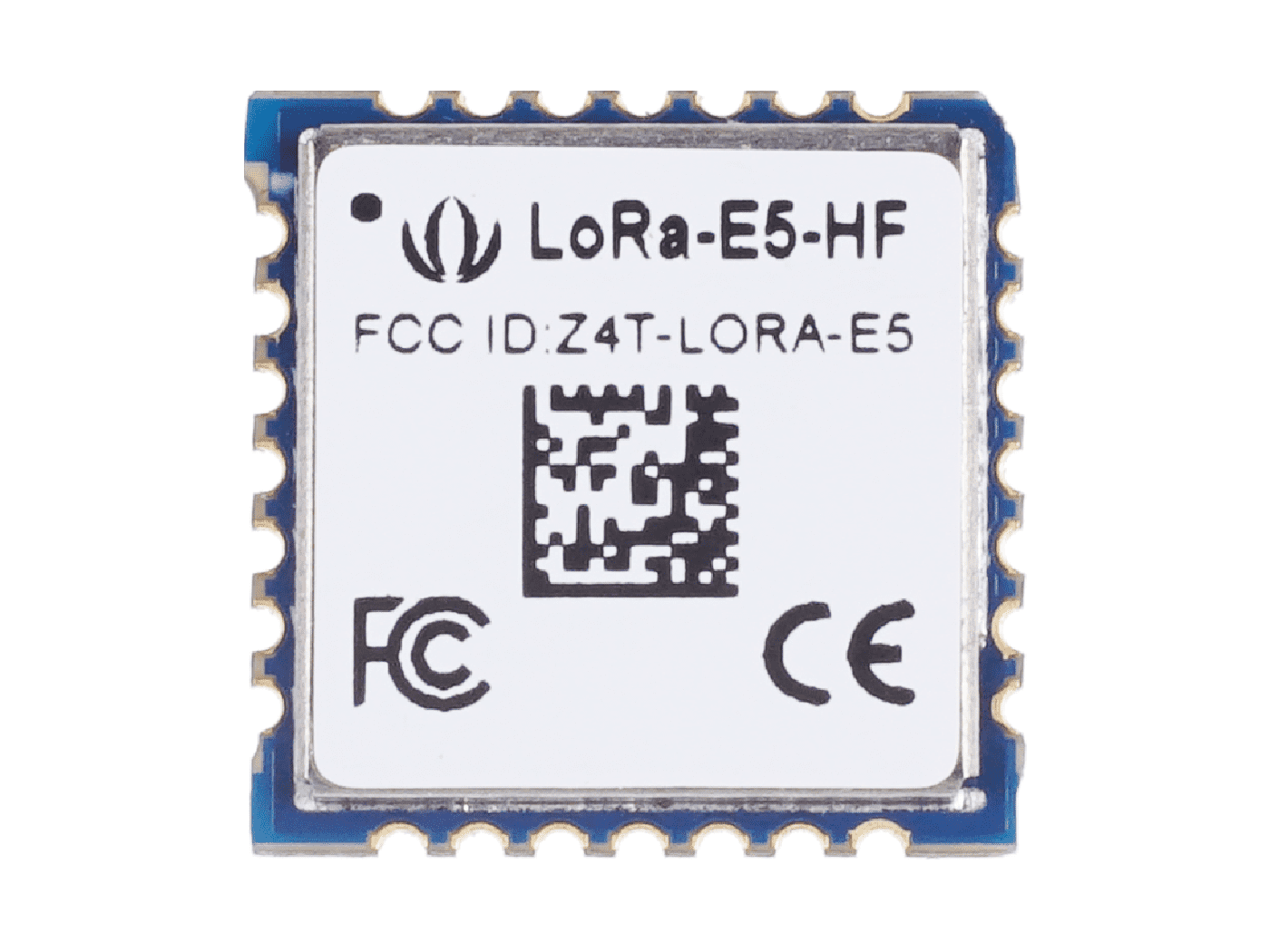

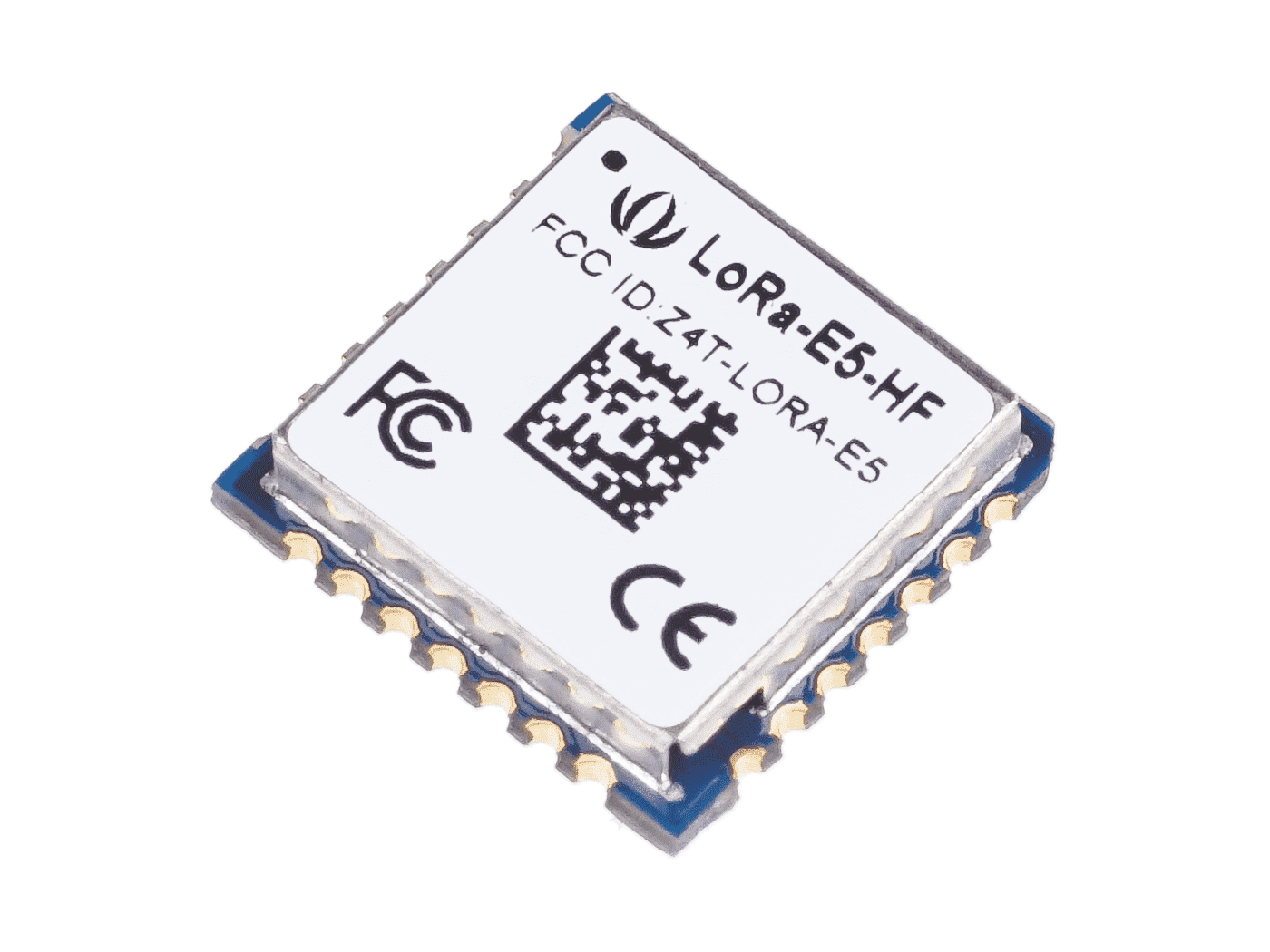

LoRa-E5 is a low-cost, ultra-low power, extremely compact, and high-performance LoRaWAN Module designed by Seeed Technology Co., Ltd. It contains ST system-level package chip STM32WLE5JC. This module is also embedded with ARM Cortex M4 ultra-low-power MCU and LoRa SX126X and therefore supports (G)FSK mode and LoRa.
The previous versions of the LoRaWAN module all require additional use of MCU (Microcontroller) to run the application code. Now, you can directly and immediately put the LoRa-E5 STM32WLE5JC Module into use to complete this process without the hustle of additional accessories. With the Stamp Hole form factor, LoRa-E5 enables you to integrate this module on your device’s mainboard conveniently. Thanks to the innovative design, LoRa-E5 has a comparatively lower cost than other LoRaWAN modules.
Applications:
LoRa-E5 LoRaWAN® module is highly suitable for long-distance, ultra-low-power applications such as smart agriculture, smart city, wireless meter reading, sensor networks, wireless communication, and other low-power wide-area IoT scenarios.
This LoRa E5 module is designed with industrial standards, hence it's highly suitable to be used in designing industrial IoT products, with a wide working temperature at -40℃ ~ 85℃.
Package Includes:
1 x LoRa-E5 (STM32WLE5JC) Module
Specifications:
| Power supply | 3.3v |
| MCU | ARM Cortex M4 |
| Storage | 256KB Flash, 64KB SRAM |
| Dimension(LxWxH) | 1.2 x 1.2 x 0.2cm |
| Weight(Gm) | 100gm |
