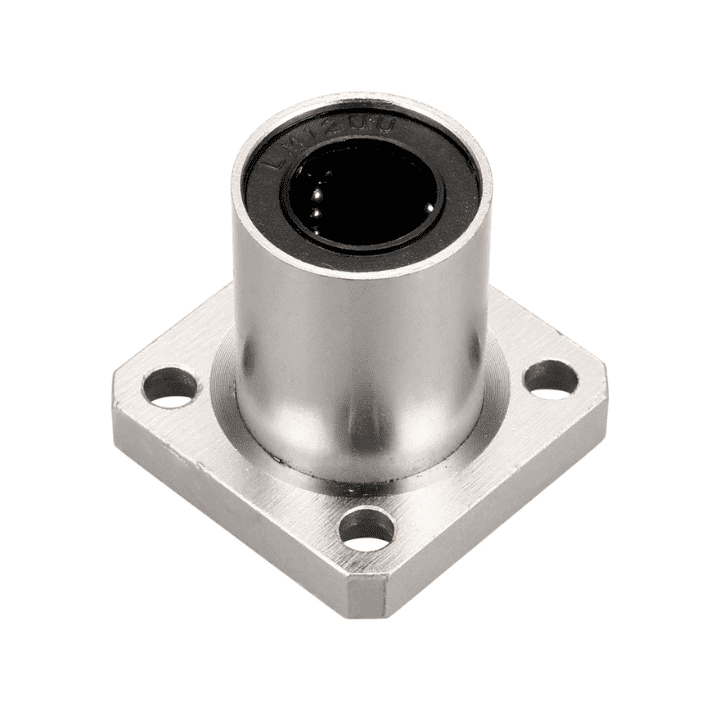

Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer

Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
  • Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
  • Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
  • Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
  • Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze
  • Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer-Robocraze

Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer

Regular price
Rs. 99
Sale price
Rs. 99
Regular price
Rs. 150
You save Rs. 51
34% off
You save Rs. 51
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • This is a linear motion system produced at low cost for infinite travel with cylindrical shafts
  • Small load due to the contact between the load ball and the bearing point
  • The steel ball rotates with very little frictional resistance, so that it can obtain high-accuracy and movement
  • The load ball and the hardened drive shaft are in point contact and allow a small load. However, when moving in a straight line, the frictional resistance is minimal, the accuracy is high, and the movement is fast.
  • Widely used in electronic machinery, power tools, 3D printing machinery, engraving machines and automation equipment, CNC equipment, etc.

Linear Bearing LMK12UU 12mm Rod Square Flange Bearing for 3D Printer

It is a linear motion system produced at low cost. It is used for infinite stroke and cylindrical shaft. Because the load ball is in point contact with the shaft, the use load is small. The steel ball rotates with very little frictional resistance, so that it can obtain high-accuracy and movement.

Linear Bearing LMK12UU 12mm Square Flange Bushing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.

The universal Ball Bearings is great for you to replace the damaged Ball Bearings in your devices to improve the efficiency and save energy. Widely used in home appliances, industrial, low noise and high-speed electric motors, construction machinery, automotive components, pumps, and machinery.

Smooth moving, low friction, high rigidity, and long life. Economical, easy to maintain replace.

Package Includes:

  • 1 x Linear Bearing LMK12UU 12mm Rod Square Flange Bearing for 3D Printer

Specifications:

Model LMK12UU
Inner Diameter 12mm
Diameter 21mm
Length 30mm
Mounting Hole Diameter 4.5 x 7.5mm
Ball Circuits 4
