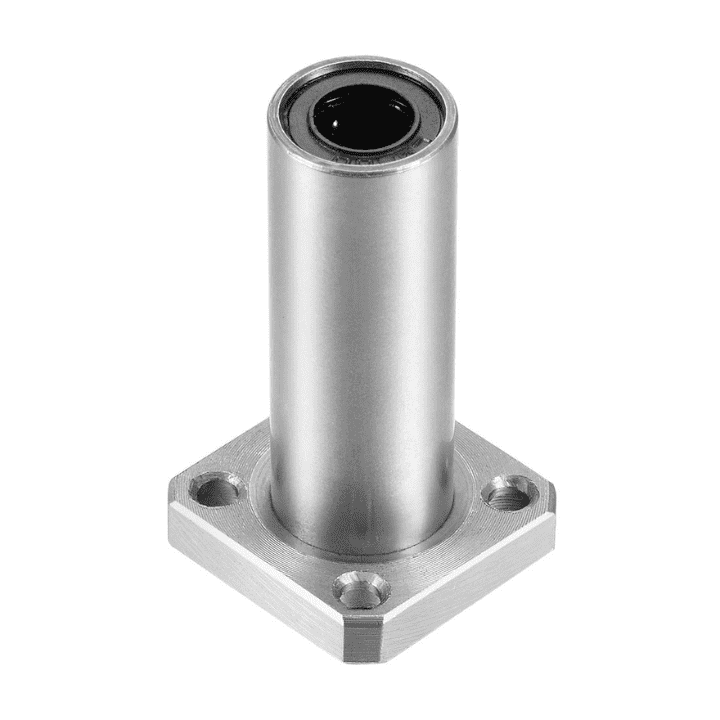

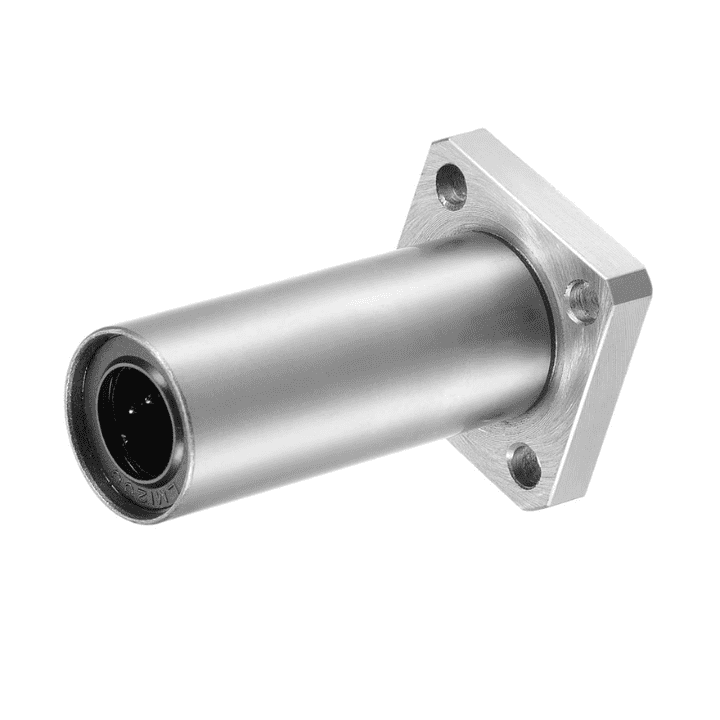

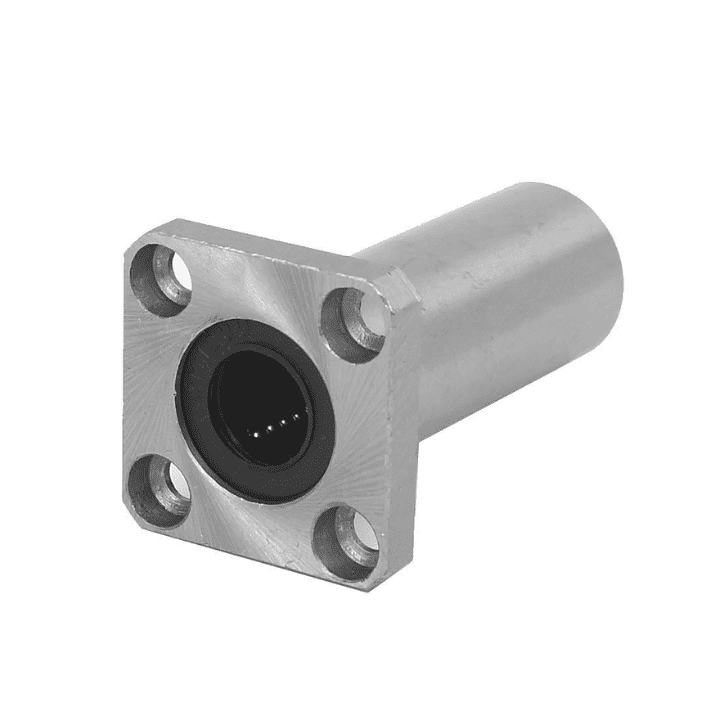

Linear Bearing LMK12LUU 12mm Square Flange Bushing

Linear Bearing LMK12LUU 12mm Square Flange Bushing

Regular price Rs. 223
Regular price Rs. 249 Sale price Rs. 223
Sale Sold out 10% off Best Price Guaranteed
You save Rs. 26
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Linear motion bearings provide freedom of movement in a single direction.
  • Often used in conjunction with cylindrical shaft or rail.
  • The steel ball is in point contact with the shaft and rotates with very little frictional resistance, so as to obtain smooth movement with high precision.
  • Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength.
  • Smooth moving, low friction, high rigidity and long working life

Linear Bearing LMK12LUU 12mm Square Flange Bushing

The Linear Bearing LMK12LUU 12mm Square Flange Bushing is a low-cost linear motion system which equips with the cylindrical shaft. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.

The Bearings gives you very precise, safe and reliable linear motion system. Such linear motion bearings are mostly used in 3D printers and CNC(Computer Numerical Control) machines.

Widely used in home appliances, industrial, low noise and high-speed electric motors, construction machinery, automotive components, pumps, and machinery.

check out : Linear Bearing LMK12UU 12mm Rod Square Flange Linear Bearing for 3D Printer

Applications

  • Replacement of parts of the 3D printer rail unit.
  • Replacement of common machine tool guideway components.
  • Laser (engraving machine) rail set-up and parts replacement
  • Construction and replacement of small planning machine tables, carriers, rails and parts.

Package Includes;

  • 1 x Linear Bearing LMK12LUU 12mm Square Flange Bushing

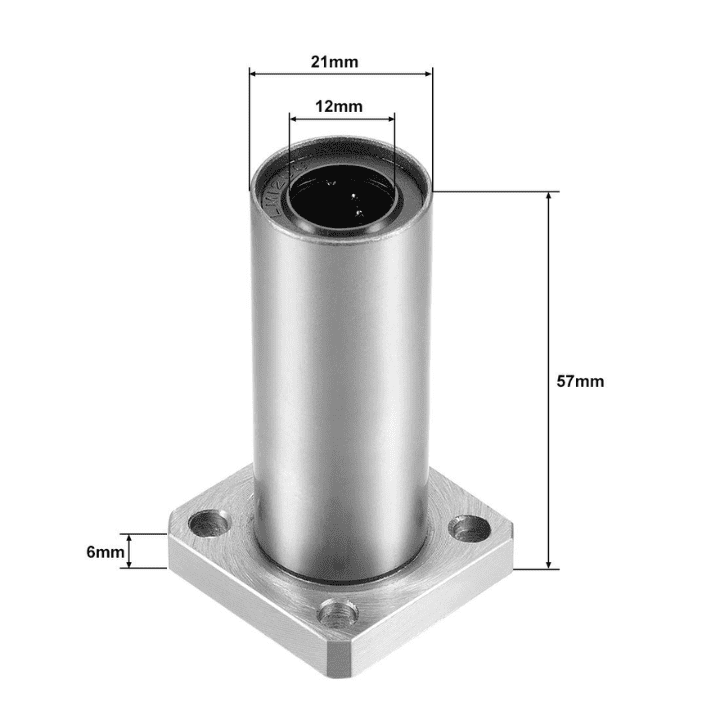

Specifications:

Ball Circuits

4

Color

silver

Length (mm)

57

Model

LMK12LUU

Outer Casing

Chromium Steel

Outer Diameter(mm)

21

Shaft ID(mm)

12

Square Size (mm)

32

Weight (gm)

75
