KY-010 Broken Light Blocking Sensor

KY-010 Broken Light Blocking Sensor

Low stock: 8 left

Regular price Rs. 39
Regular price Rs. 54 Sale price Rs. 39
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 15 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 2 hours and 0 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Photo Interrupter Module Keyes KY-010 for Arduino, will trigger a signal when light between the sensor's gap is blocked.
  • It comes with digital interfaces of the LED, the light-blocking access number 3 sensor interfaces, sensing when the light interrupter.
  • The device senses a key signal, LED lights, otherwise off.
Trust Badge 1 Trust Badge 2 Trust Badge 3

Y-010 Broken Light Blocking Sensor

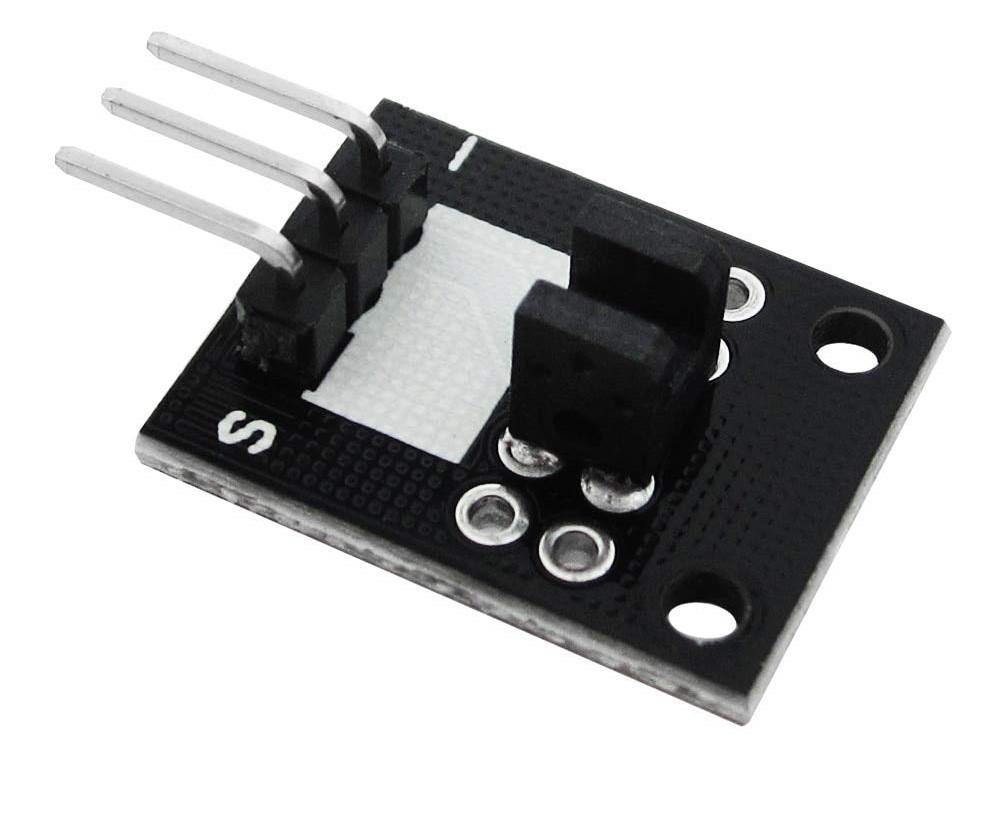

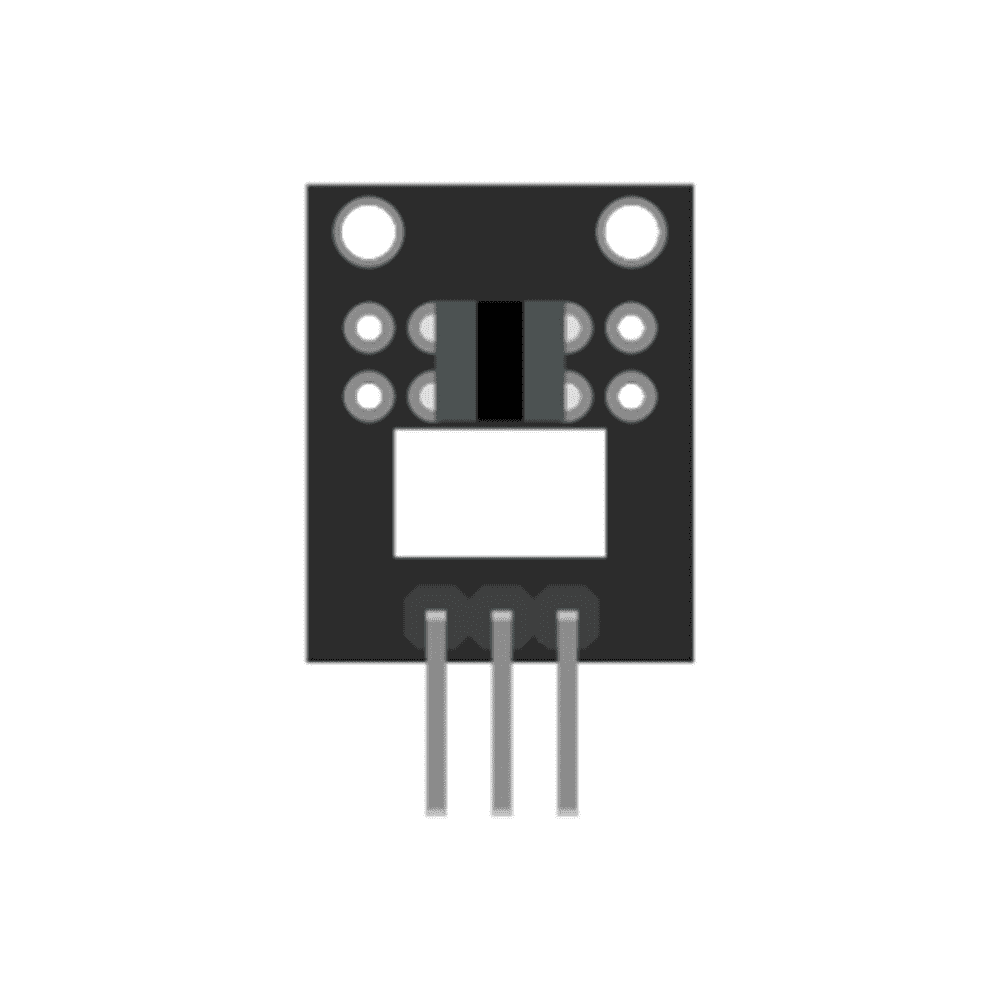

The KY-010 Photo Interrupter module consists of an optical emitter/detector in the front and two resistors (1 kΩ and 33 Ω) in the back. The sensor uses a beam of light between de emitter an detector to check if the path between both is being blocked by an opaque object.

KY010 Sensor Connection Diagram

Connect the power line (middle) and ground (left) to +5V and GND respectively. Connect signal (S) to pin 3 on the Arduino.

- (left) GND
middle +5V
S (right) Pin 3

Package Includes:

  • 1 x KY-010 Broken Light Blocking Sensor

Specifications

Model  KY010
Sensor Type  Broken Light Blocking Sensor
Operating Voltage 3.3 ~ 5V
Dimensions 18.5mm x 15mm
Weight  5 grams
