The 2-CH-CAN-TO-ETH is an industrial-grade 2-channel CAN to Ethernet server designed to facilitate seamless communication between CAN devices and network servers.

It features two CAN ports, one Ethernet port, and a built-in TCP/IP protocol stack, ensuring reliable data transfer between the CAN bus and Ethernet interfaces. With its dual socket design, the device supports CAN to RS485 conversion and CAN repeater functions, which help extend the communication distance.

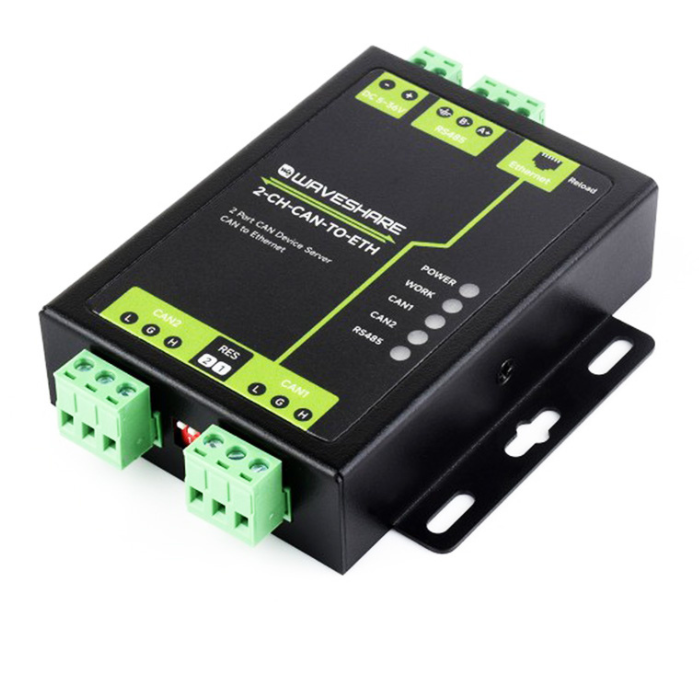

The unit is housed in a rugged, industrial-grade metal case, offering durability and easy installation with wall-mount support.

Perfect for applications like industrial automation systems, building automation, and power monitoring, it is also ideal for expanding the range of CAN bus networks and improving charging station management, enabling real-time monitoring and status control of each station.

Features:

• Upgraded hardware protection, including better protection for CAN, serial ports, Ethernet ports, and power supply, making it ideal for more demanding industrial settings.
• Upgraded ARM kernel, industrial-grade operating temperature range, upgraded TCP/IP protocol stack, stable and dependable.
• 10/100Mbps Ethernet port; supports Auto-MDI/MDIX.
• Support for CAN ID filtering, several filtering methods, safer and easier.
• Supports two-channel SOCKET connections at a single port.
• CAN baud rate: 10K-1Mbps; supports BASIC and LOOPBACK working methods.
• Supports static IP addresses or DHCP for automatic IP address assignment and can be queried inside the network via the UDP broadcast protocol.
• Reload button, one key to restore the default setting, no fear about incorrect settings.
• Reload button, one key to restore the default setting, no fear about incorrect settings.
• RJ45 with Link/Data indicator lights and an external isolation transformer for the network connector that provides 1.5KV electromagnetic isolation.
• MAC address used only globally (starting with D8-B0-4C).
• Support for network-based firmware upgrades, making firmware updates more convenient.
• Modify the webpage port (default: 80).
• Supports the keepalive system, which detects dead connections and other irregularities and allows for speedy reconnection.
• Account and password authentication are supported for increased security; this is applicable to webpage login and network settings.
• The power interface accepts 5.08-2 wire connections and supports a wide voltage input (5–36V).
• CAN relay functionality.
• Supports CAN up to 485.

Package Includes:

• 1 x Industrial Grade 2-Ch CAN to Ethernet Server - 2-Ch CAN + RS485 + Ethernet Port
